Rusak
multicaliber - 1x (non magnified) - Russia - commerical






The Rusak is a simple red dot that was produced in Russia by the Kazan Optical-Mechanical Plant (KOMZ) during the early 90s. Not much information can be found regarding it. It can be found in both a domestic Russian version (РУСАК) and in an export model (Rusak) which are identical in all but name. While it is possible production started in the late 80s, all known sights have Russian style commerical serial numbers with a production year prefix in the 1992 to 1994 range bracket. Examples of the sights with no serial number have been found. While the sight is similar in layout to the Kobra, another Russian commerical red dot, the author has no evidence of the Rusak being used by militaries. The sight is sometimes referenced to as the PRU 452 on the internet. It is unclear where this name originates from. The sight is powered by two AA batteries.












Images

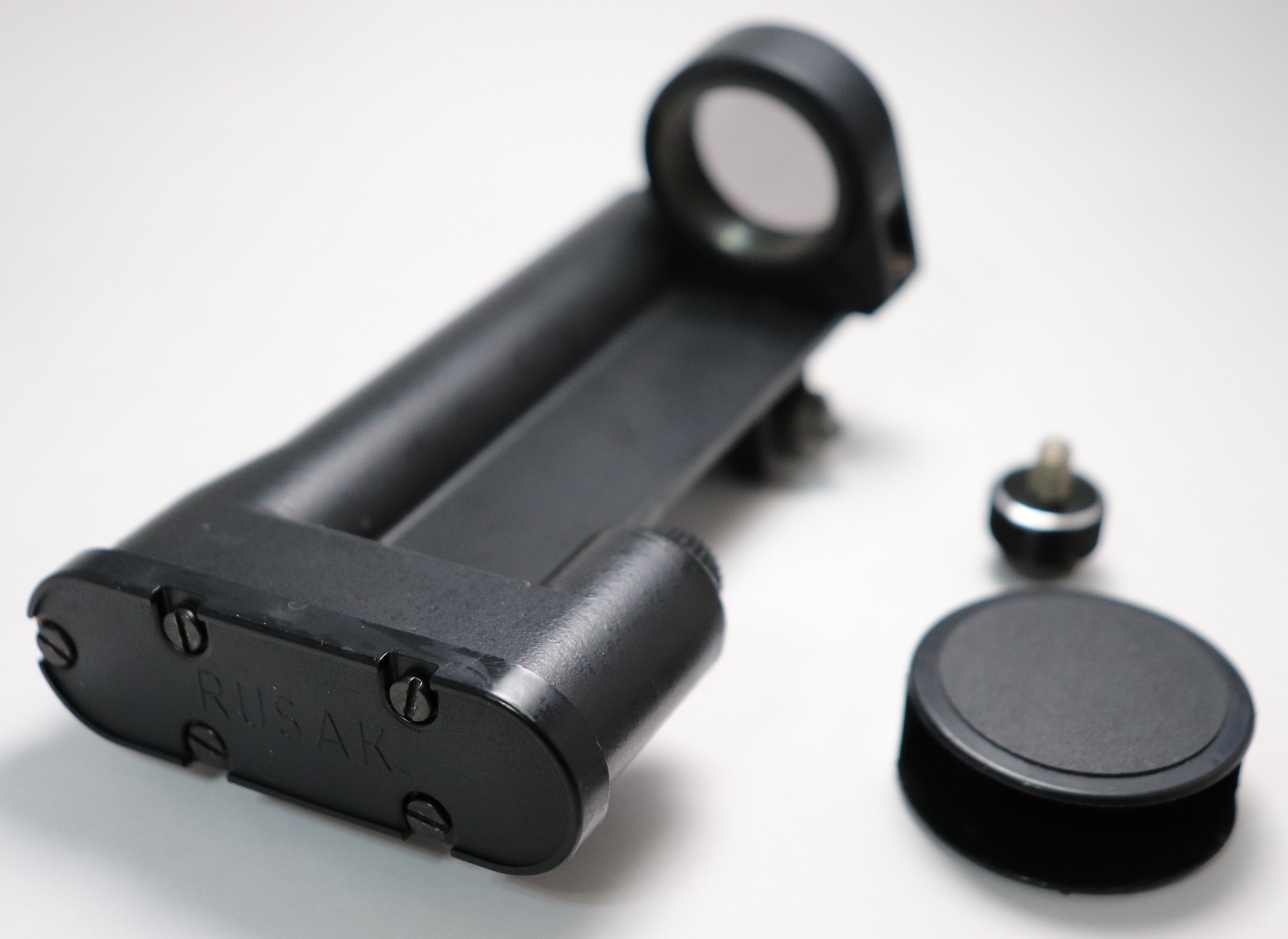

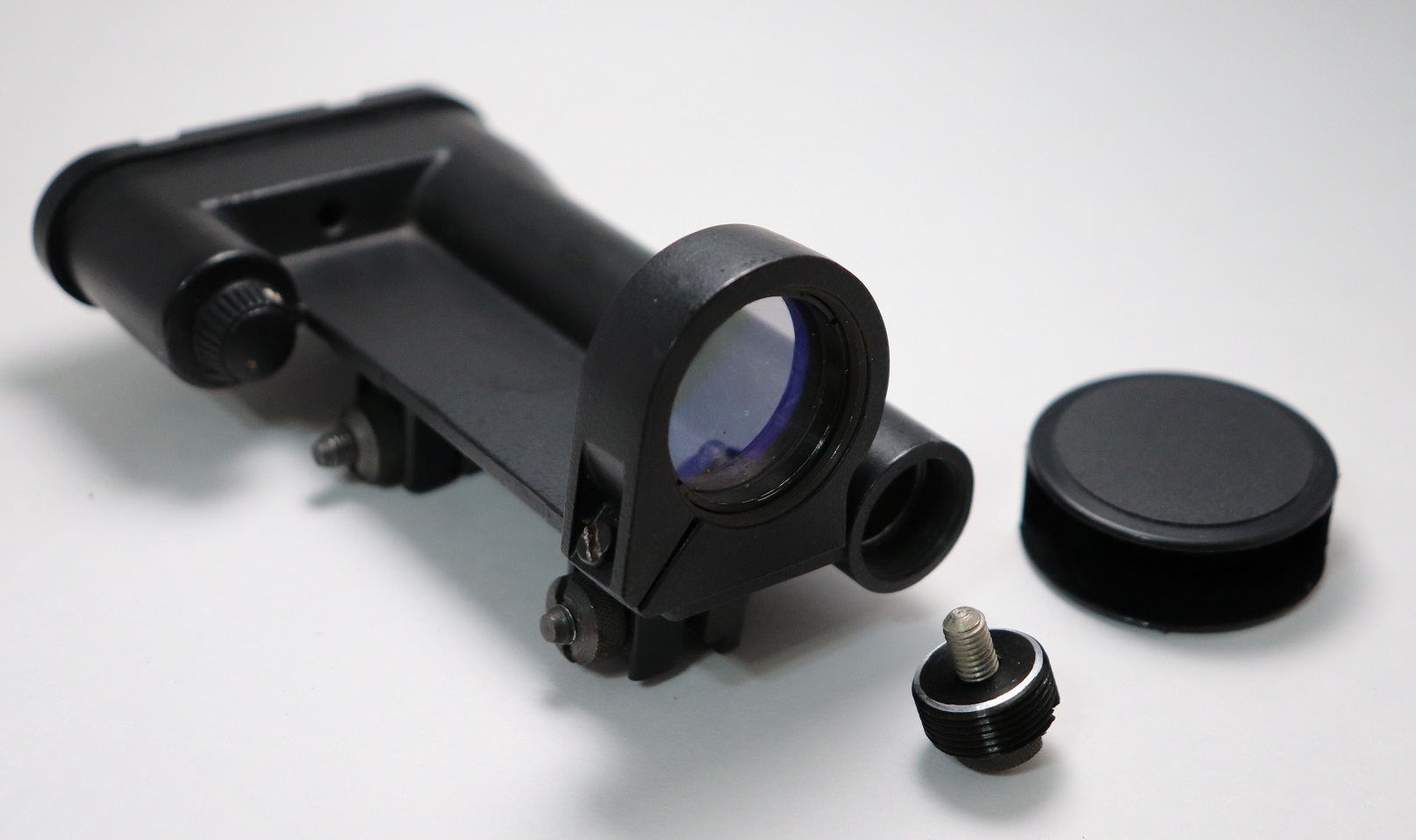

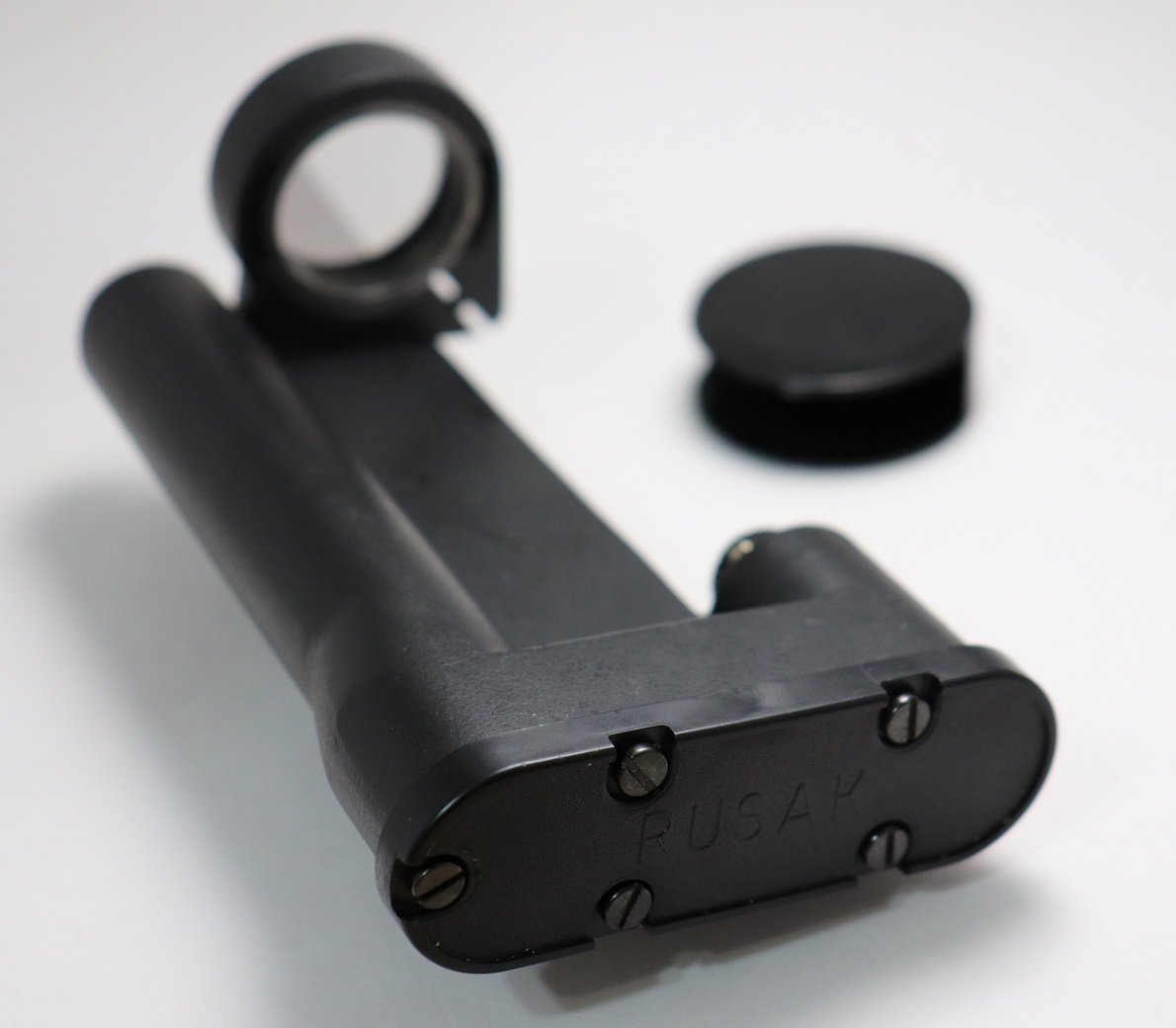

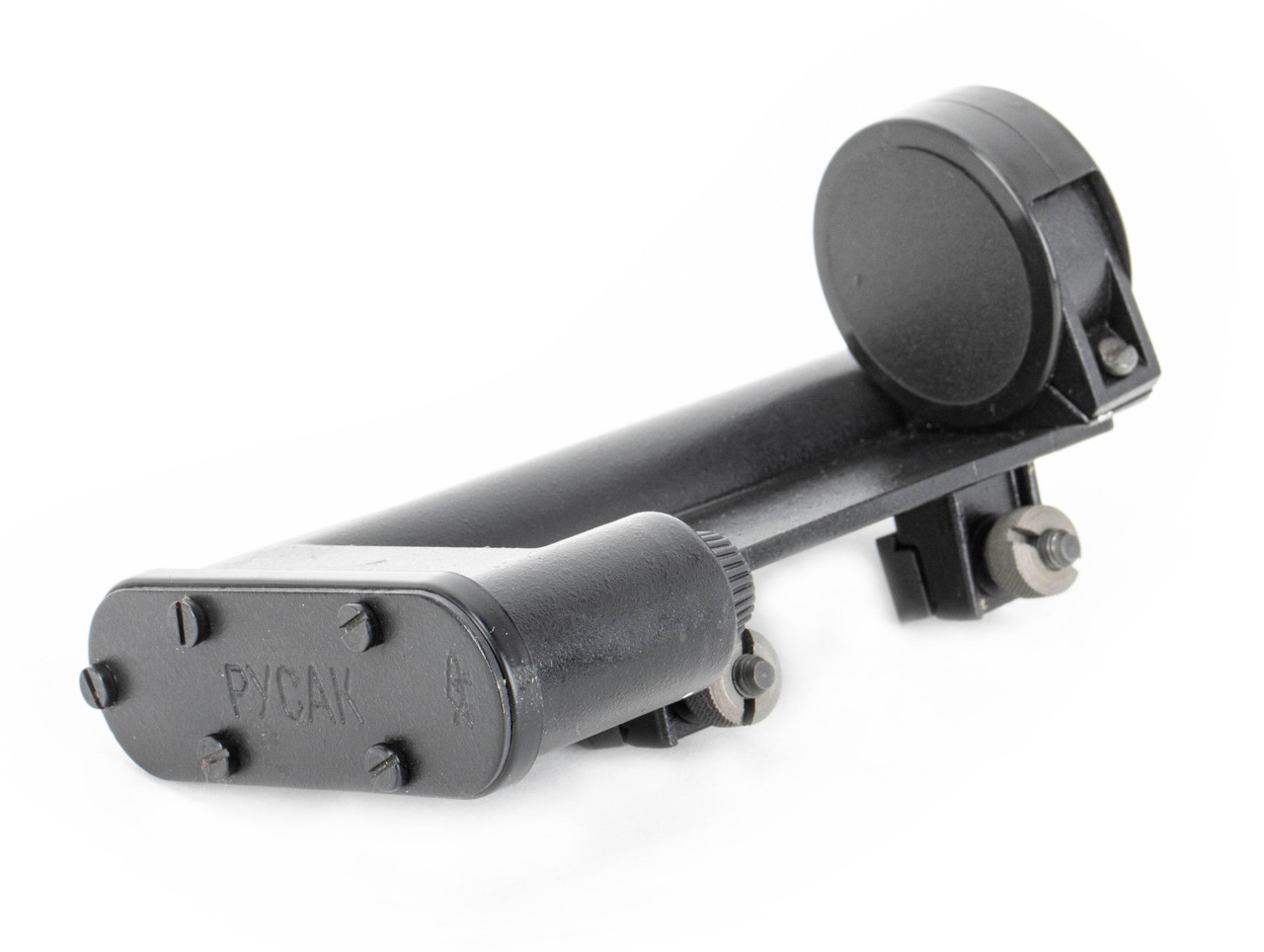

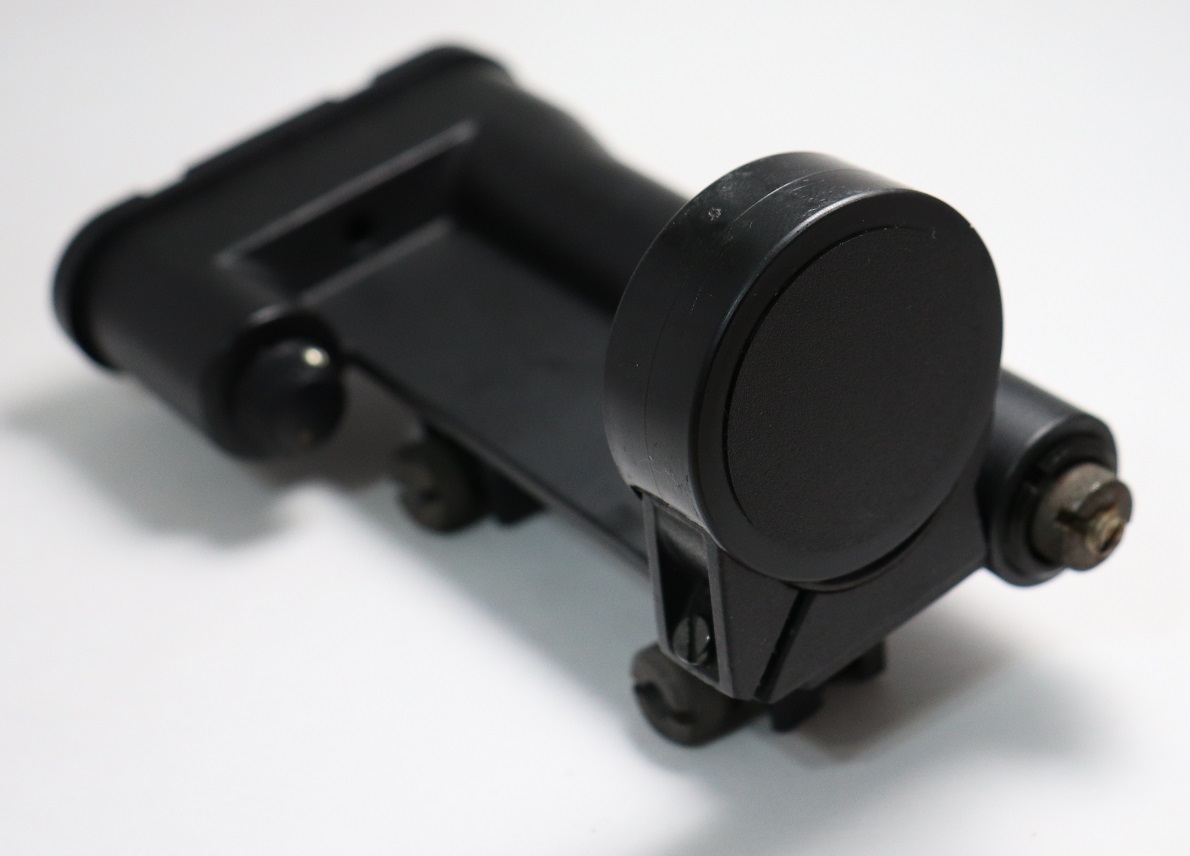

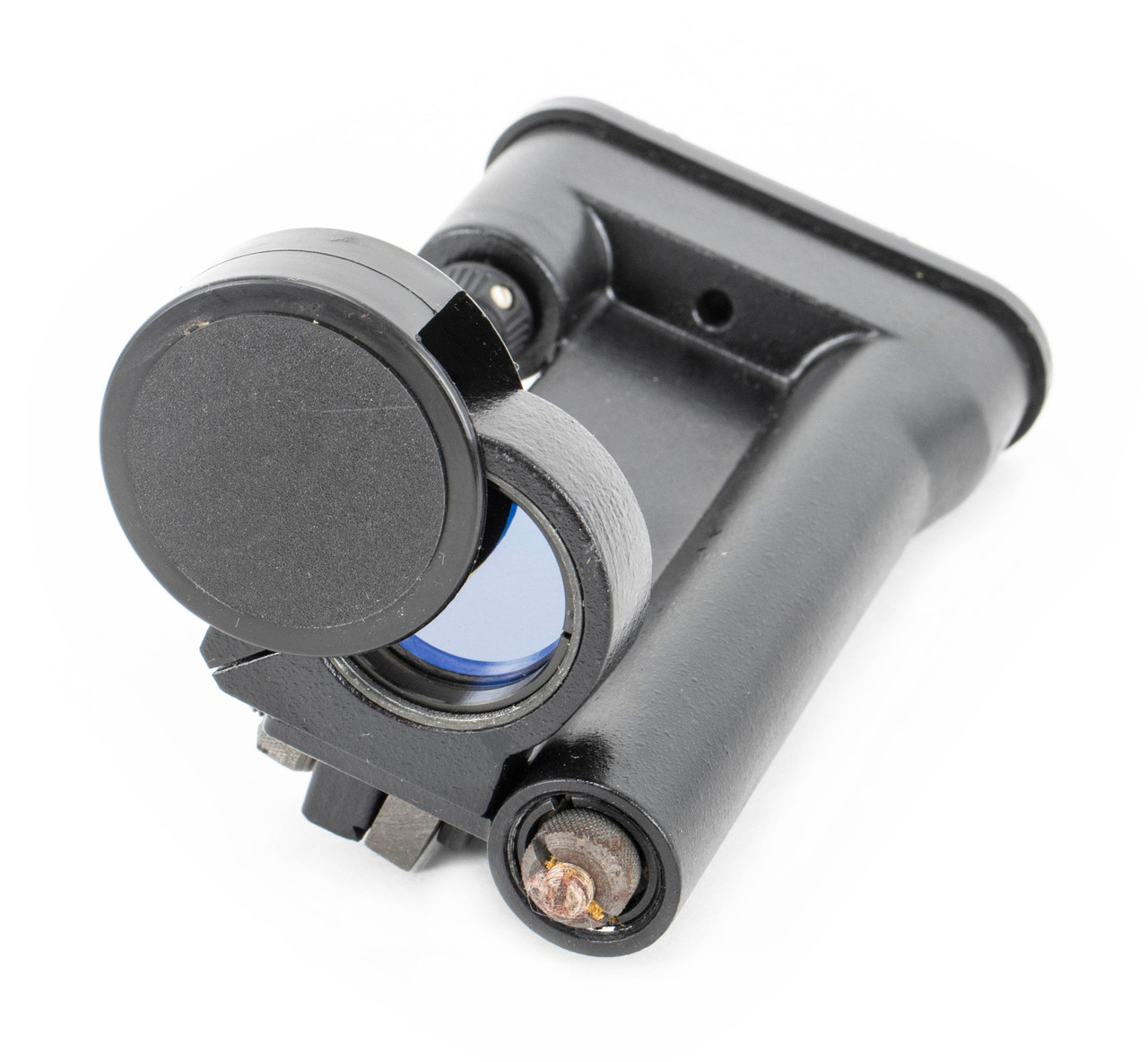

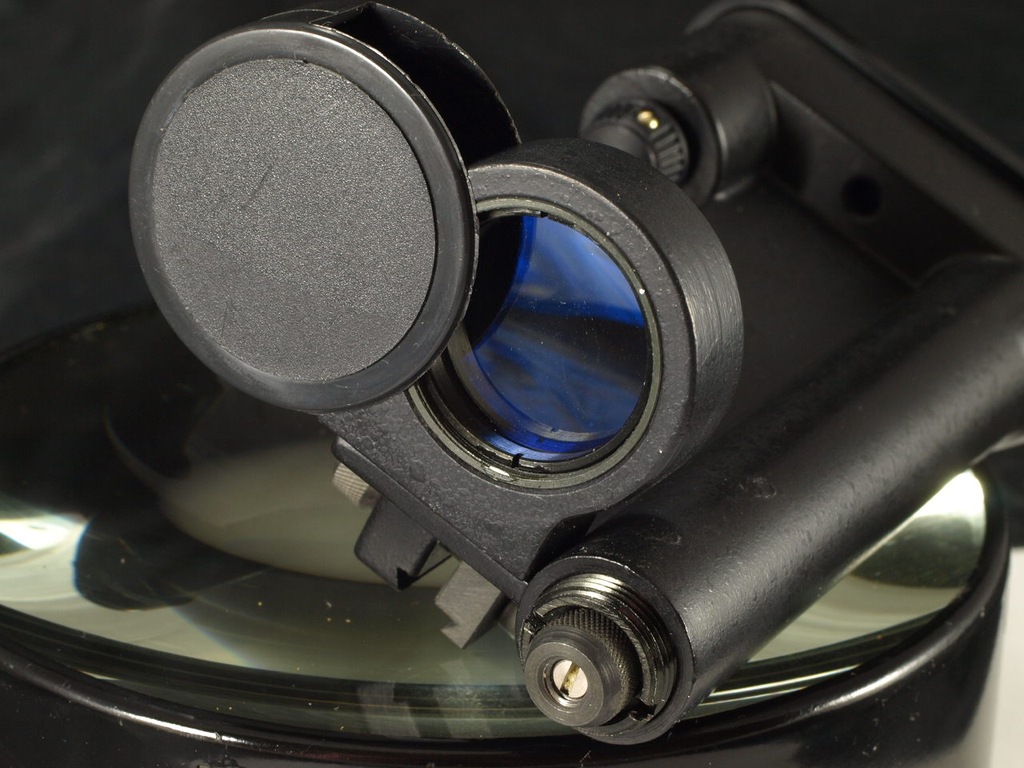

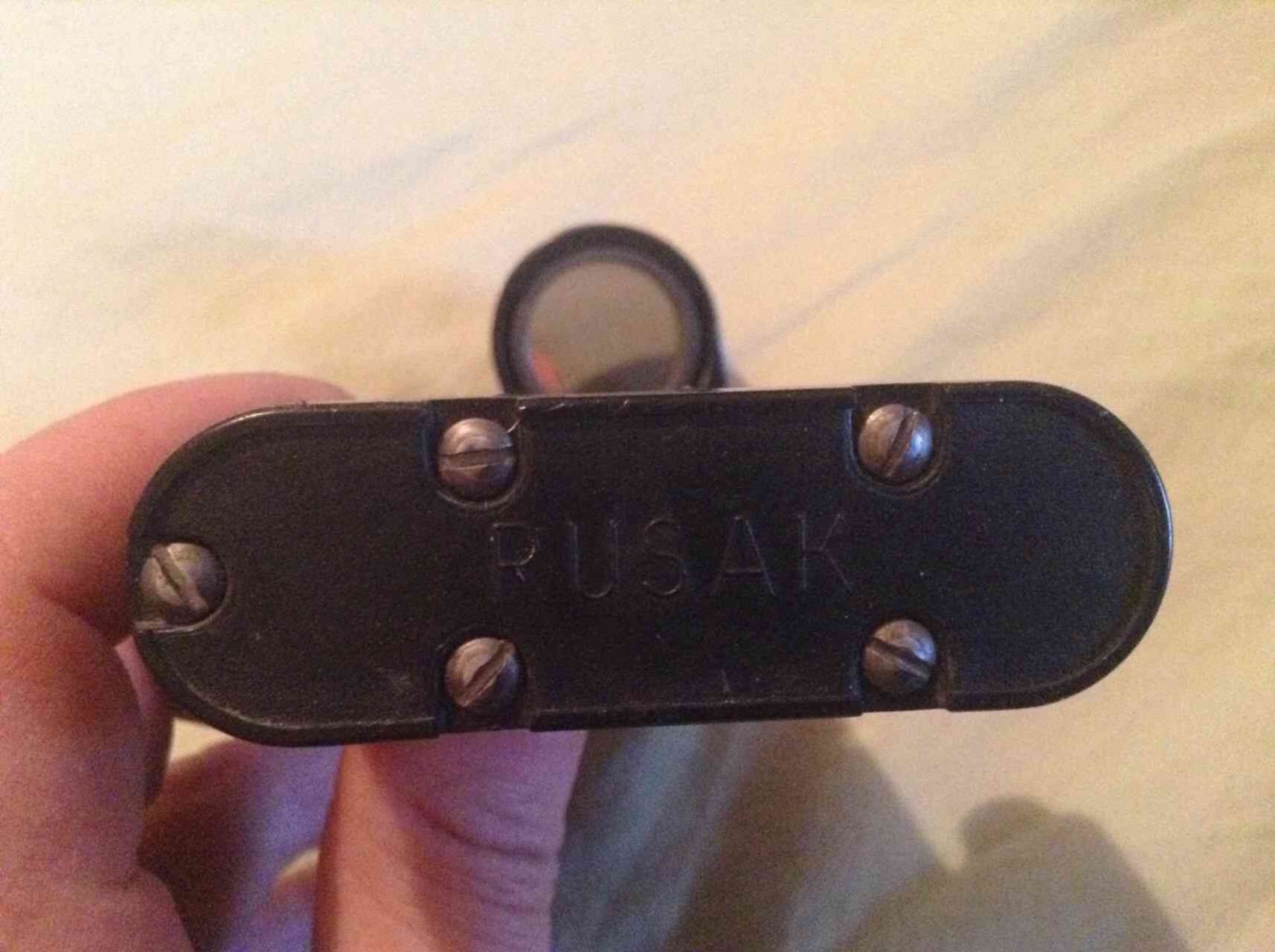

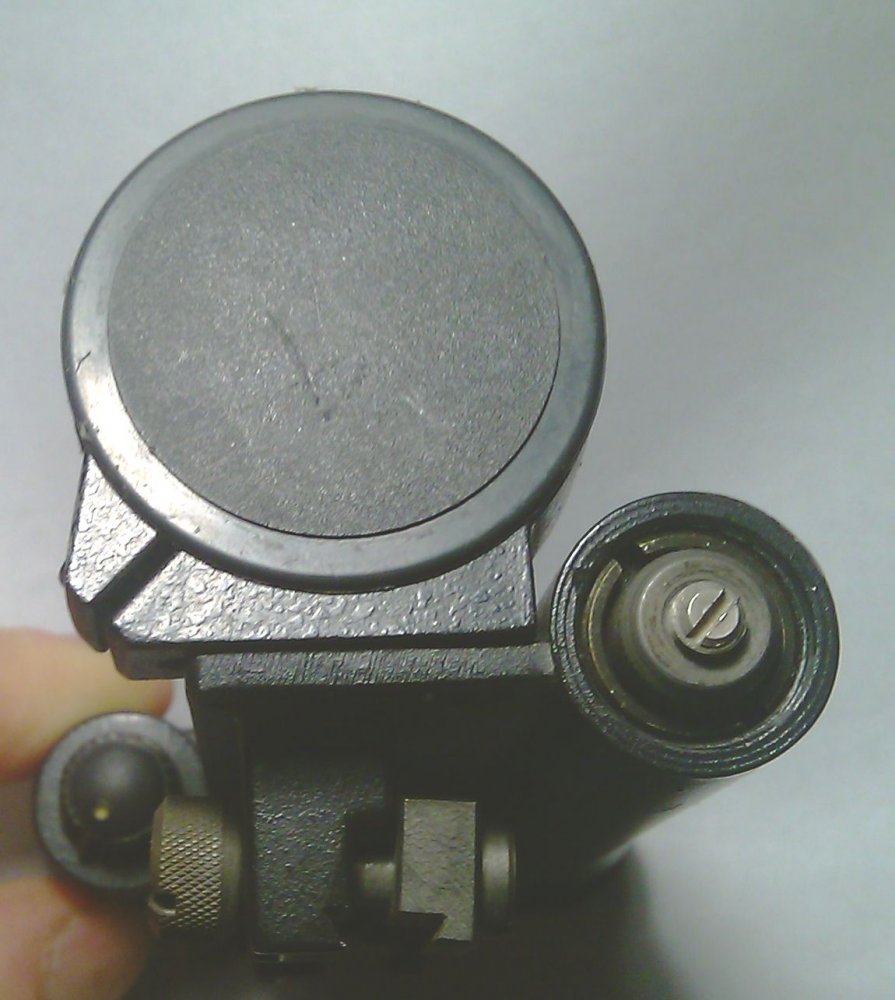

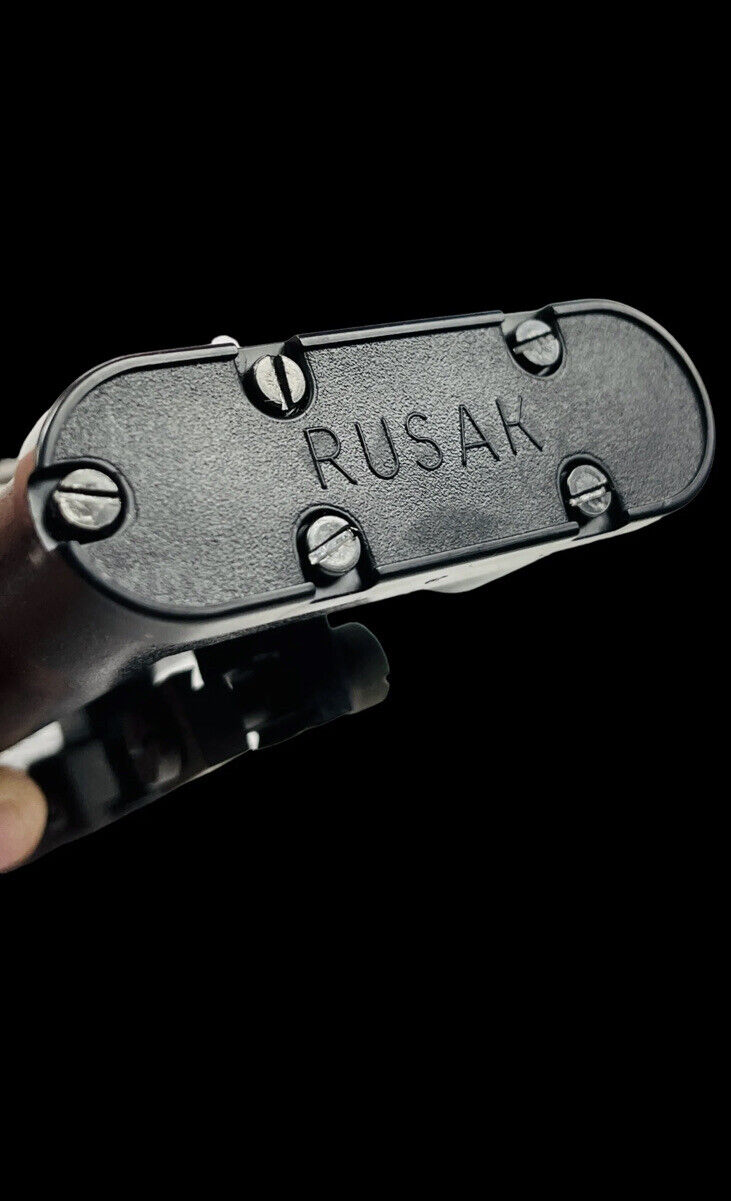

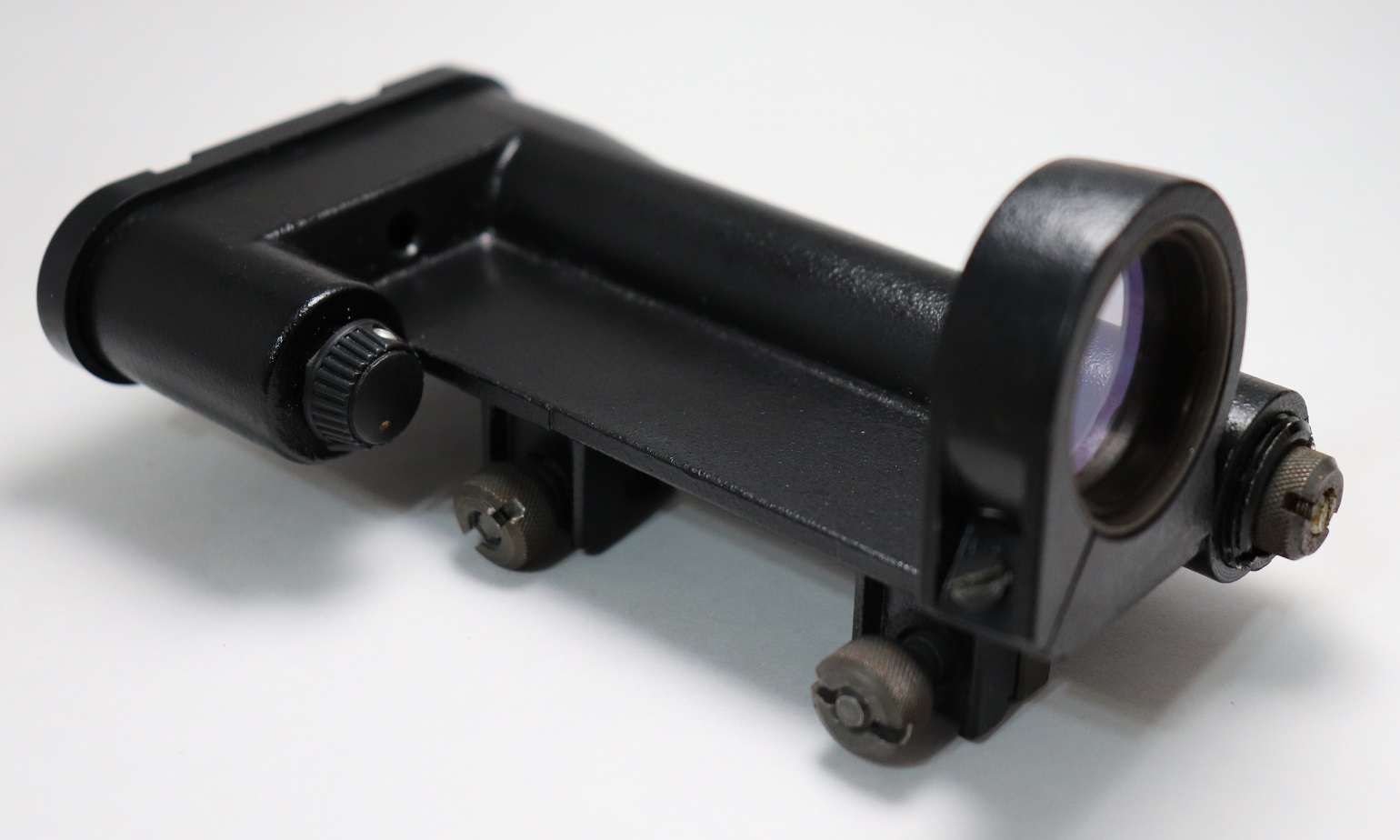

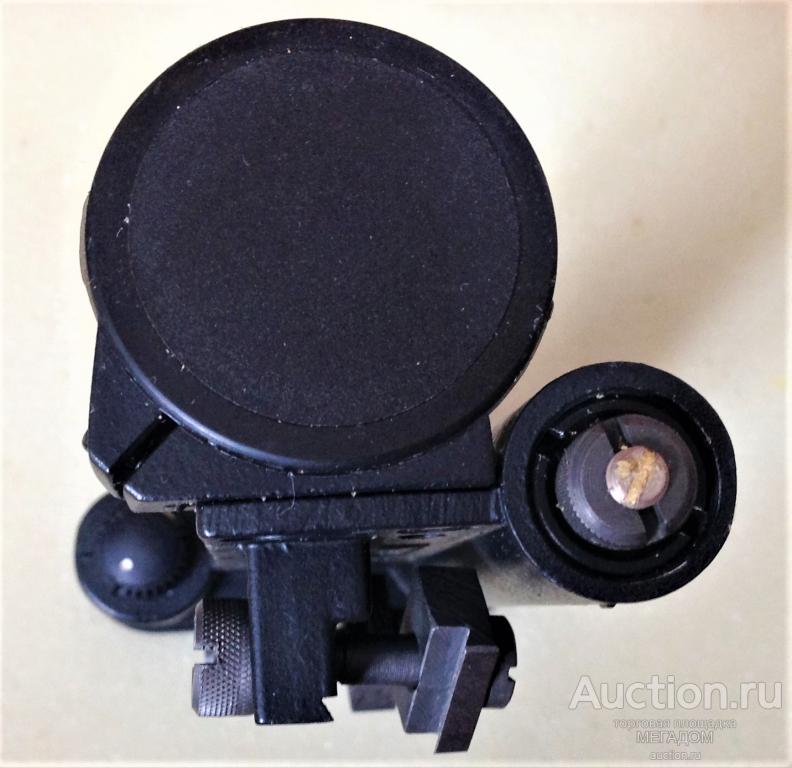

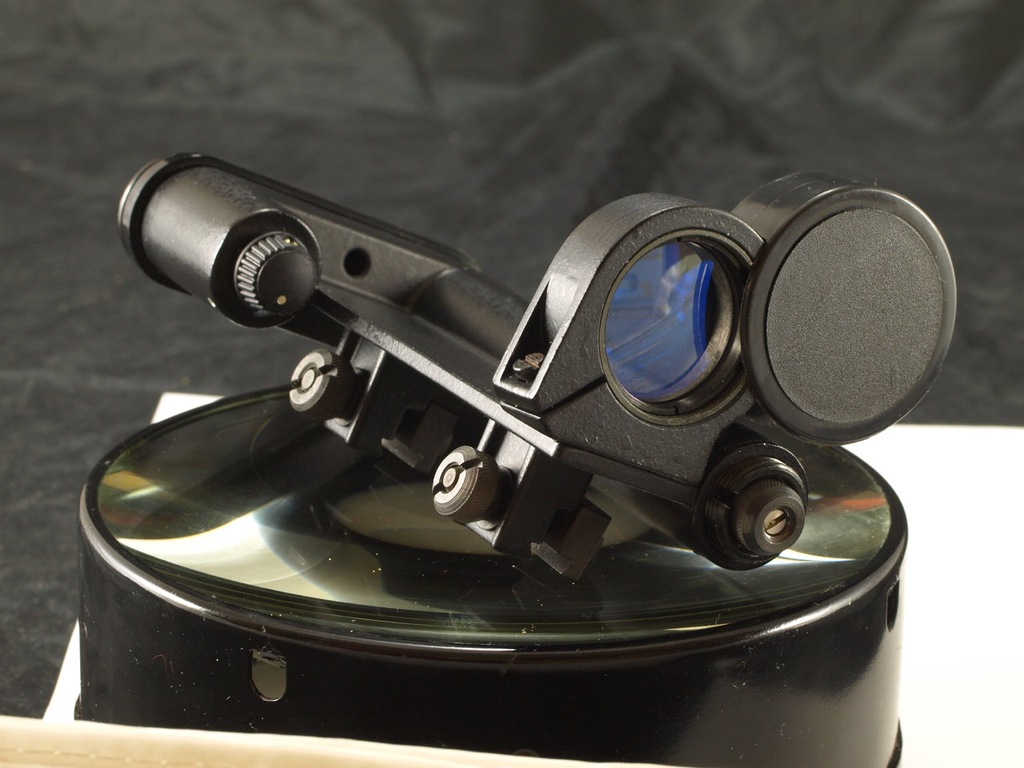

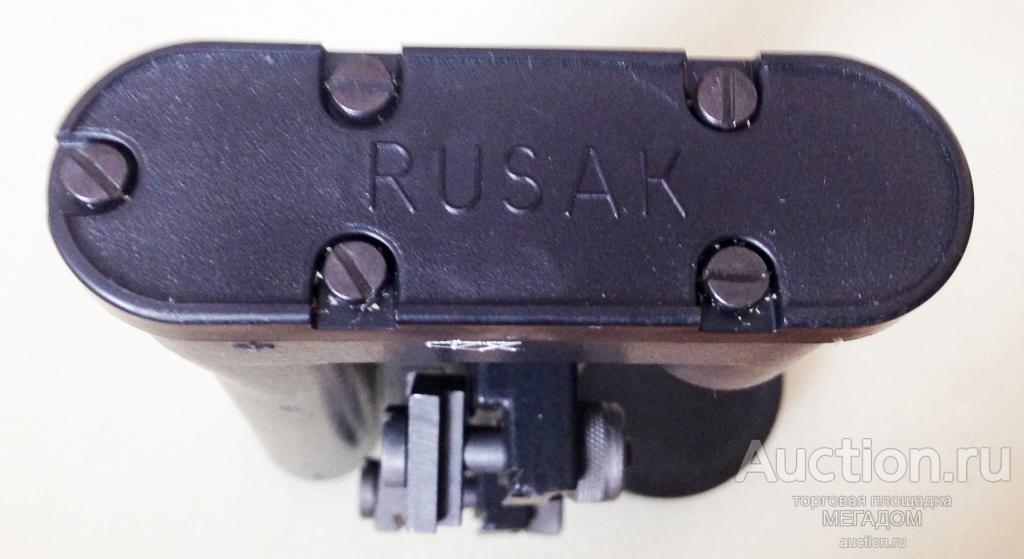

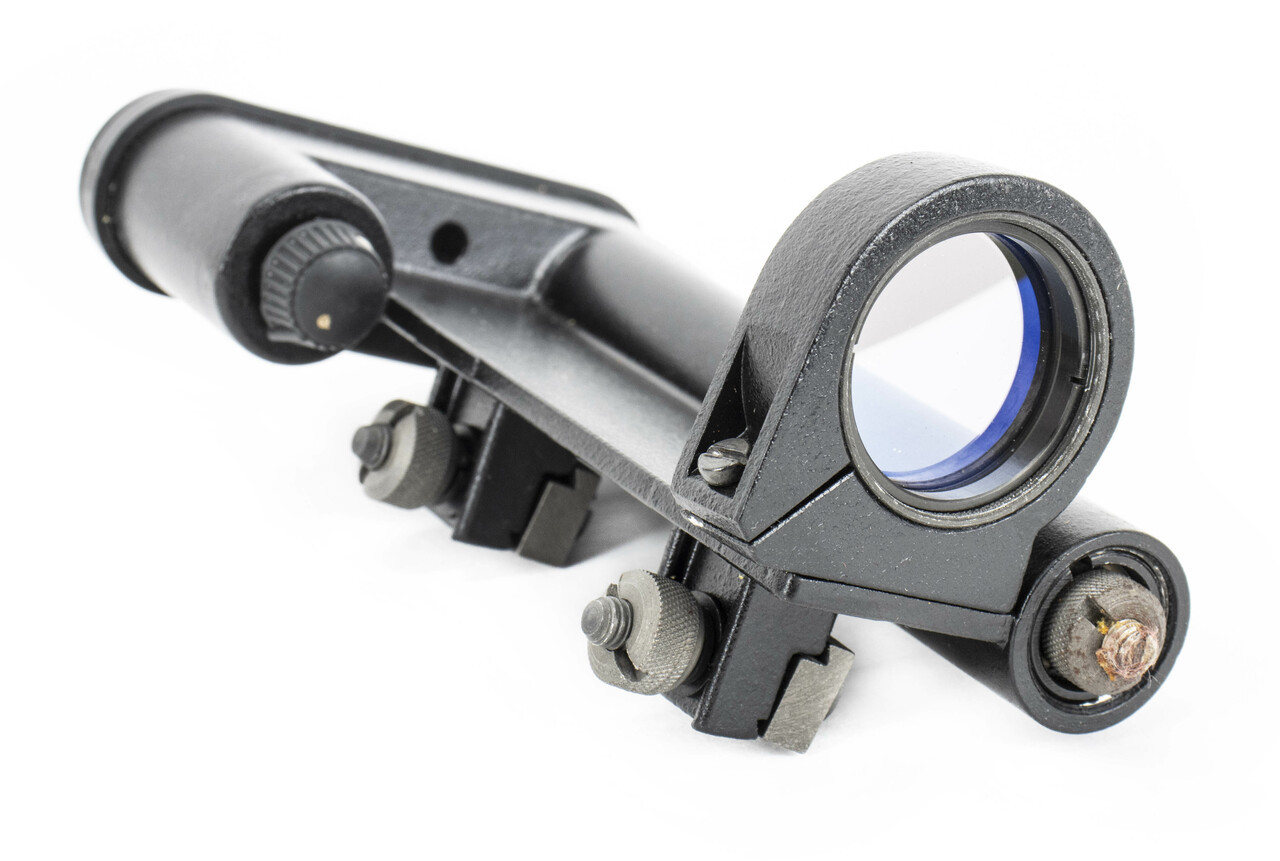

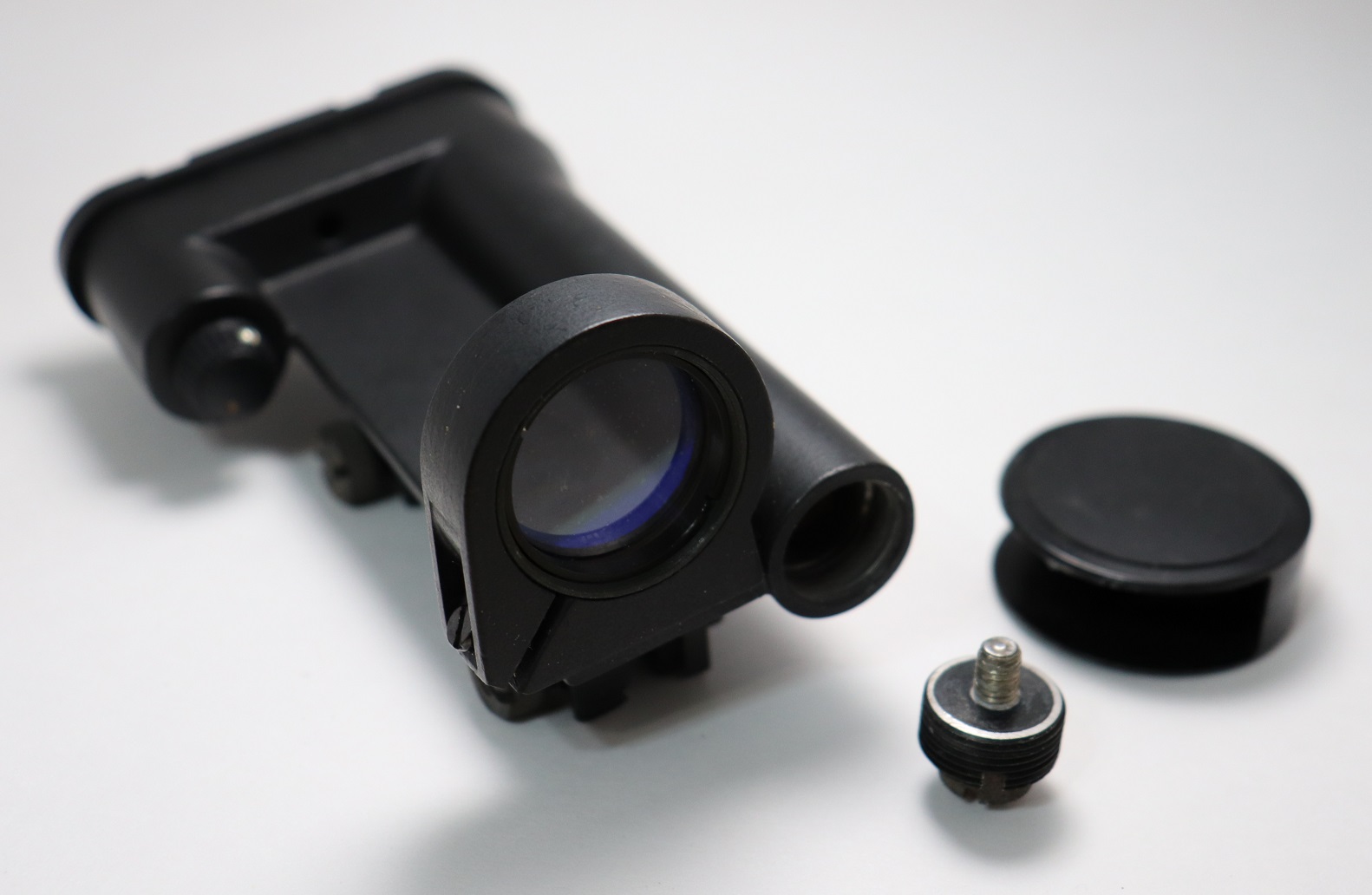

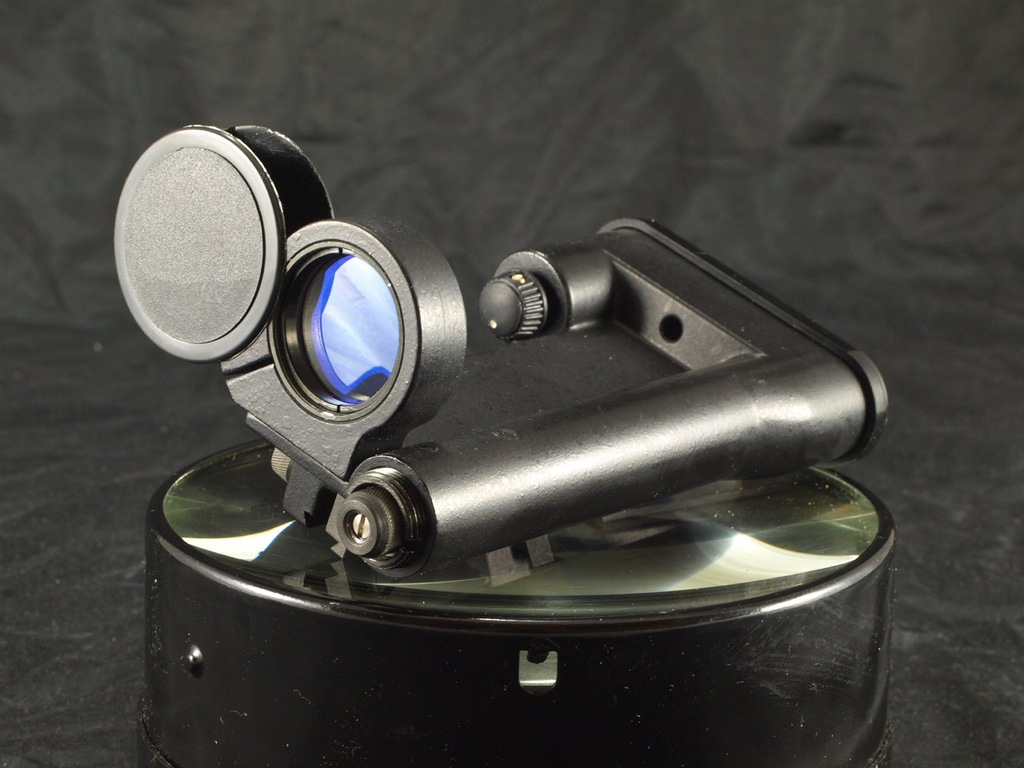

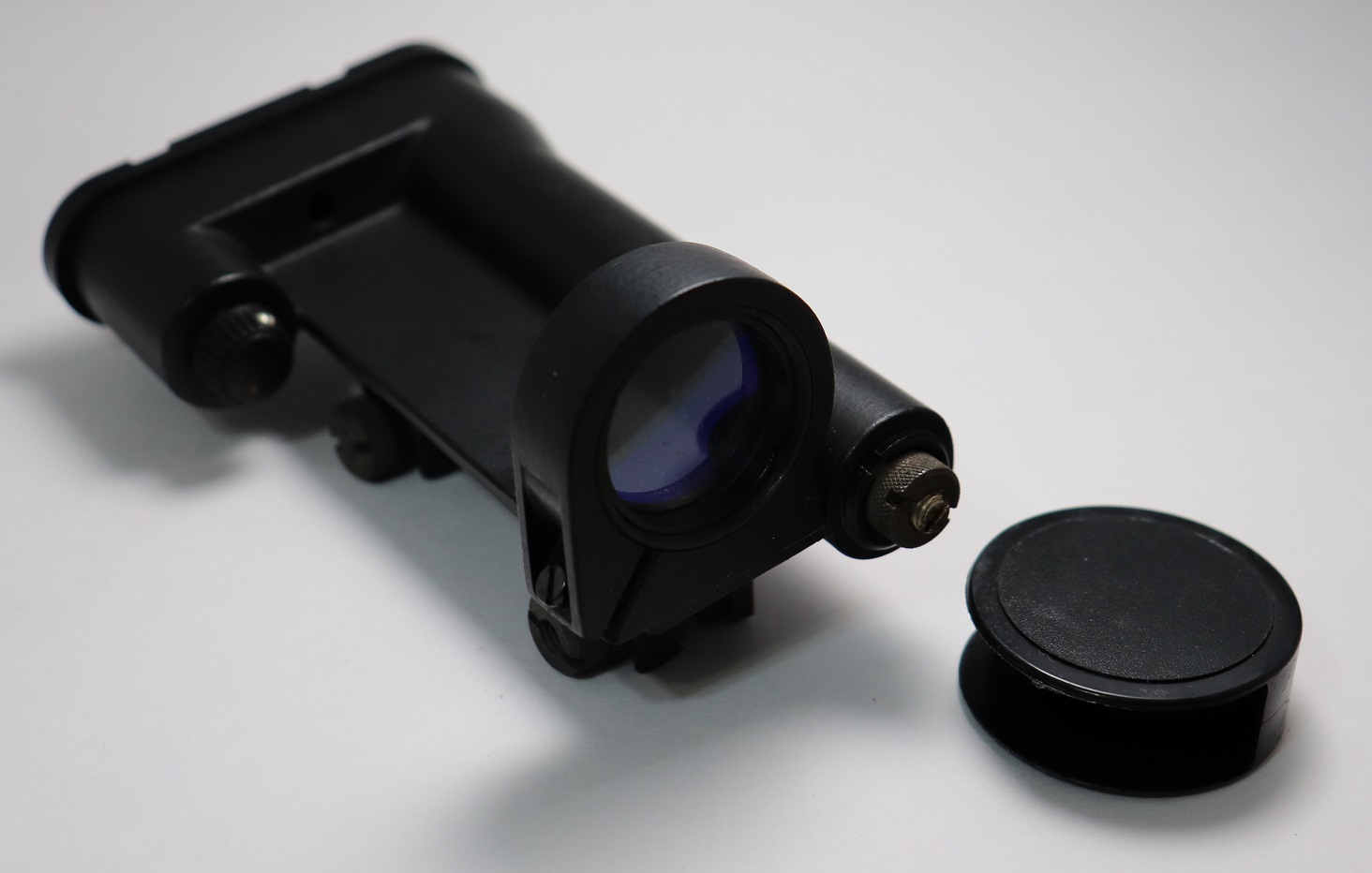

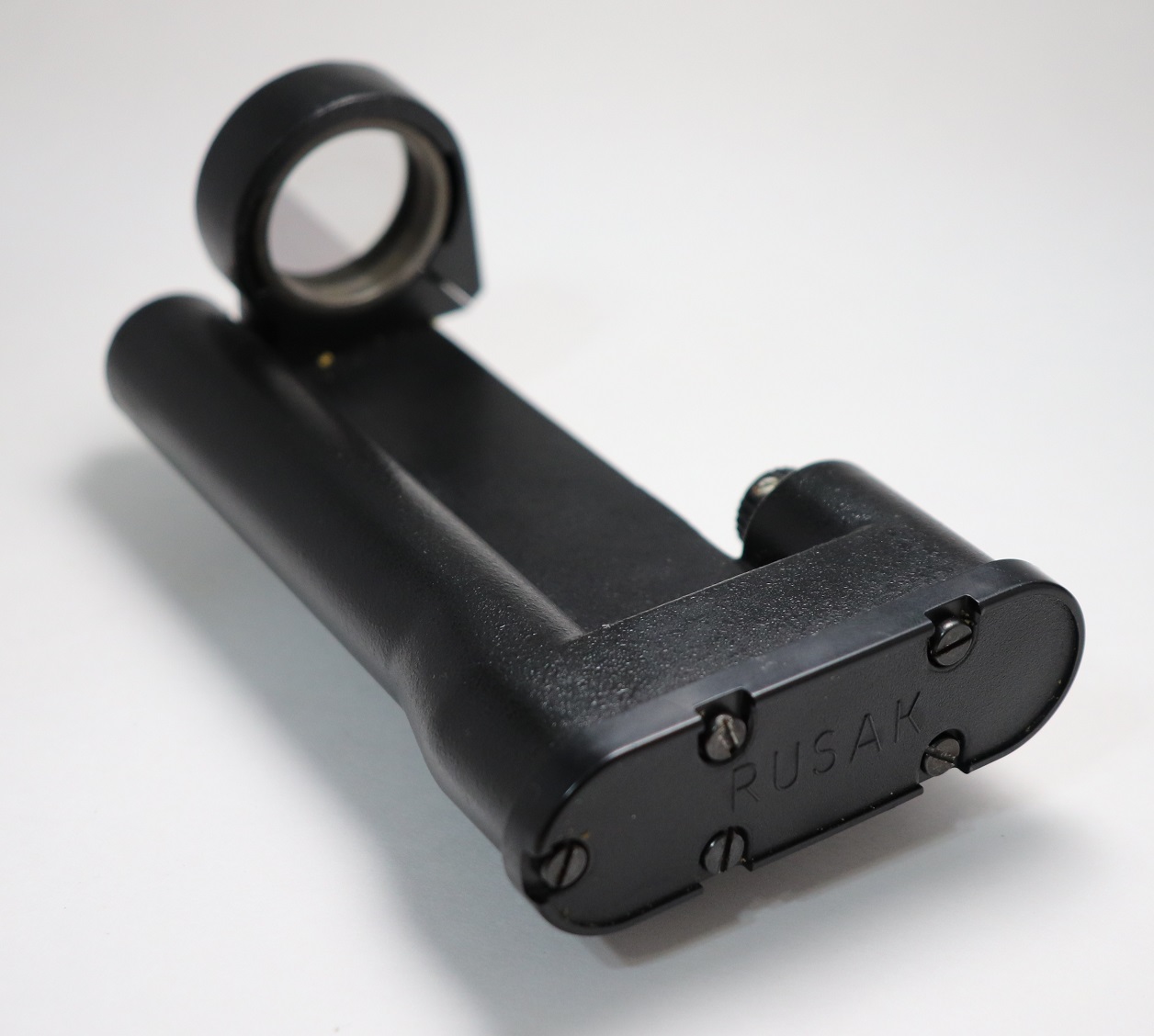

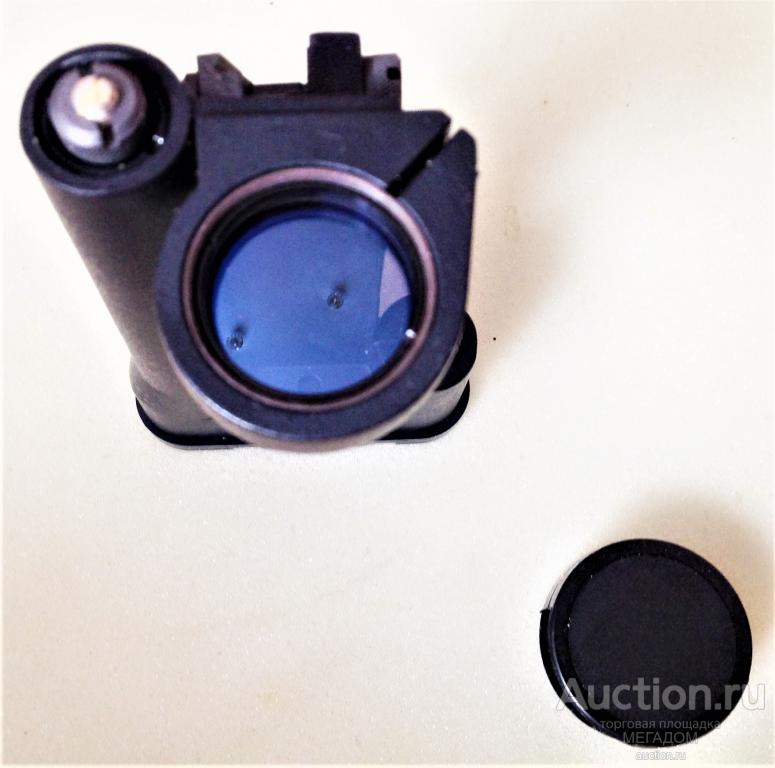

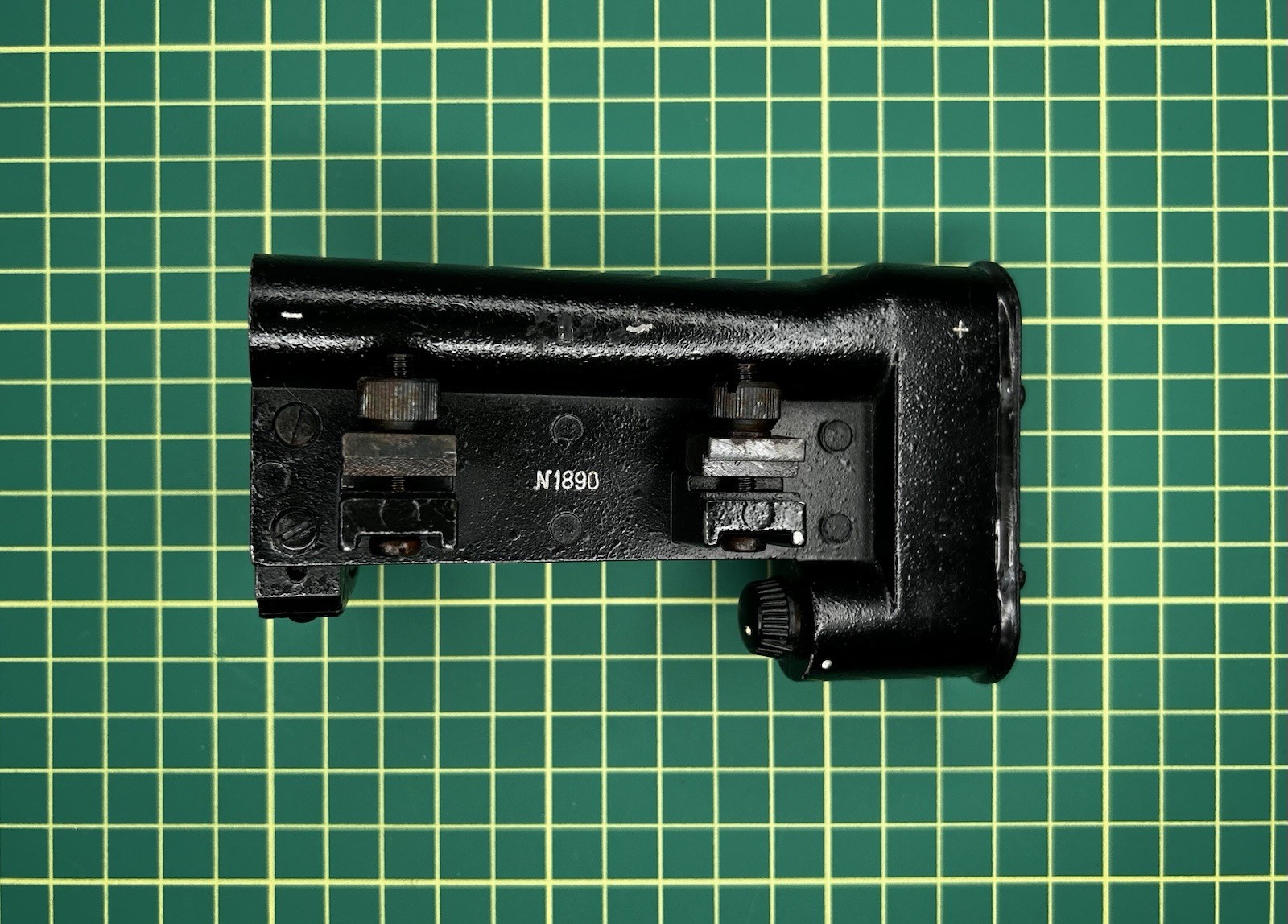

Export marked RUSAK sight. Note the KOMZ logo on the bottom of the sight along with the + and - battery polarity emblems. The black plastic disk is a lens cover that can be placed over the lens when not in use to protect the glass.

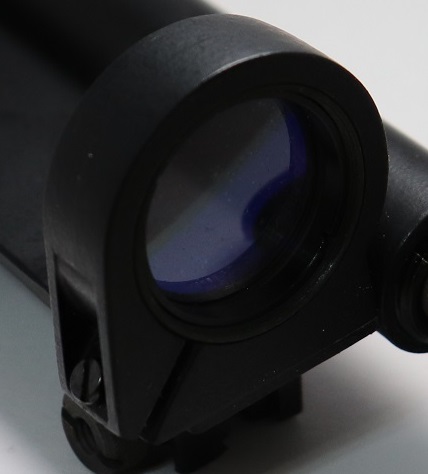

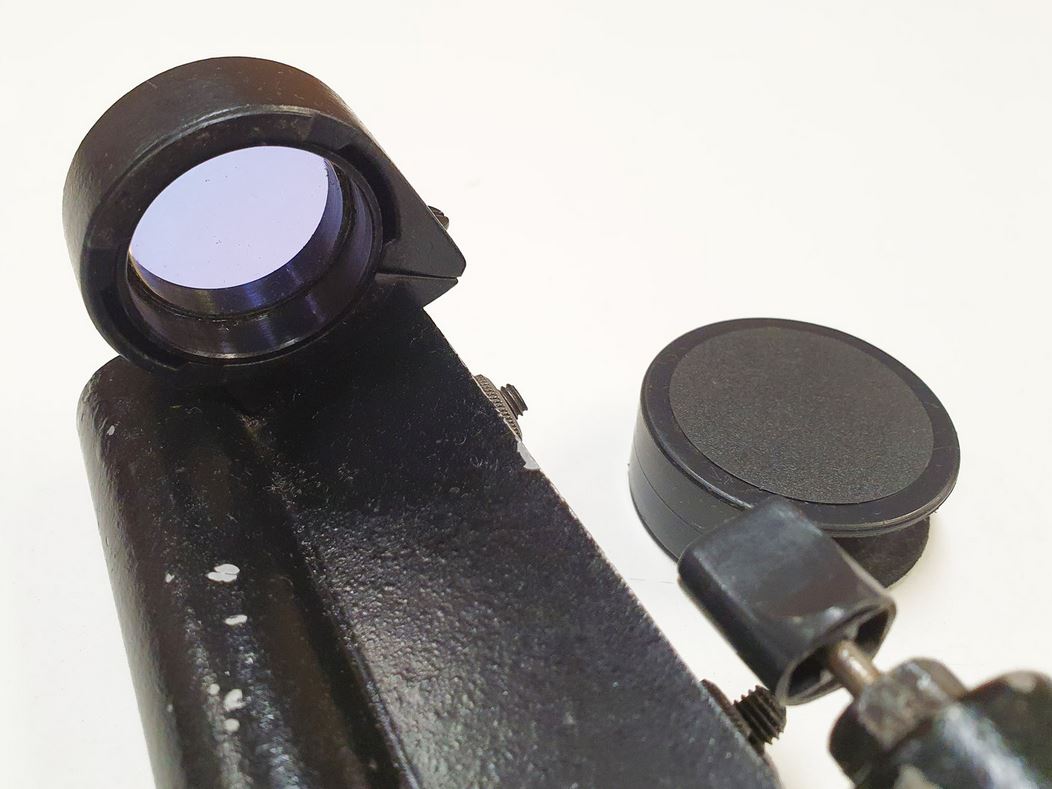

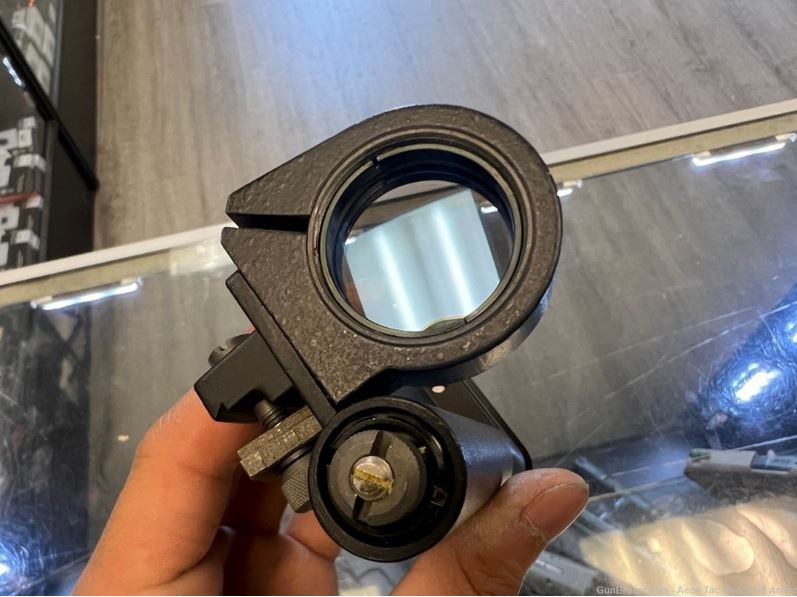

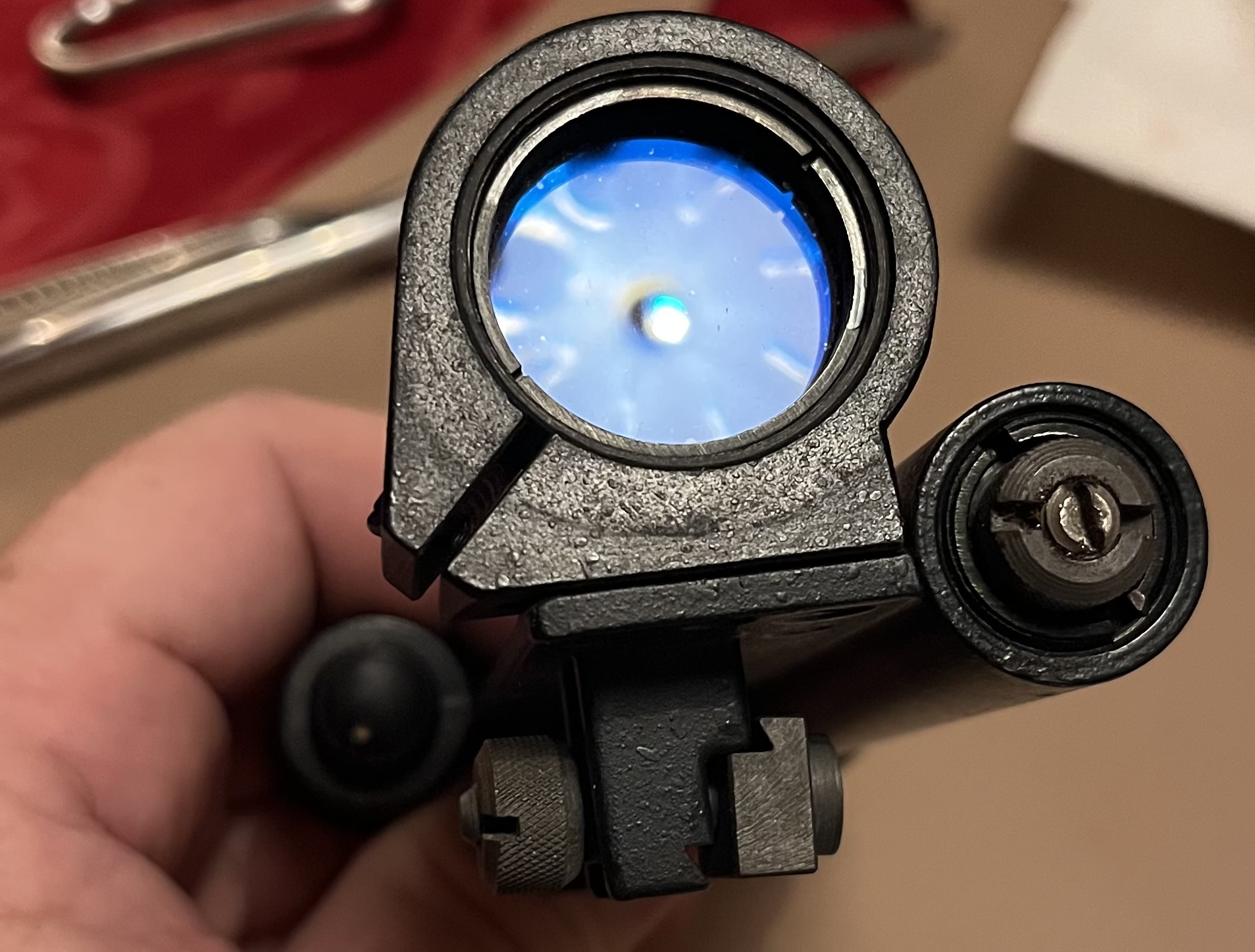

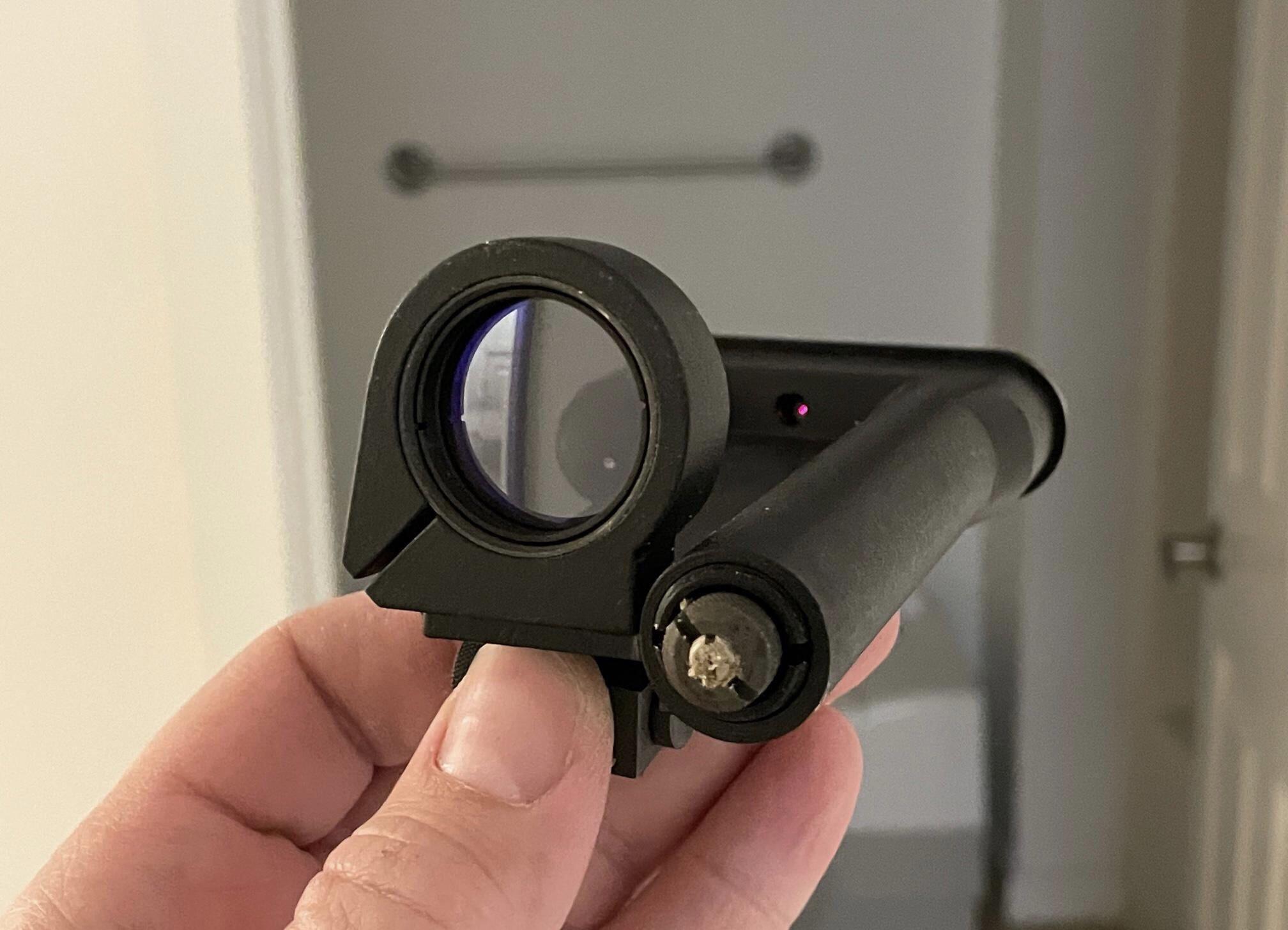

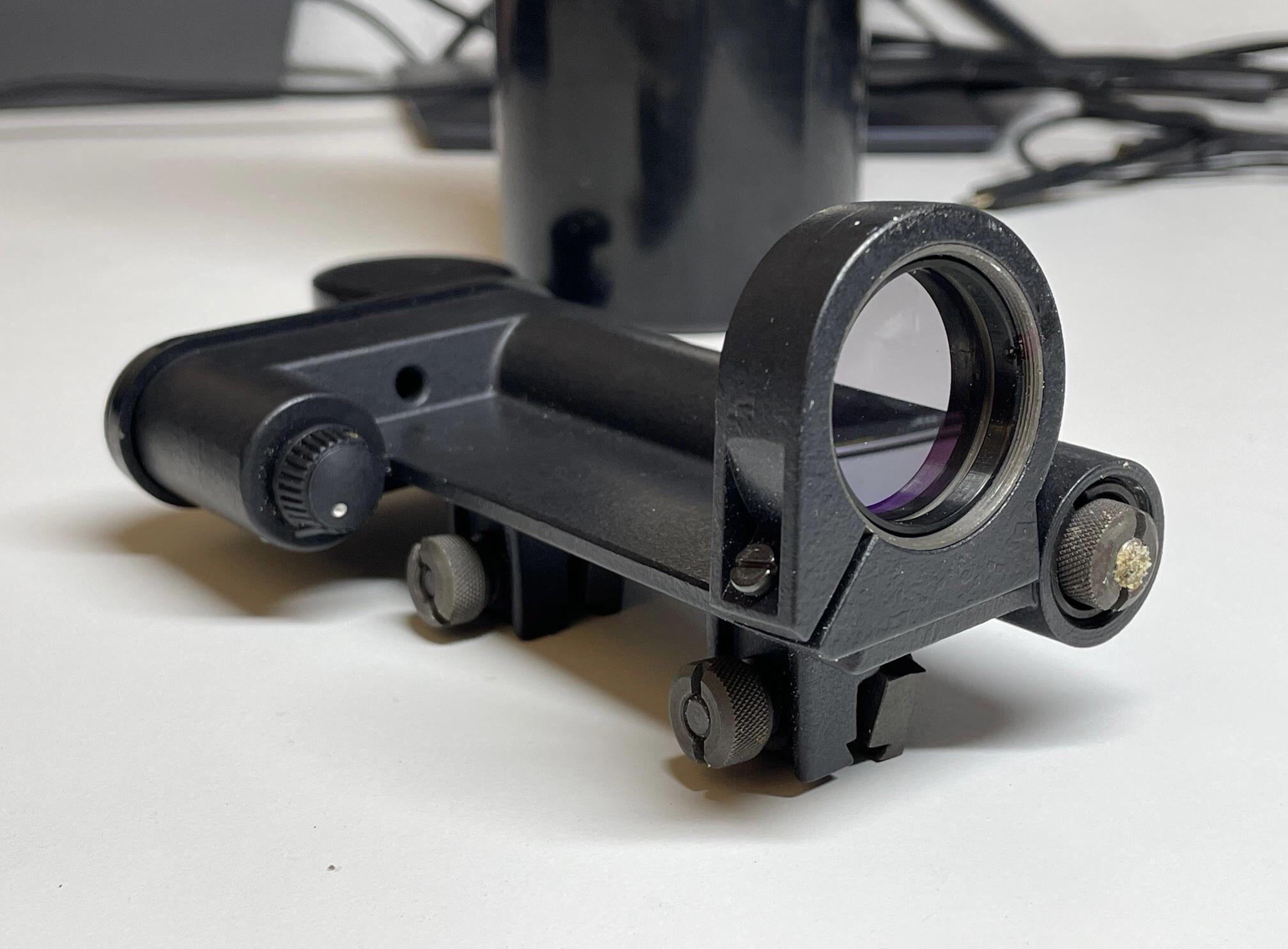

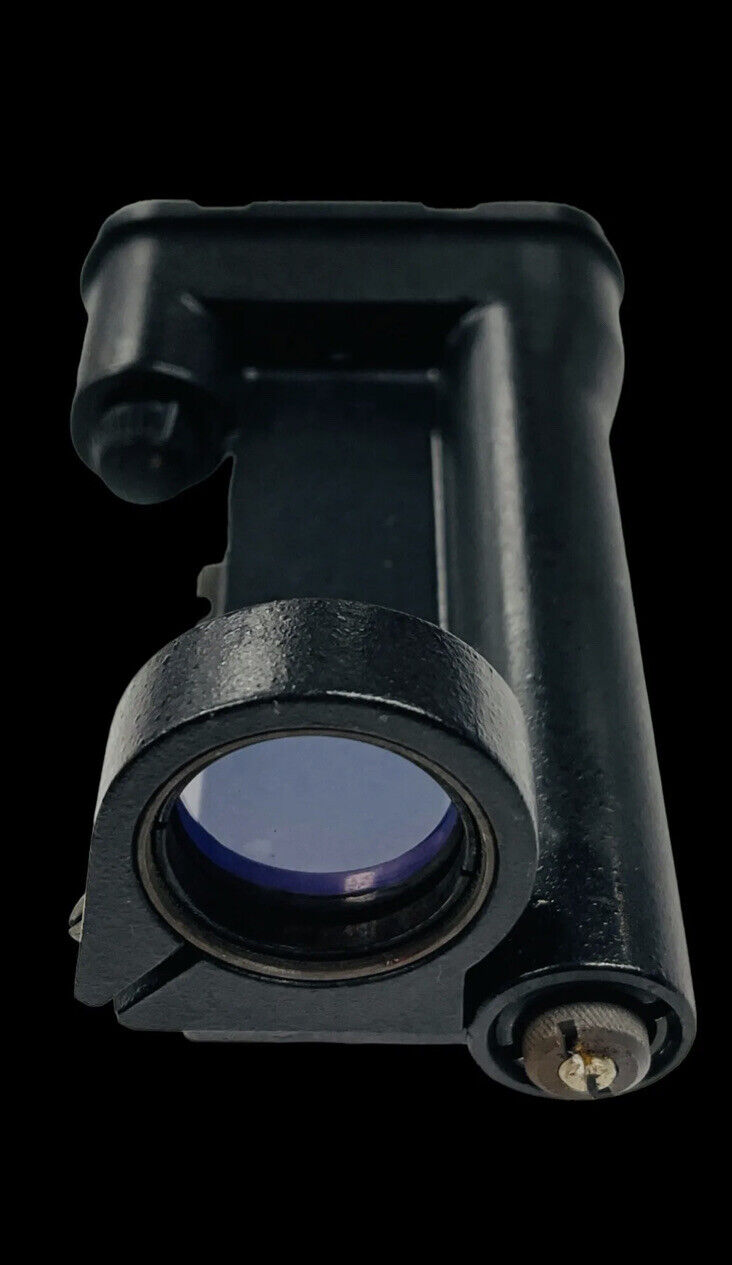

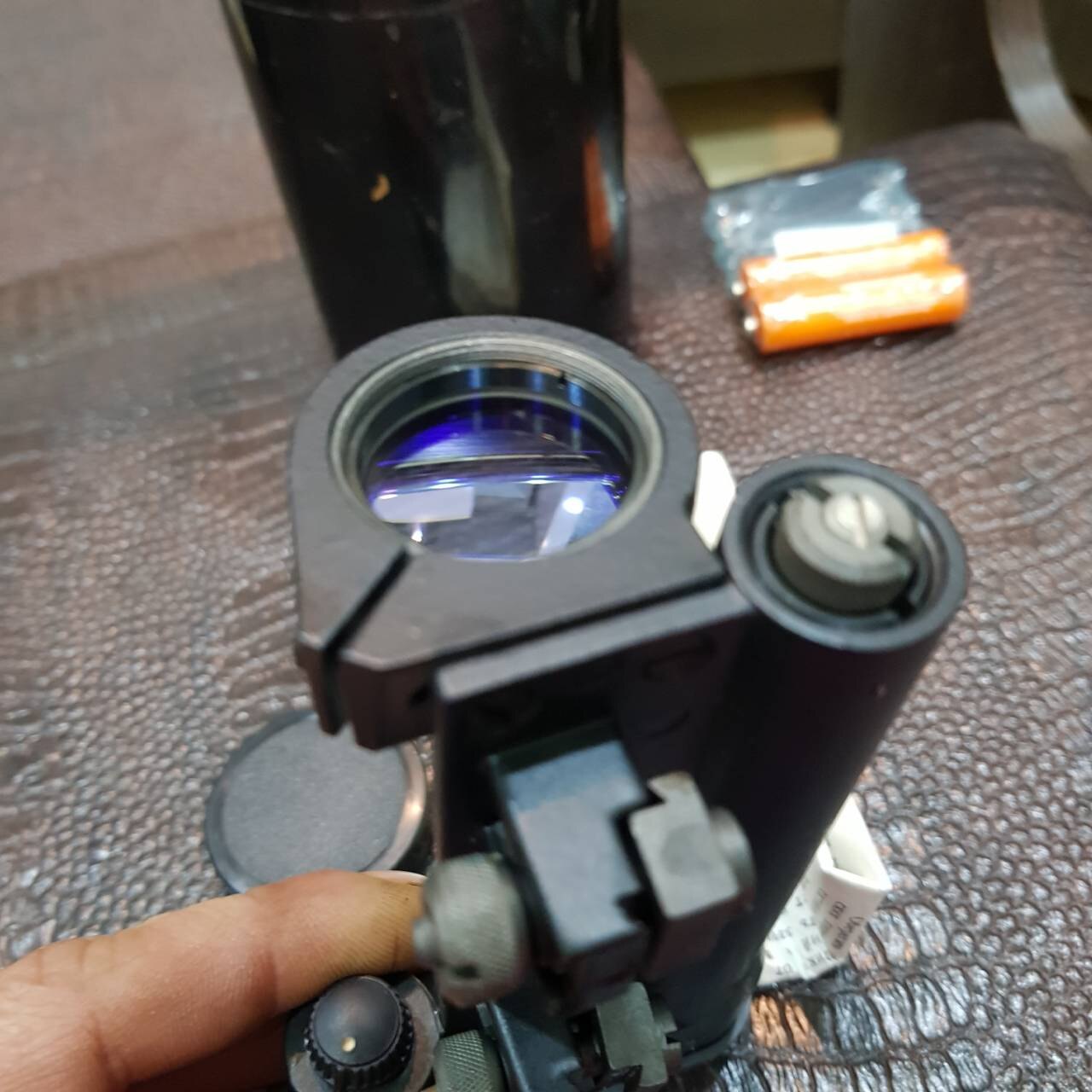

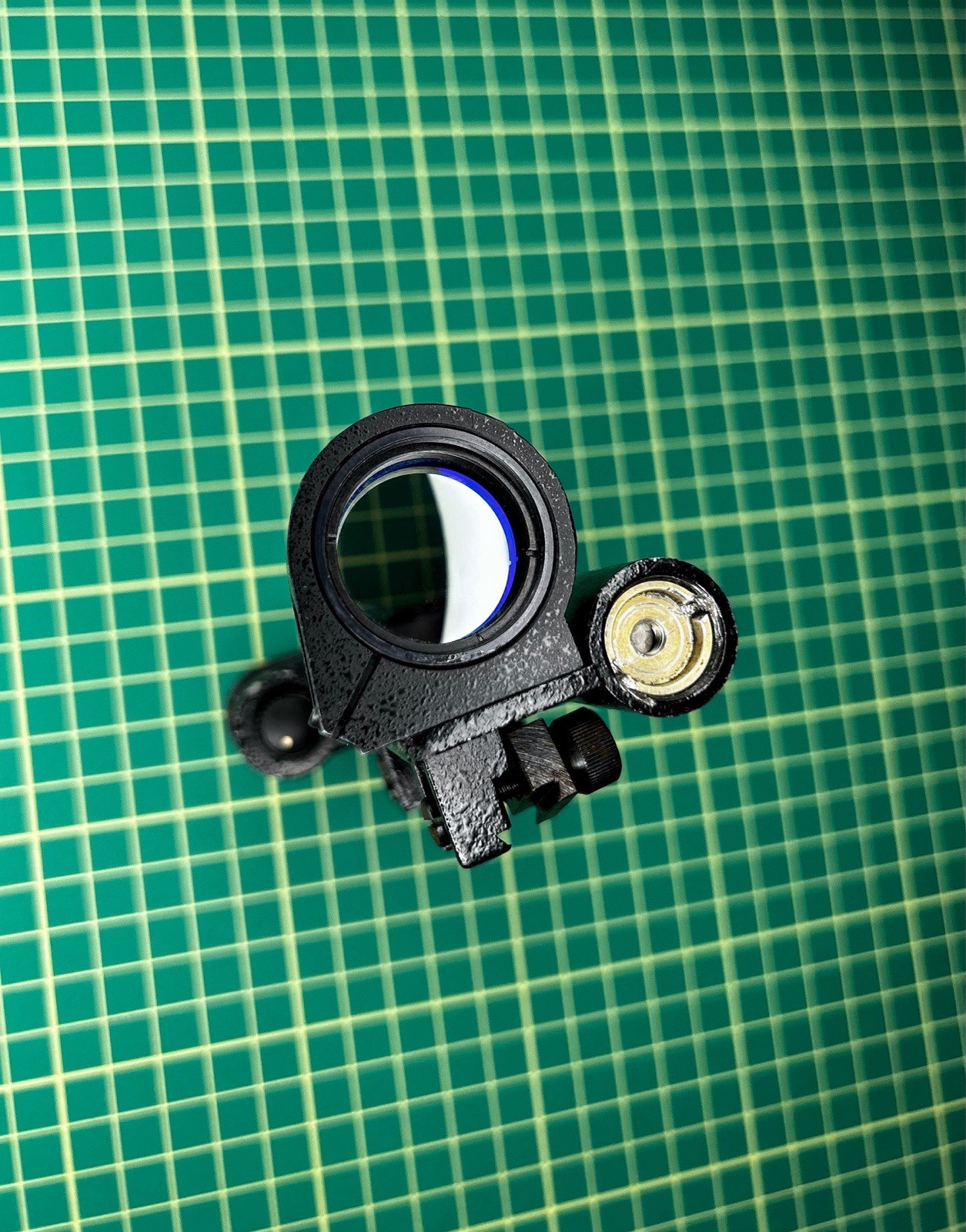

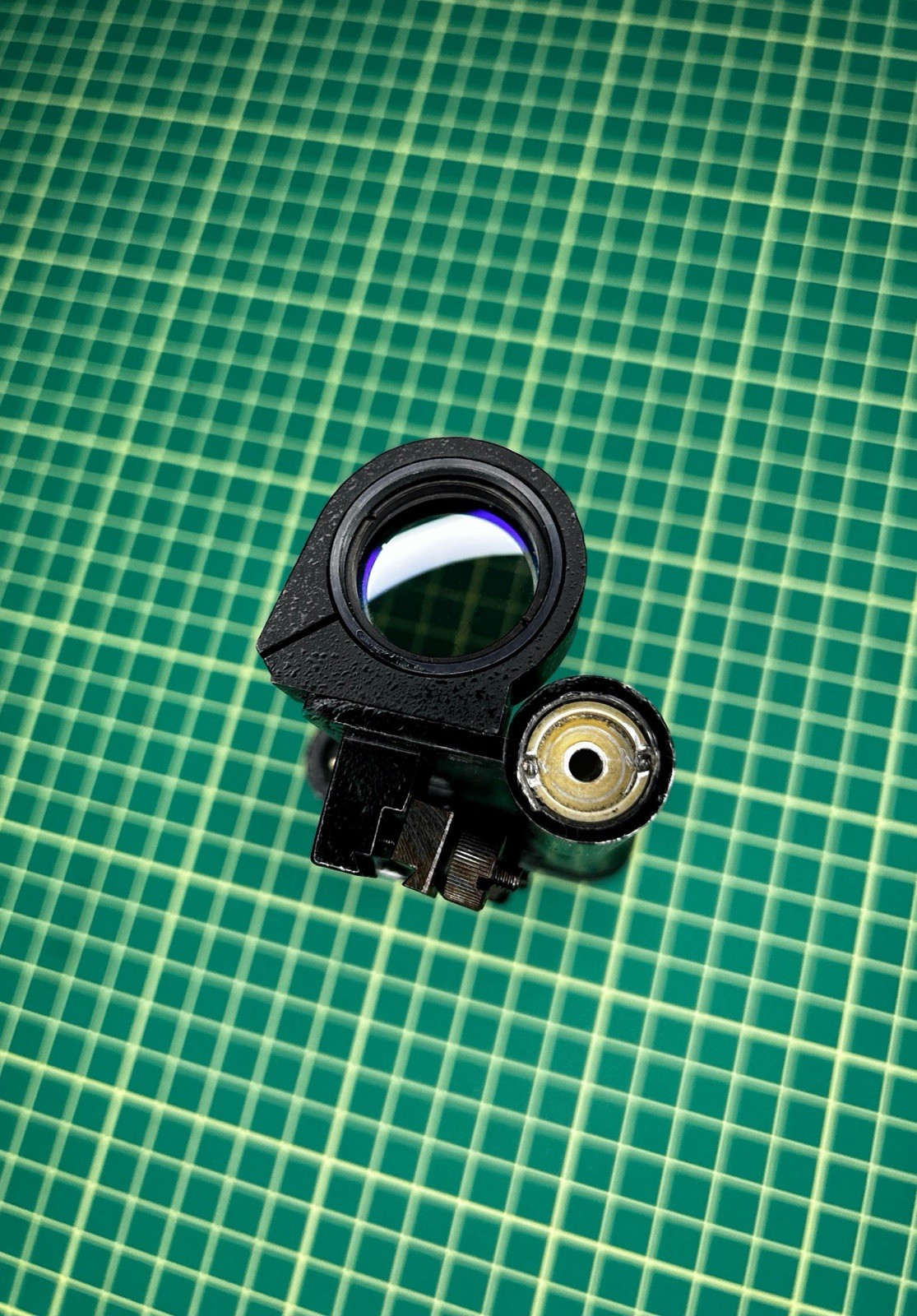

The sight is adjusted by loosening the screw on bottom right of the glass (bottom left in the photo) and then physically adjusting the glass before retightening the screw.

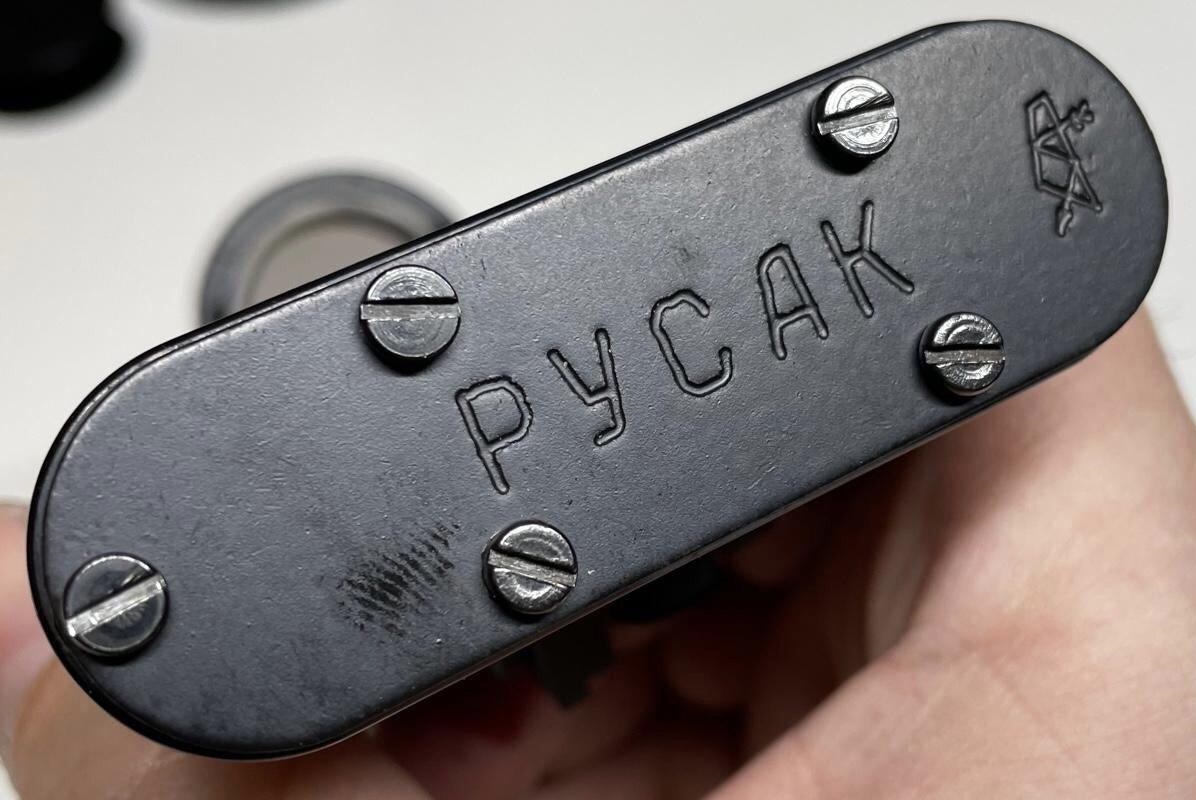

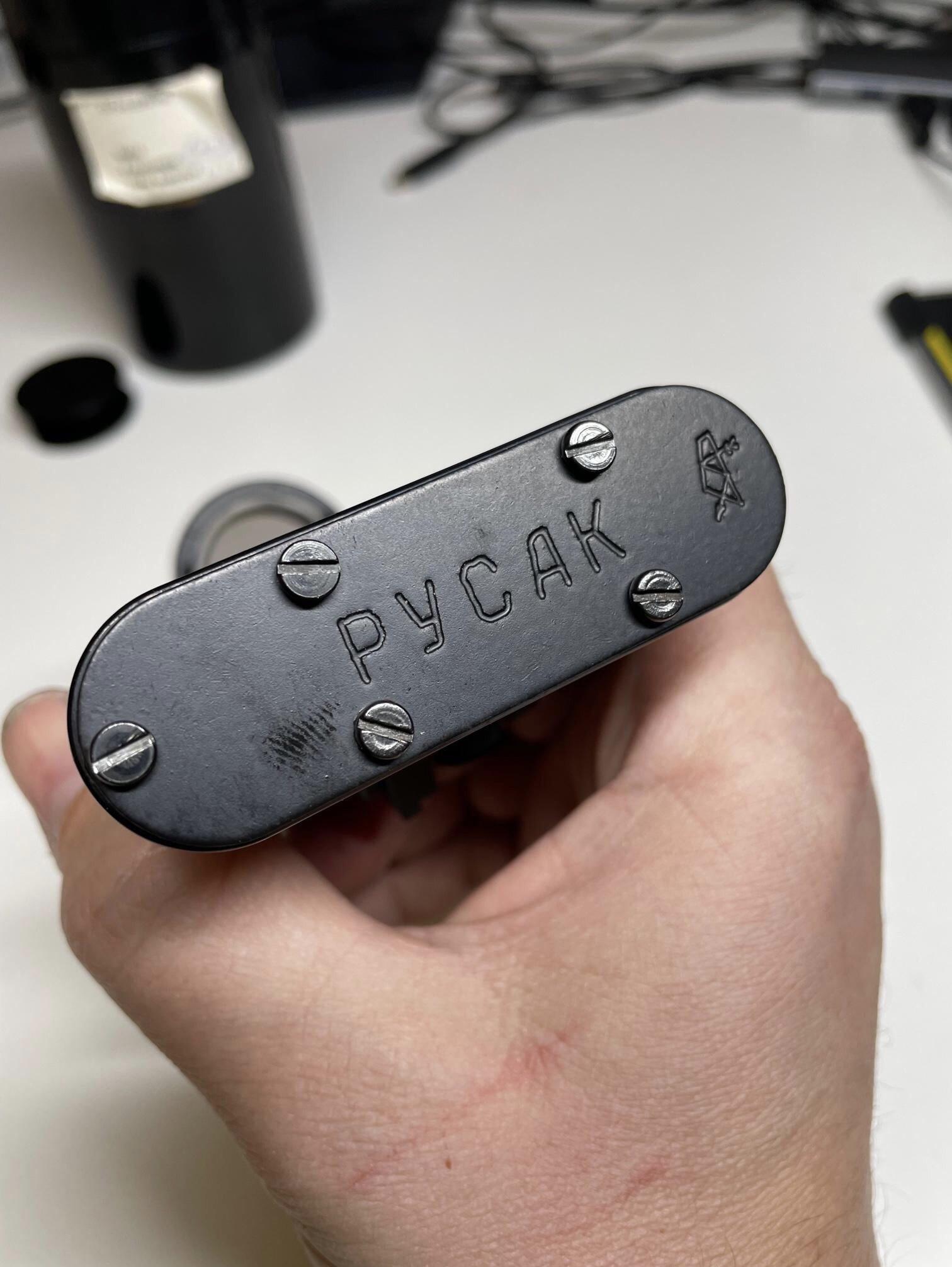

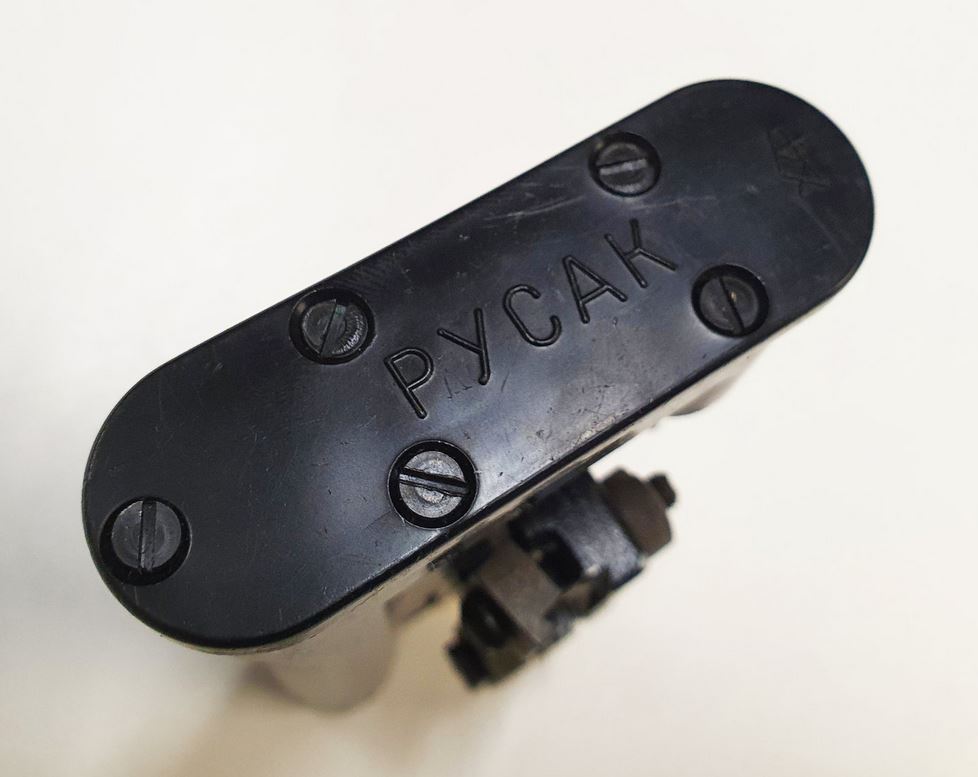

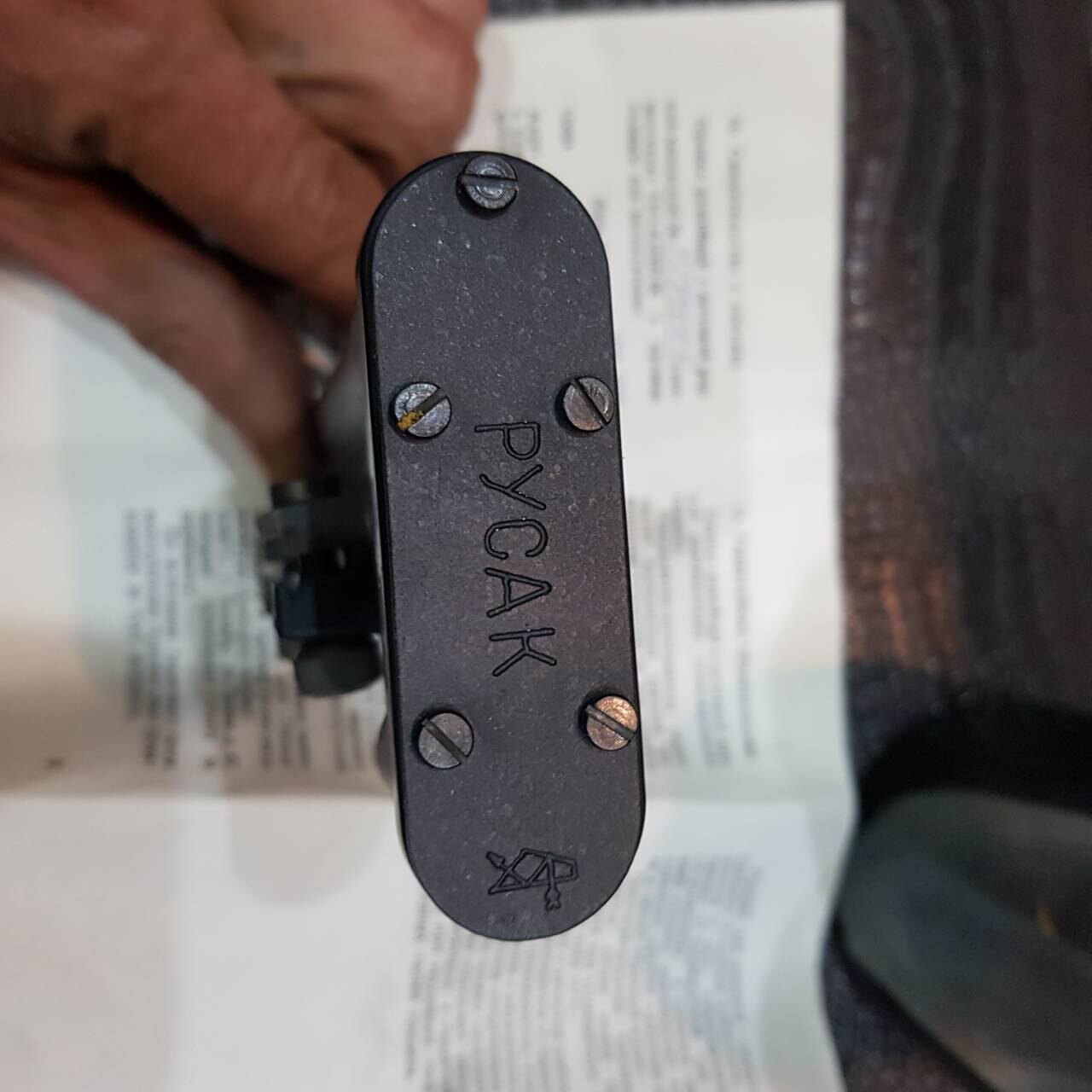

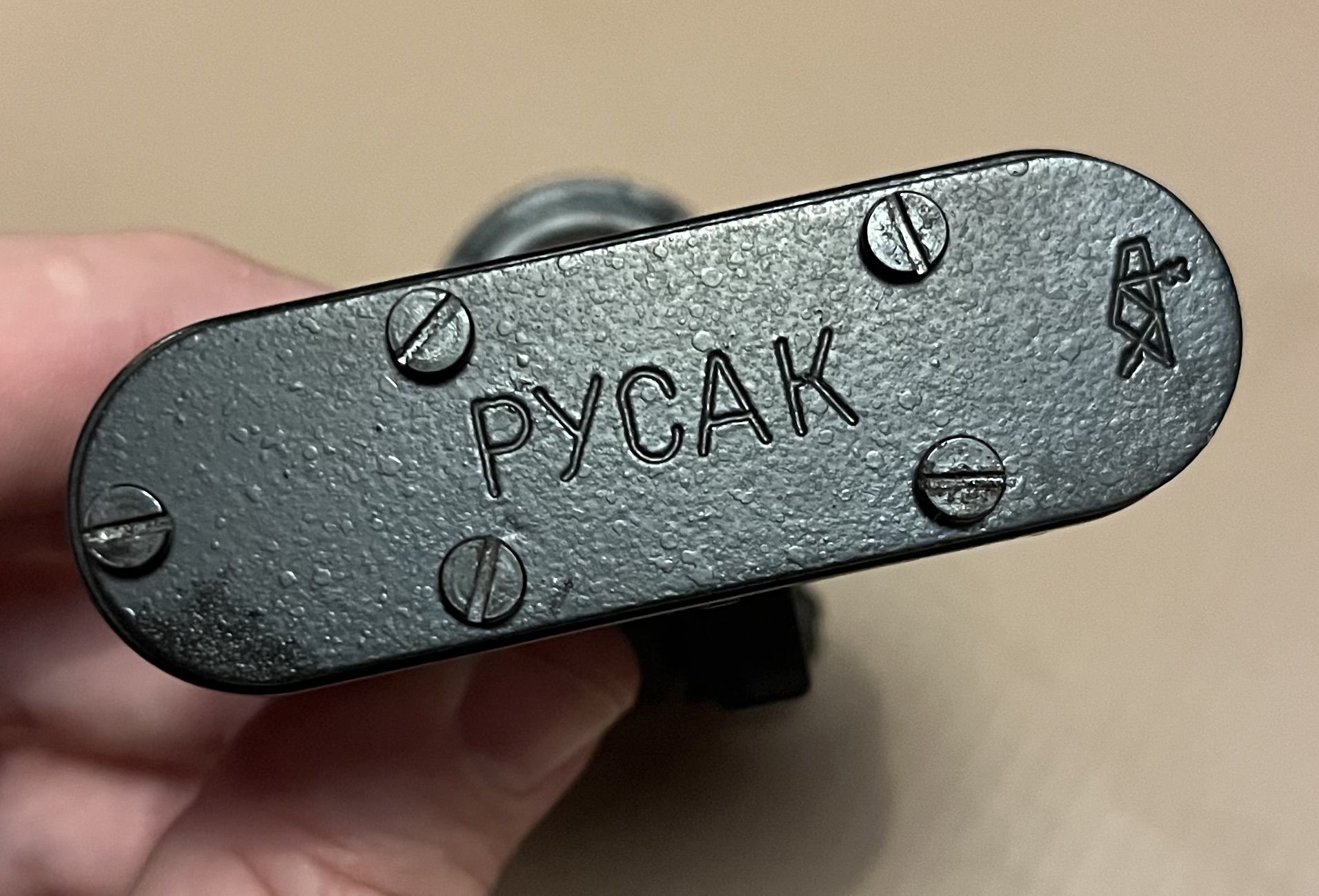

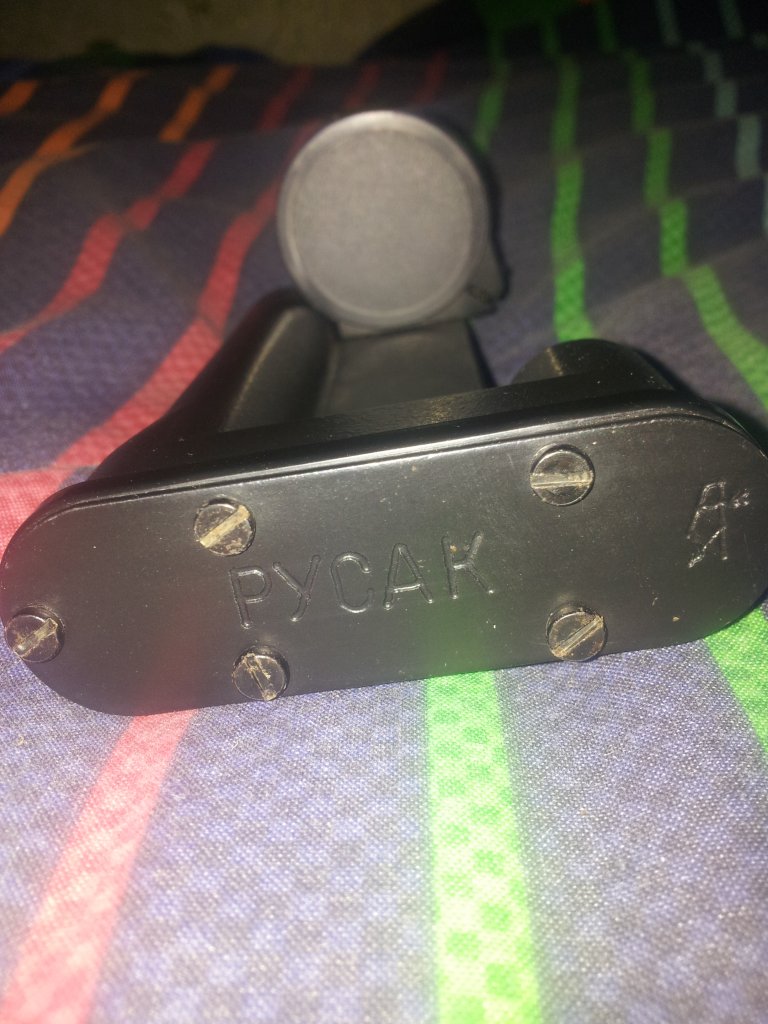

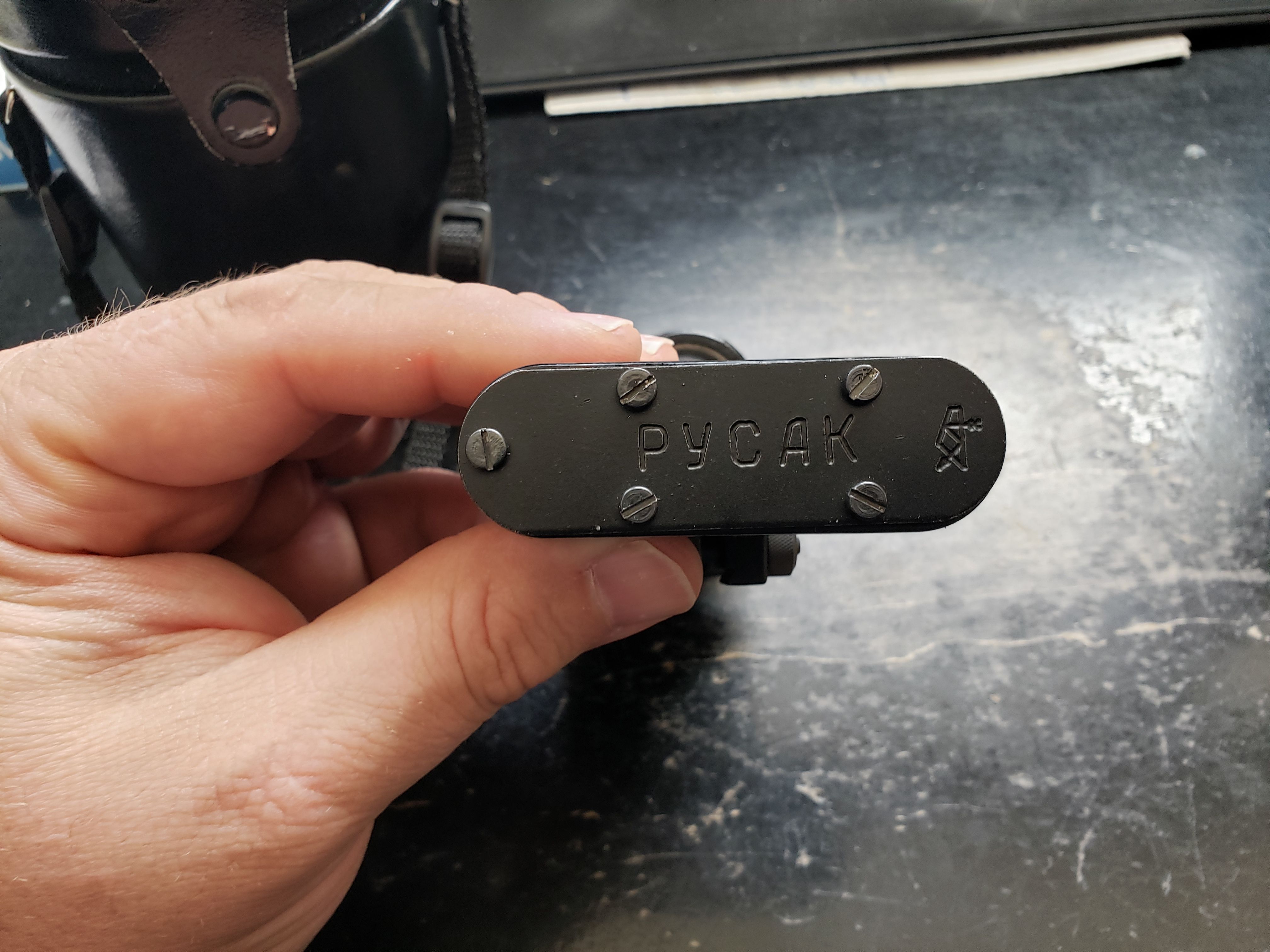

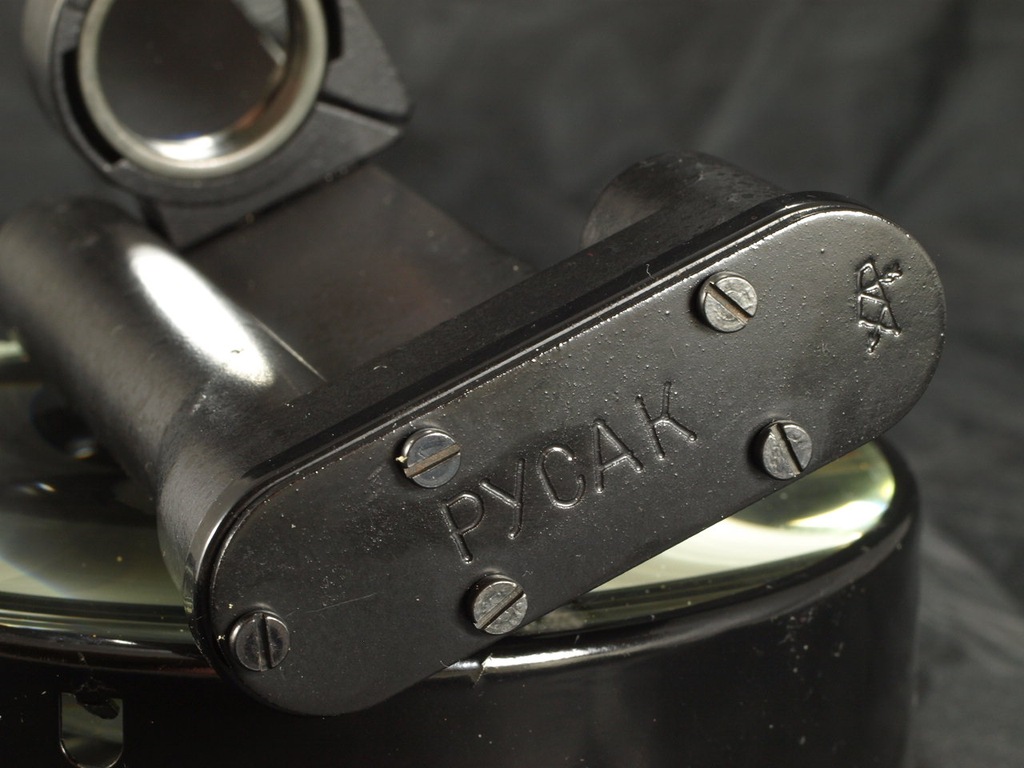

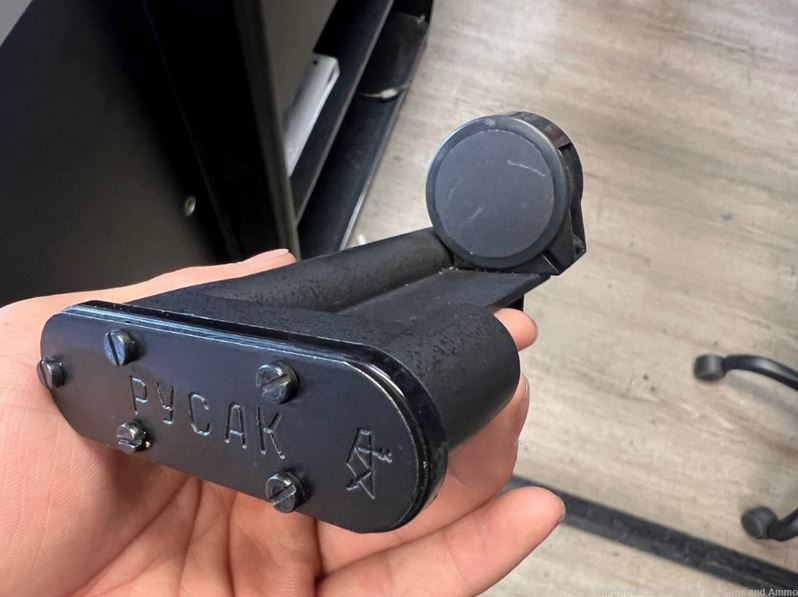

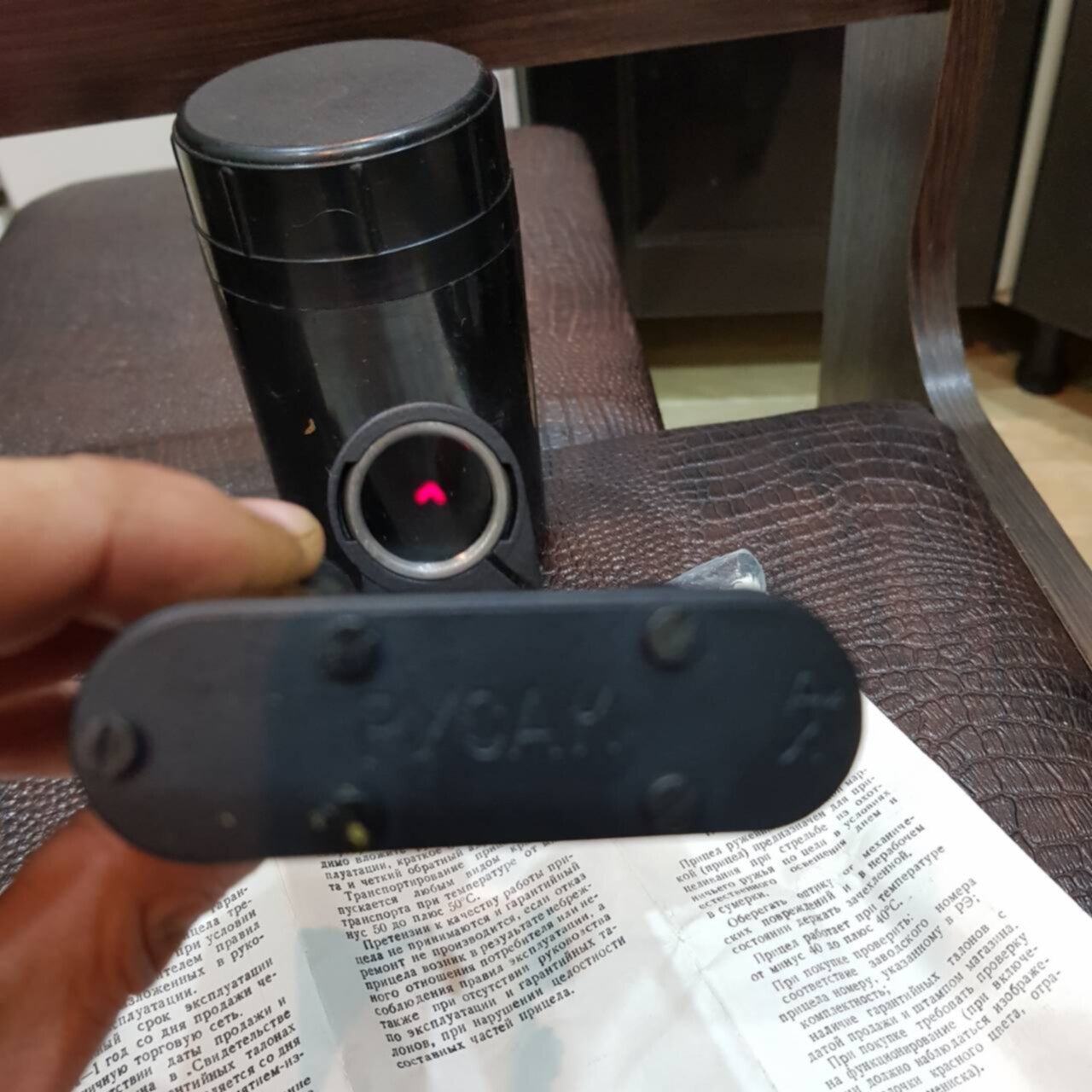

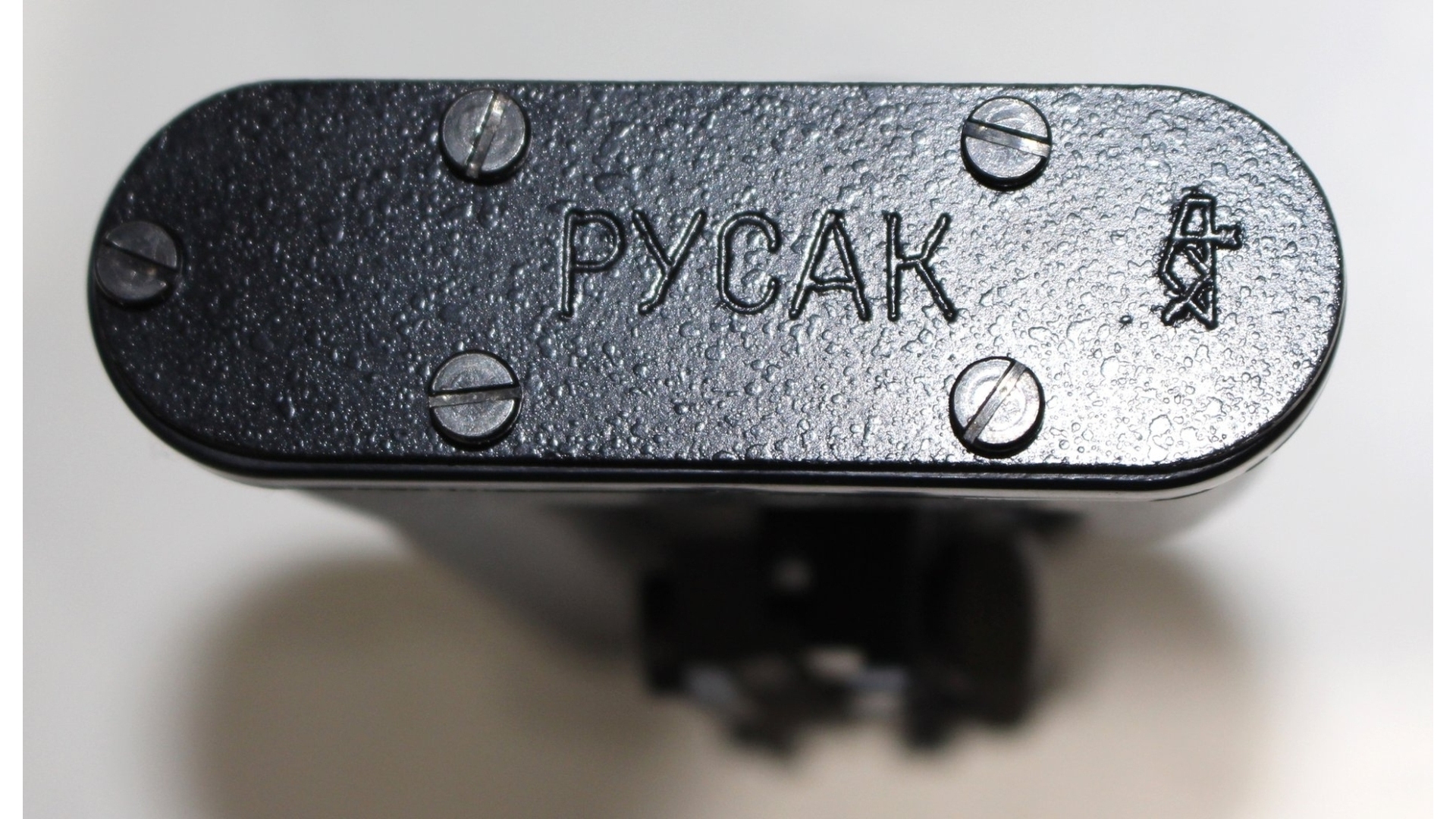

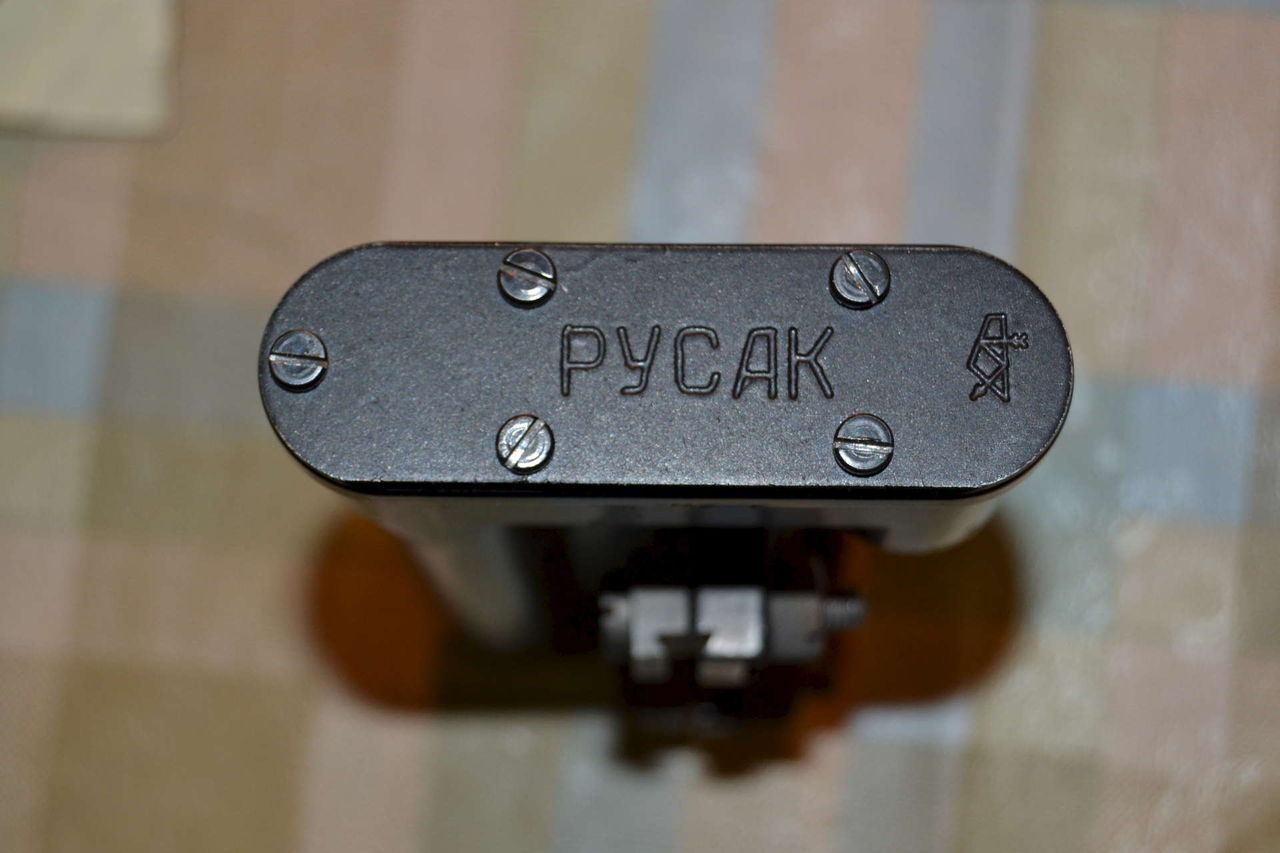

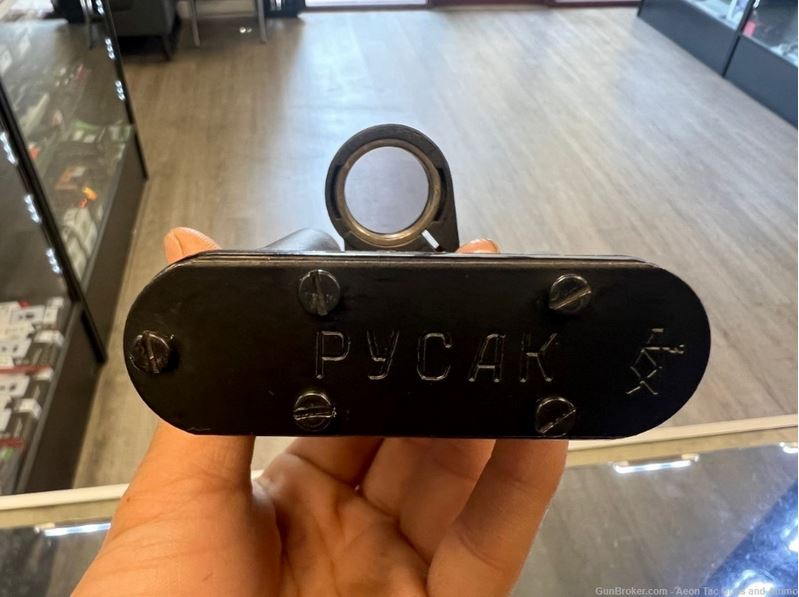

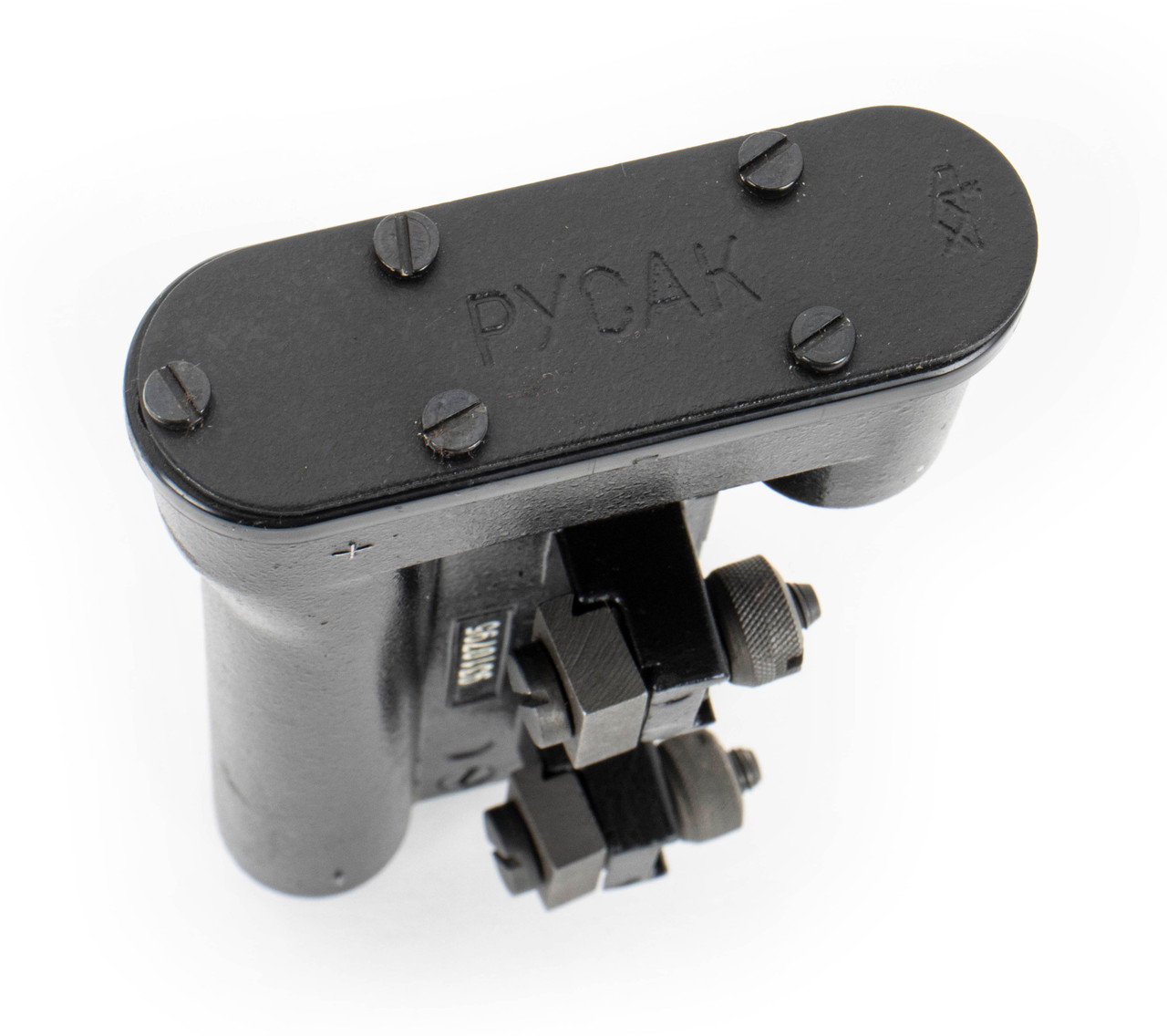

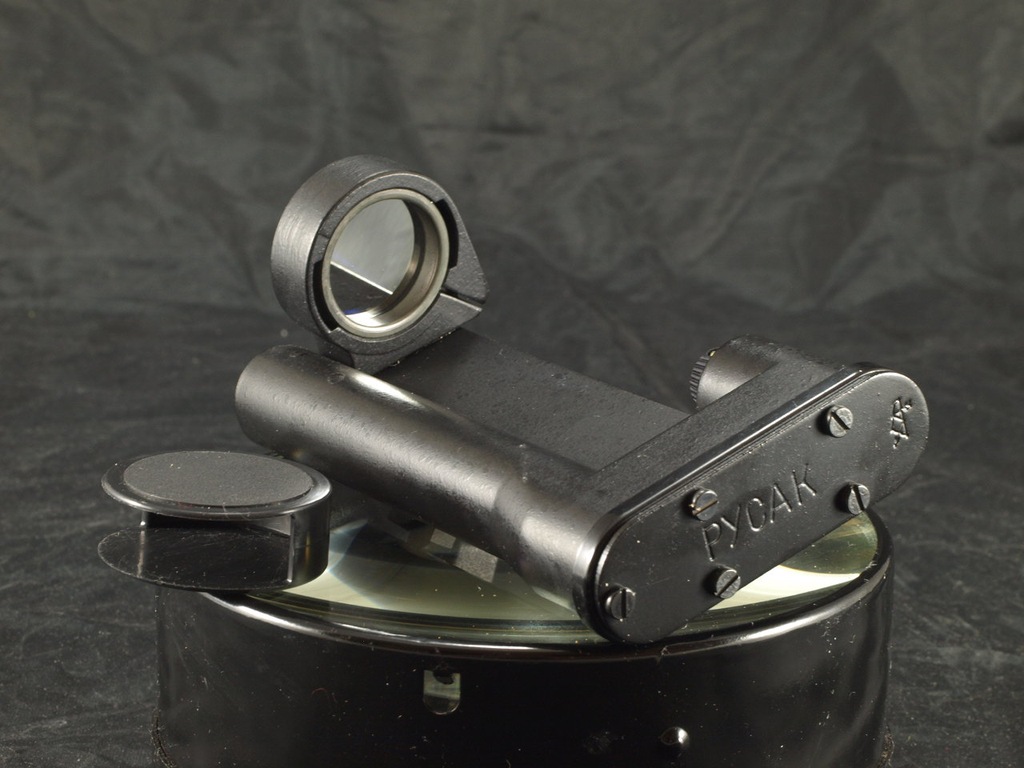

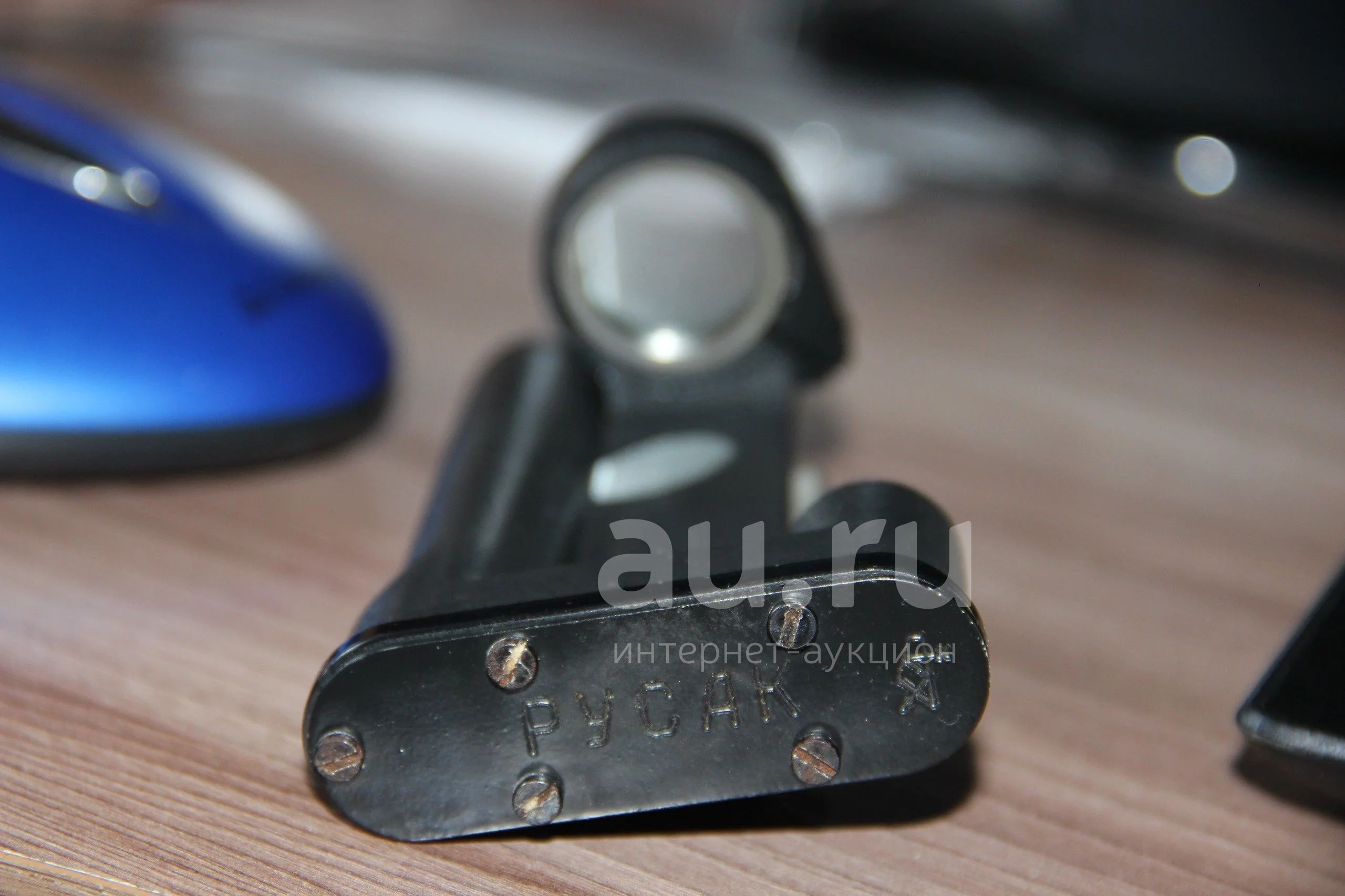

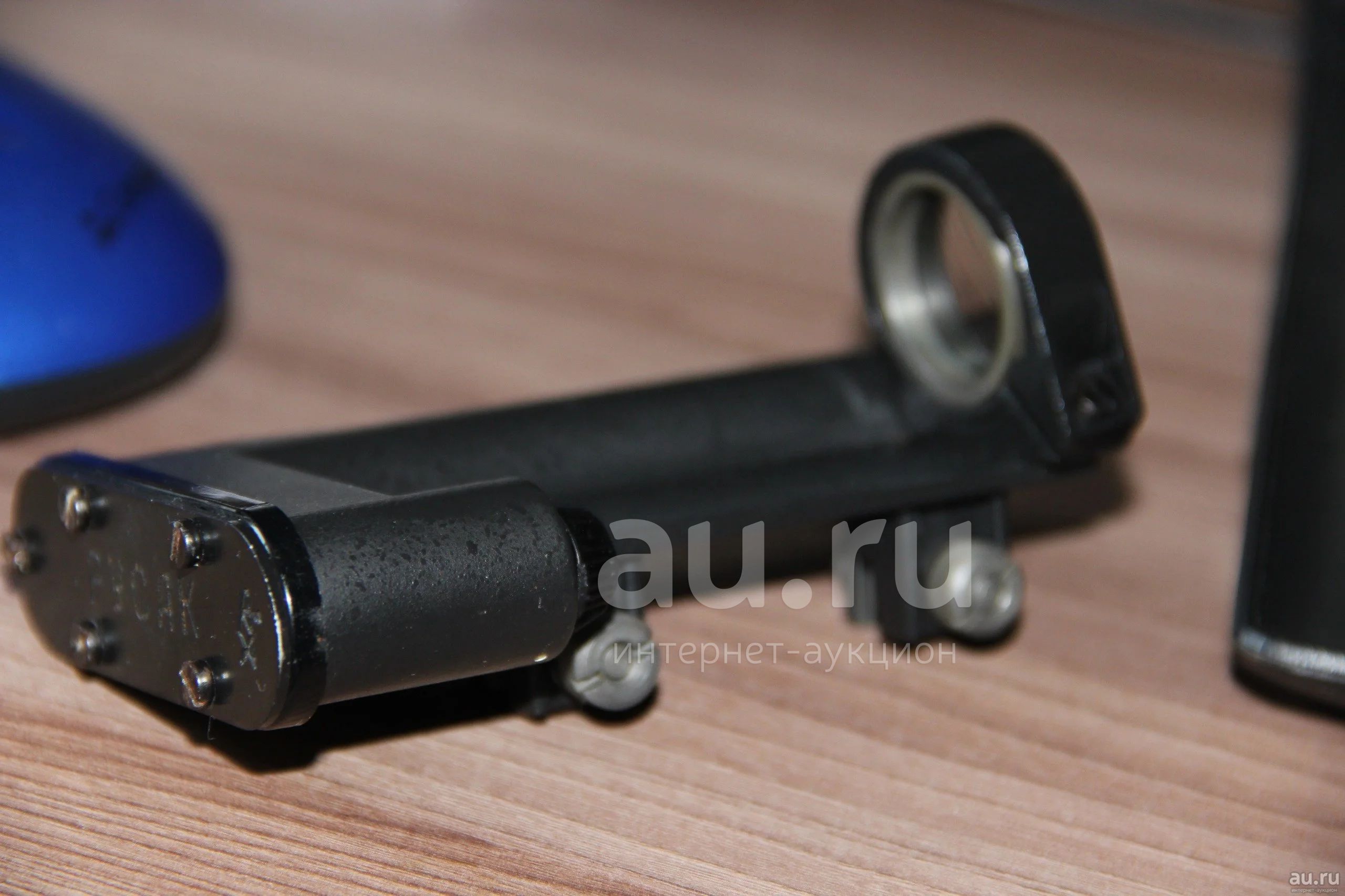

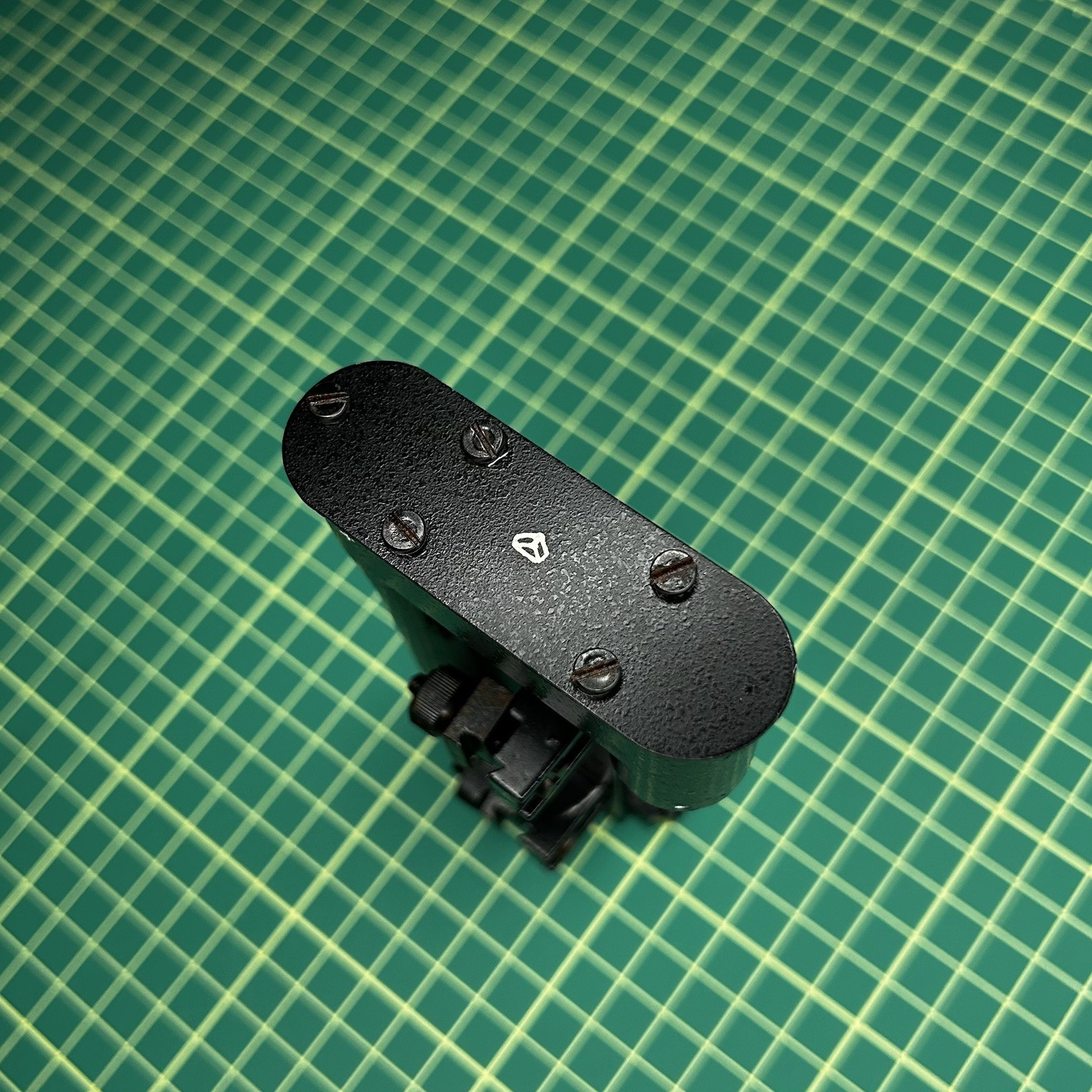

Russian РУСАК sights have the KOMZ logo marked on the rear cap.

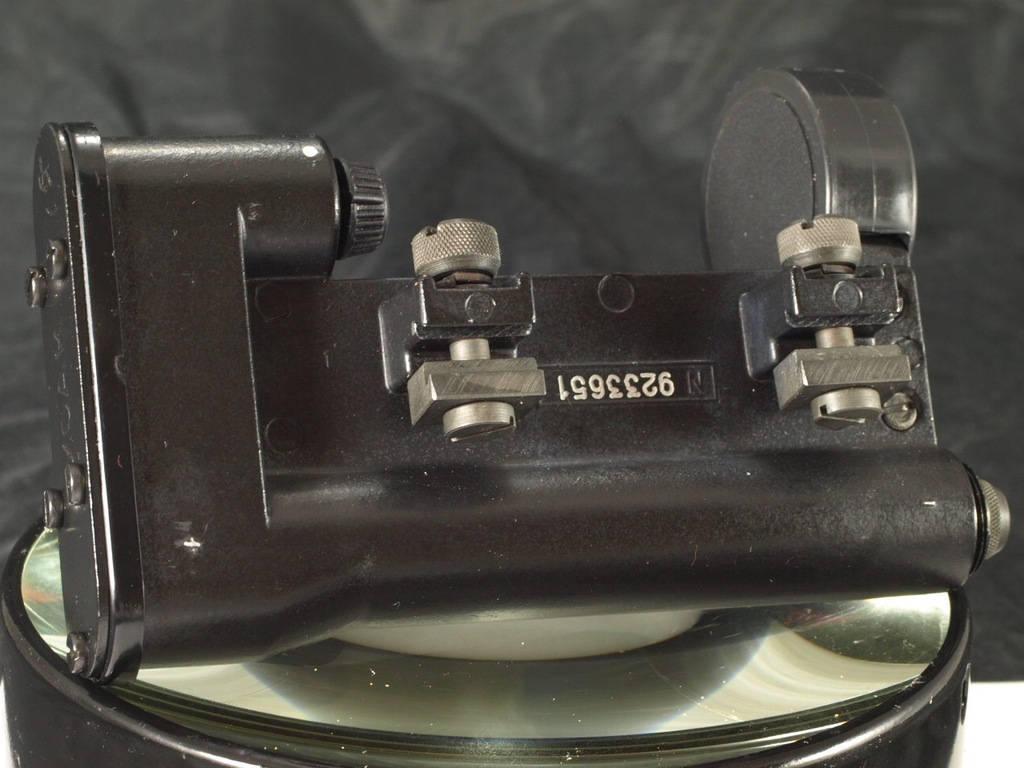

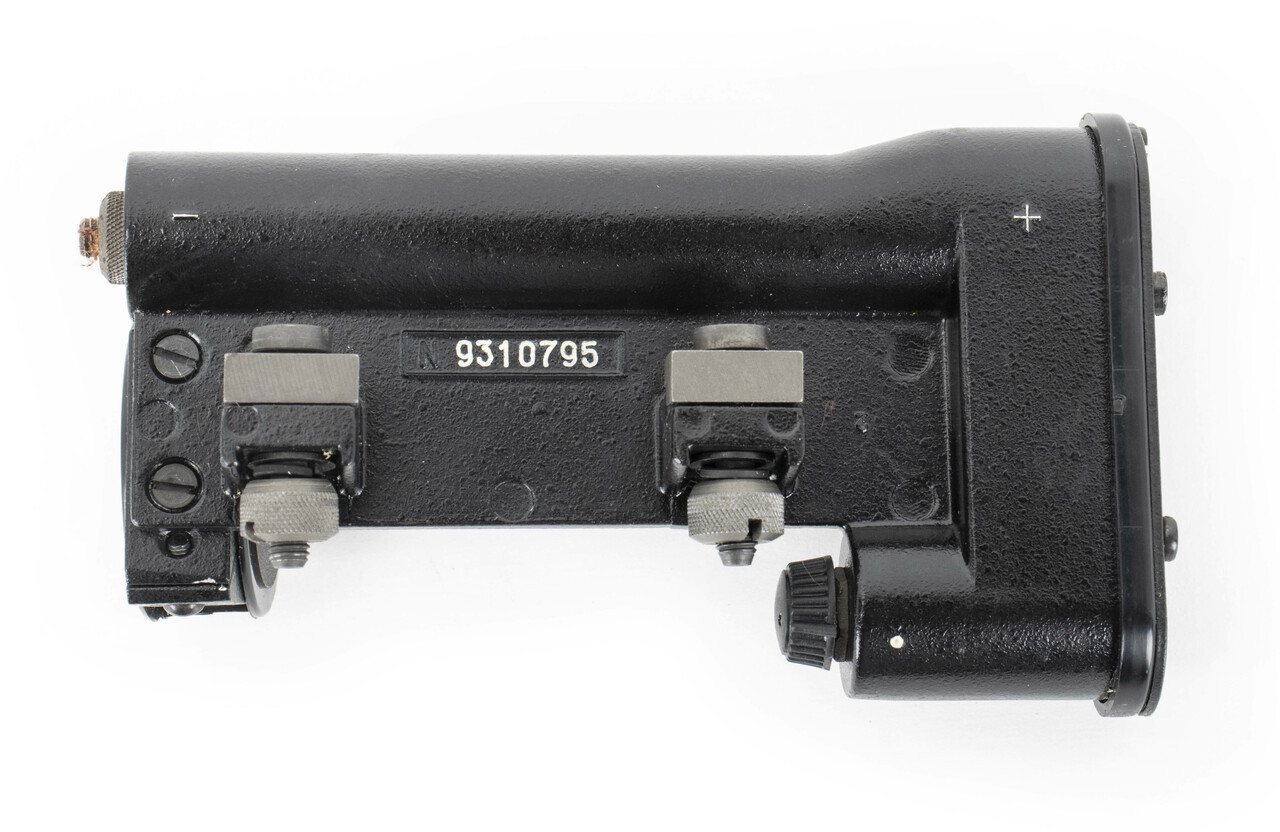

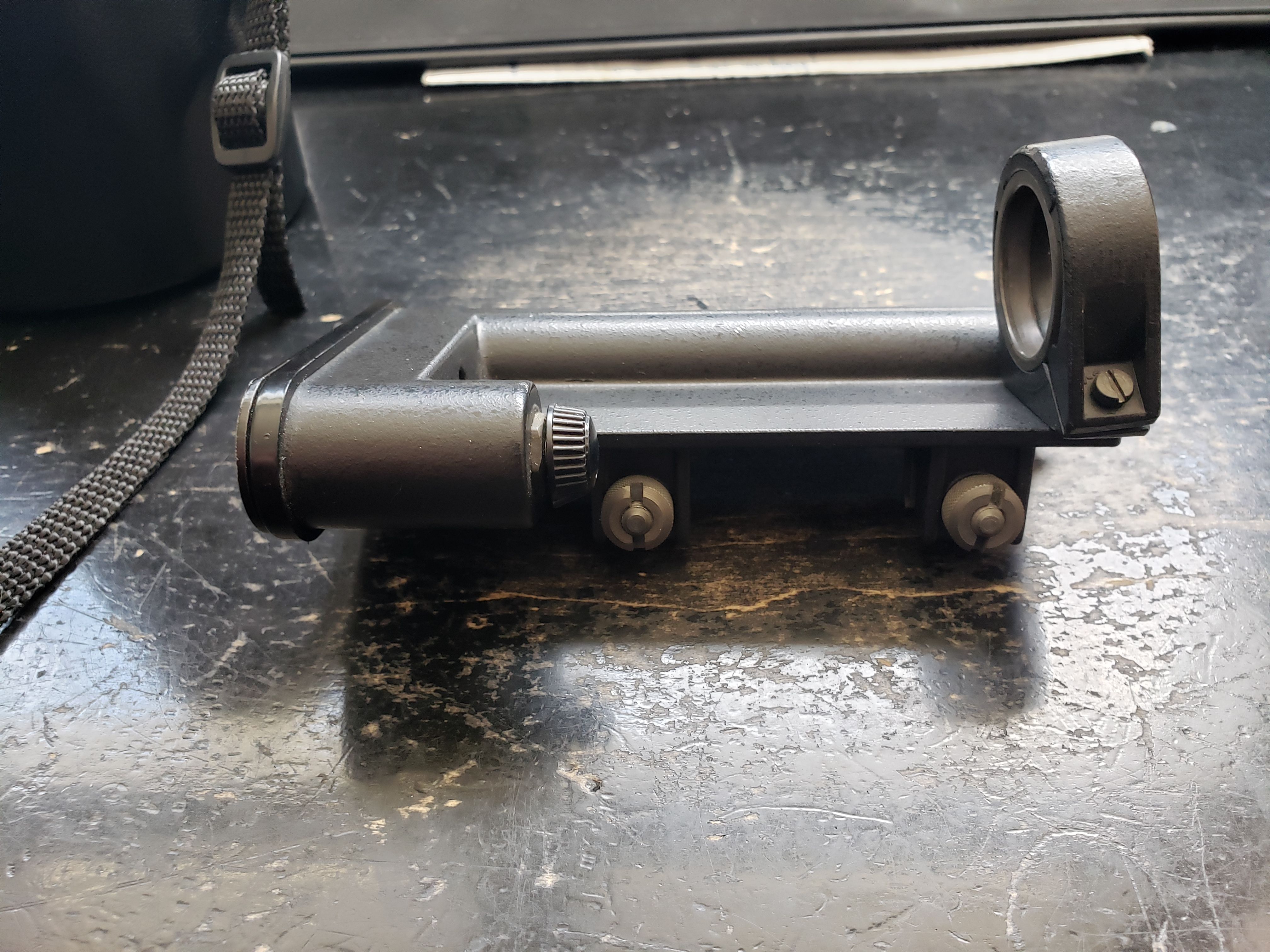

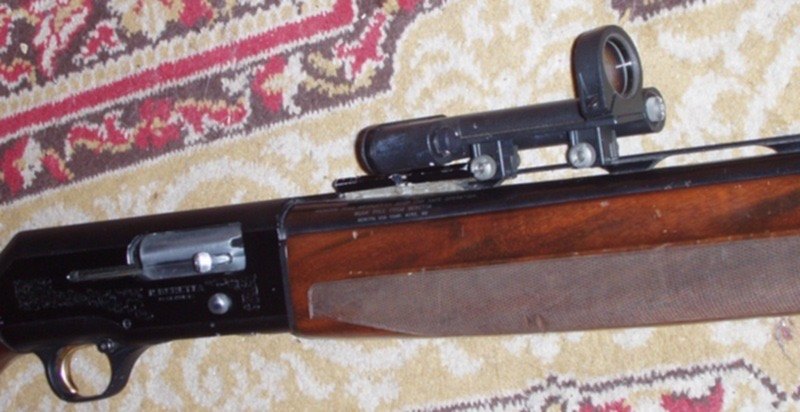

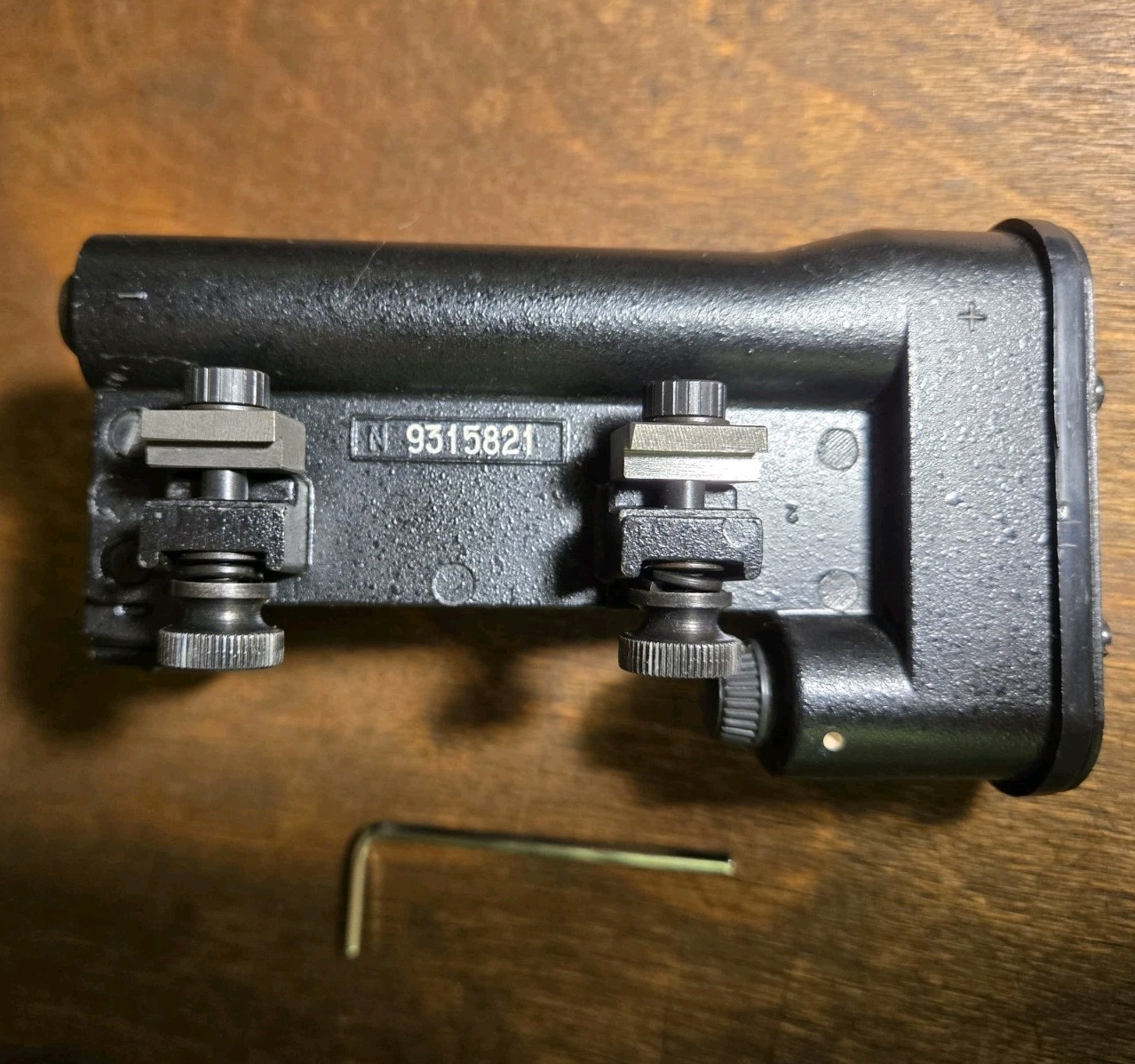

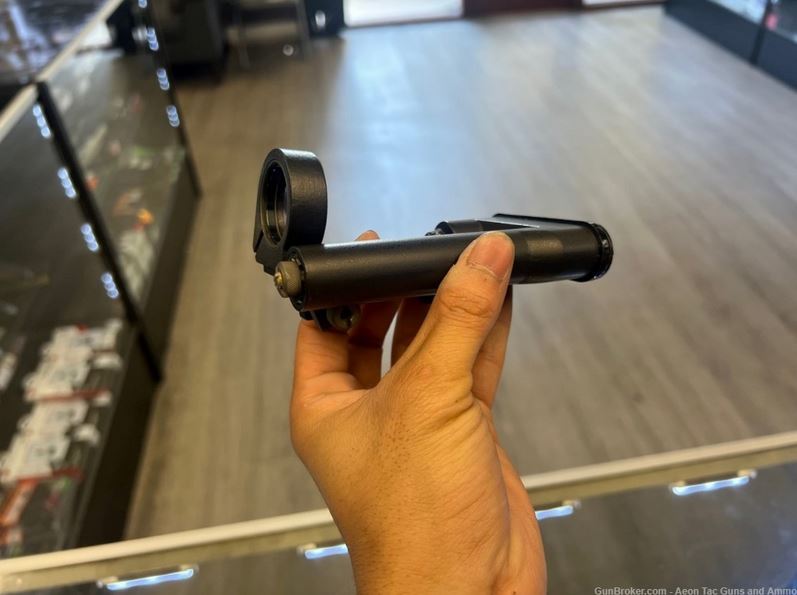

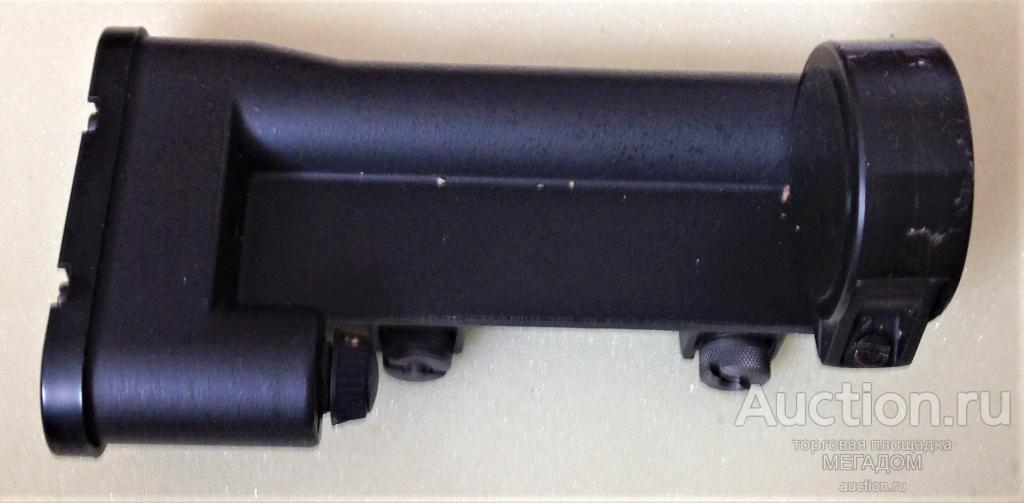

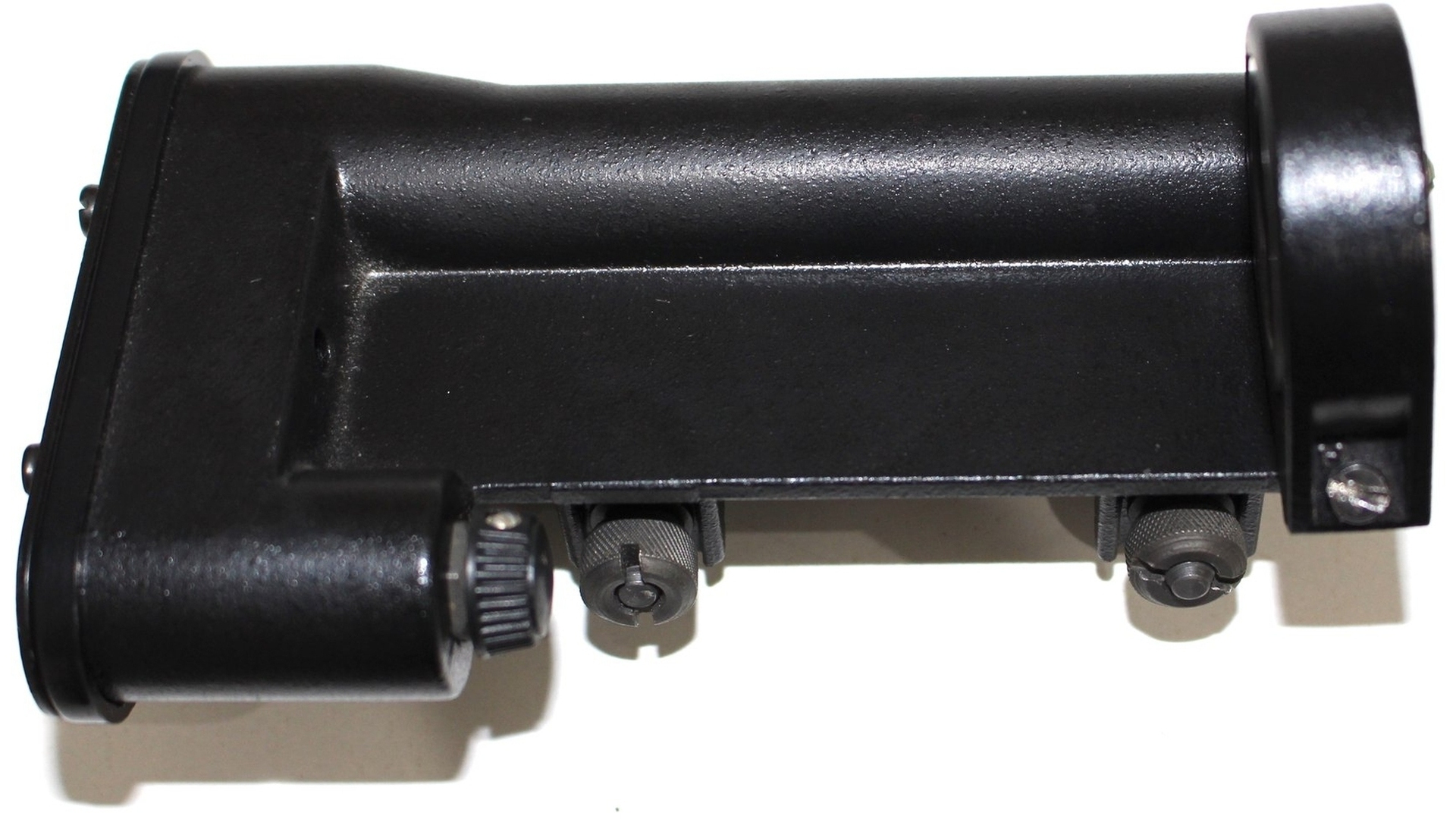

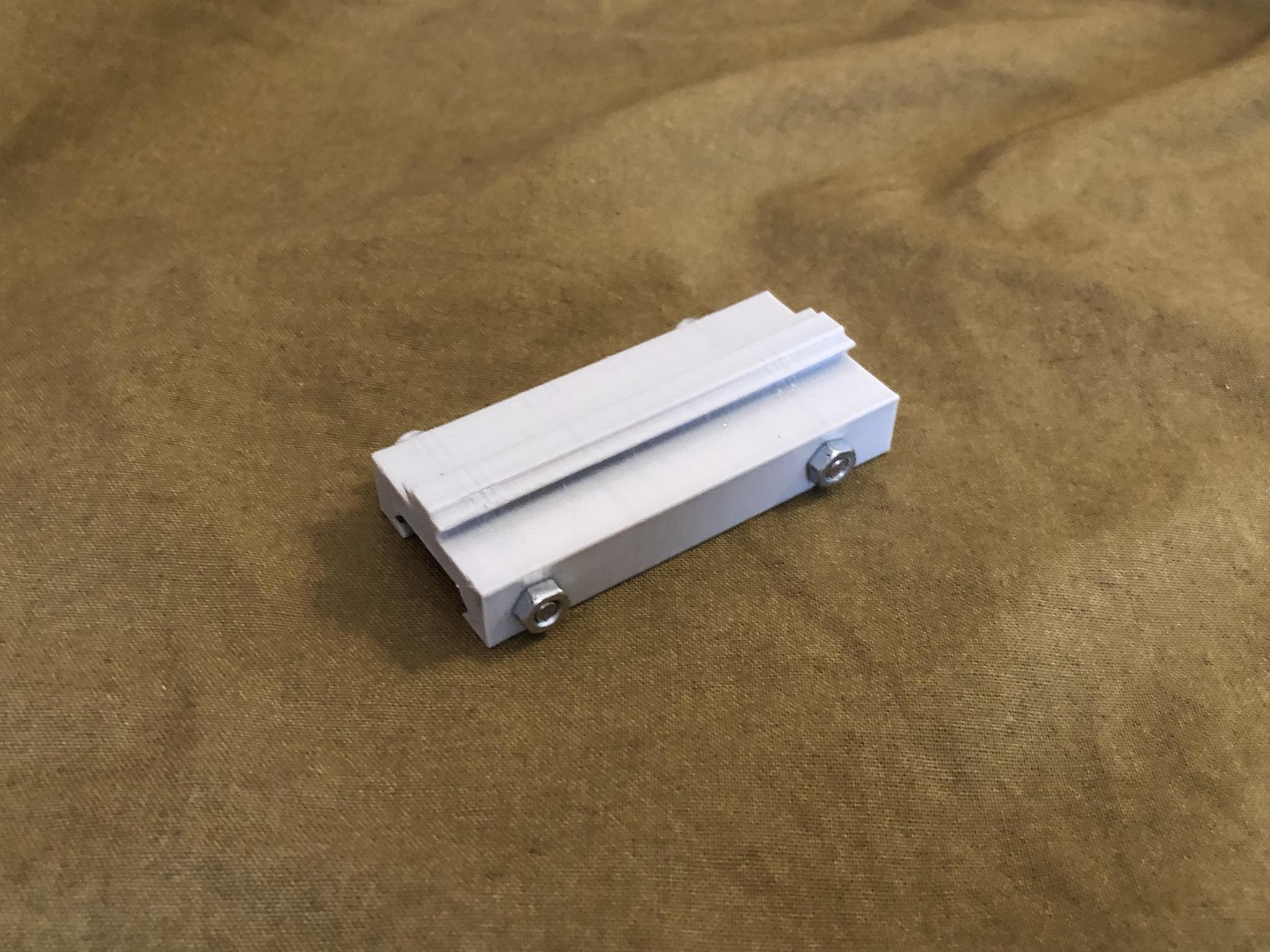

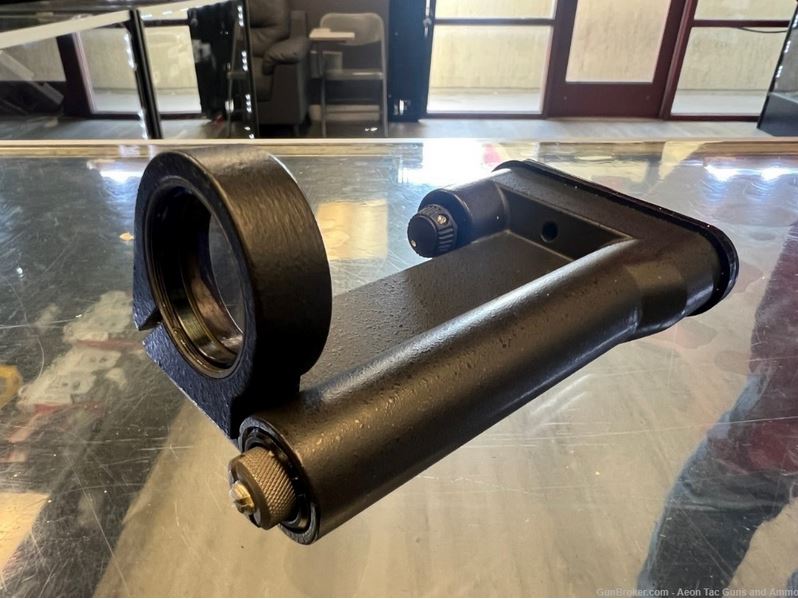

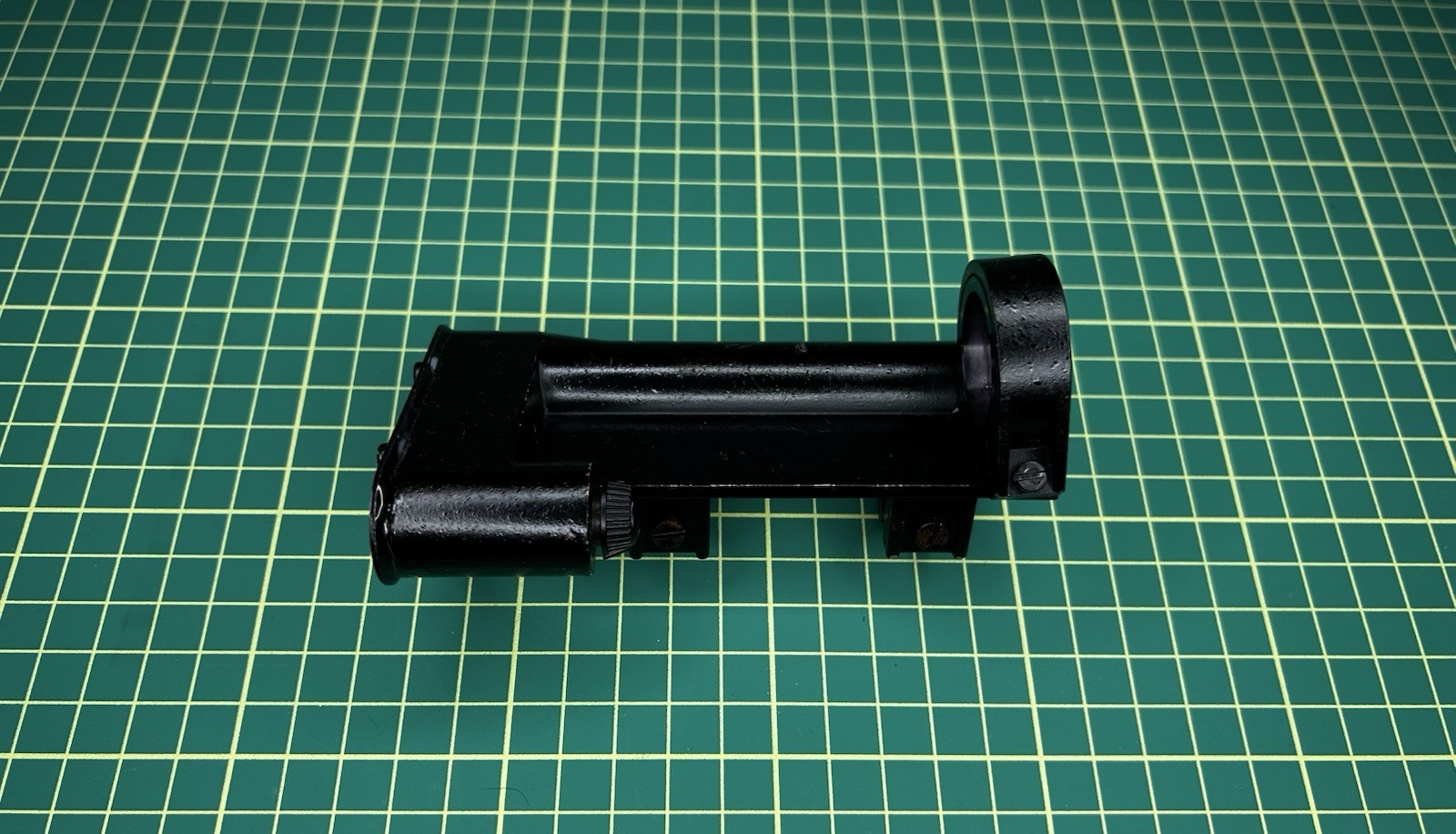

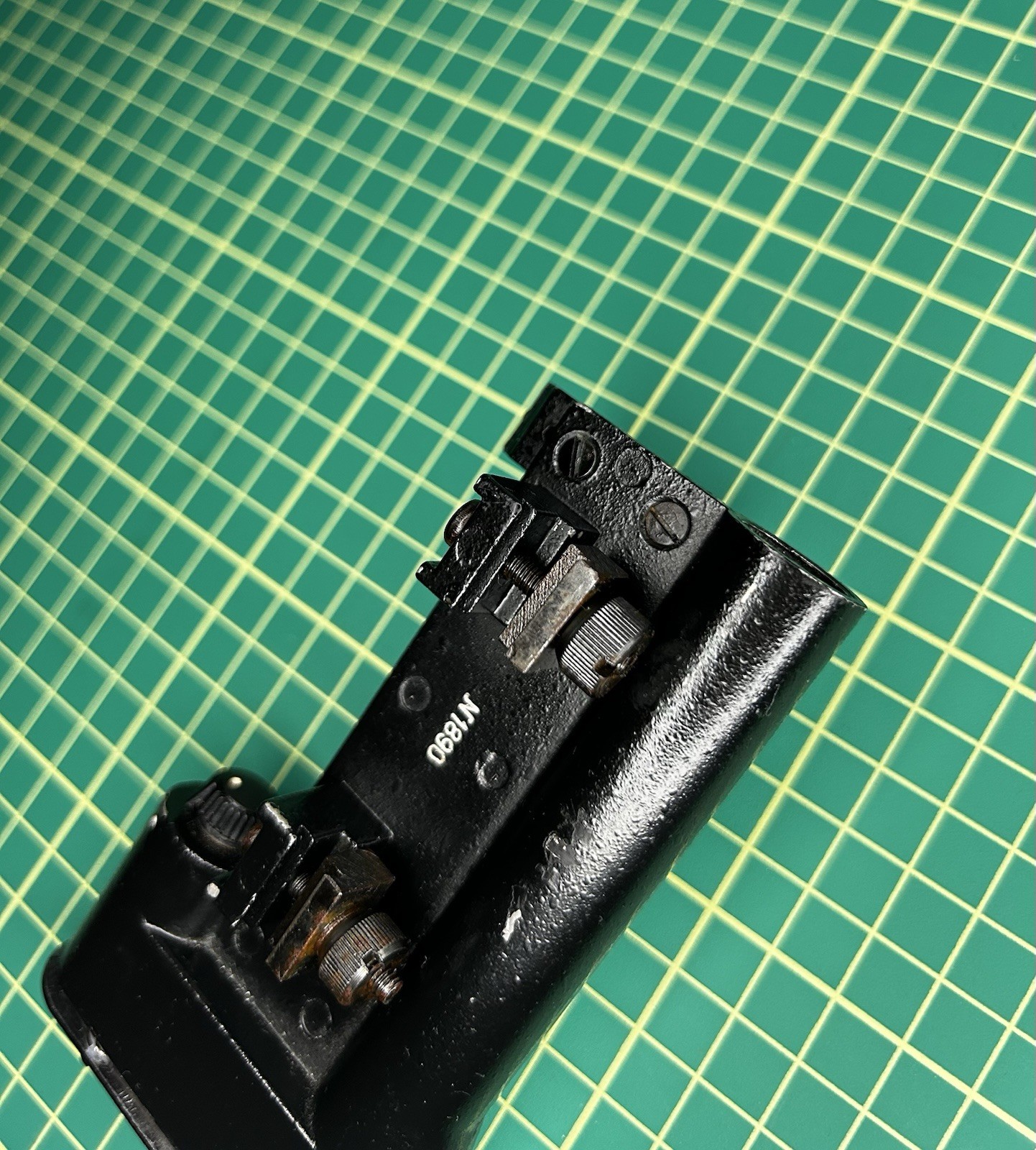

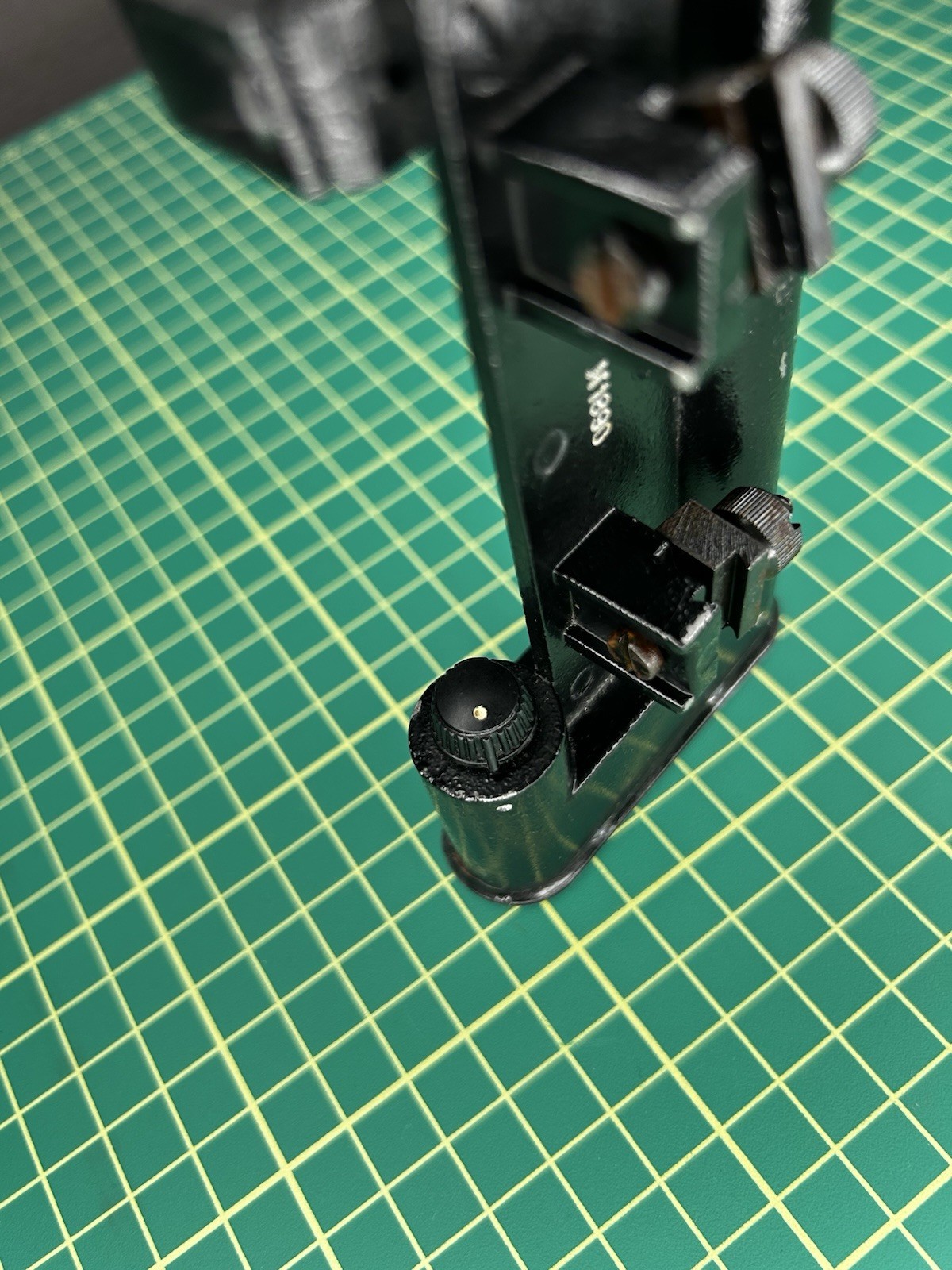

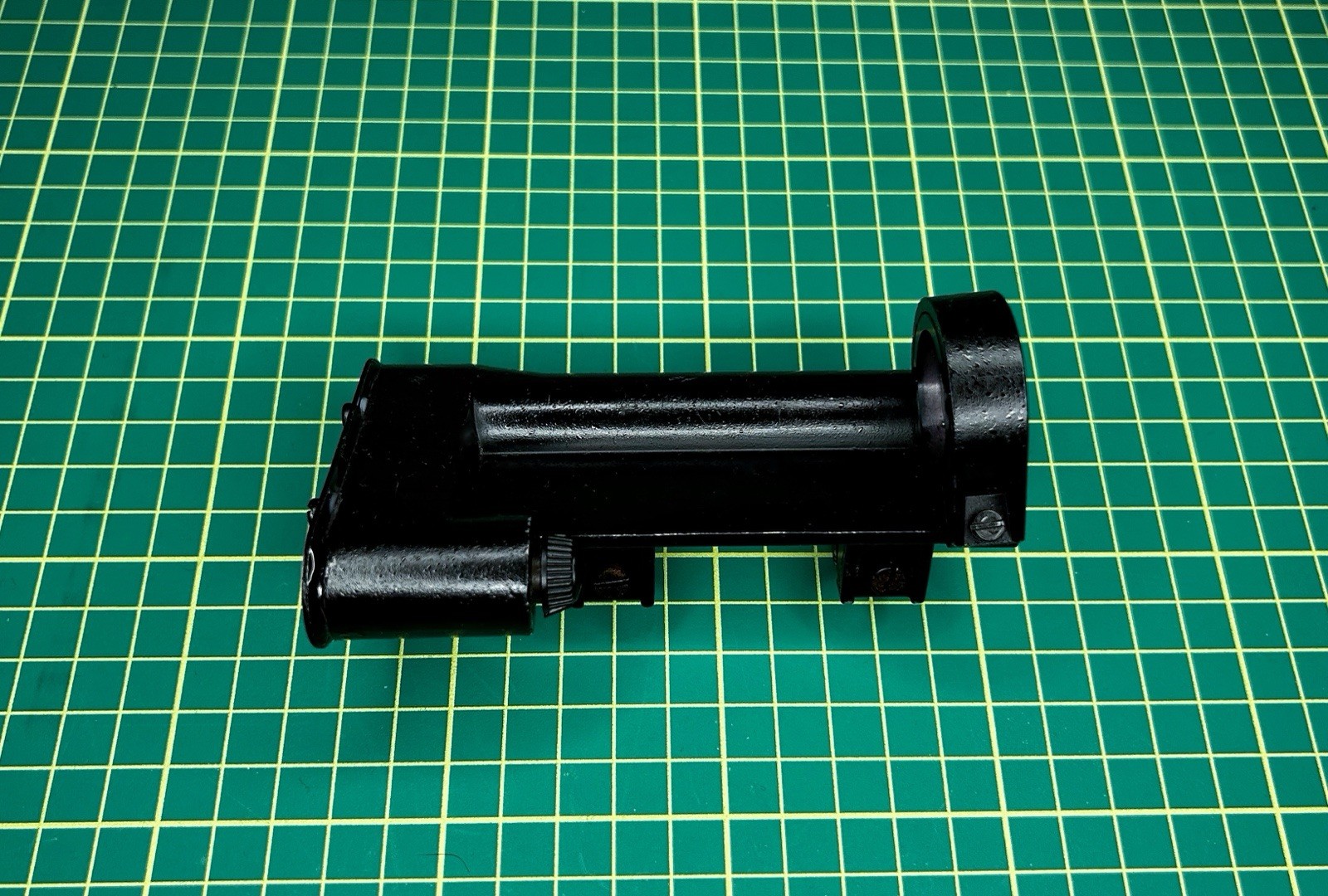

The Rusak has an integrated mount inteded for use with a 11mm weaver style rail.

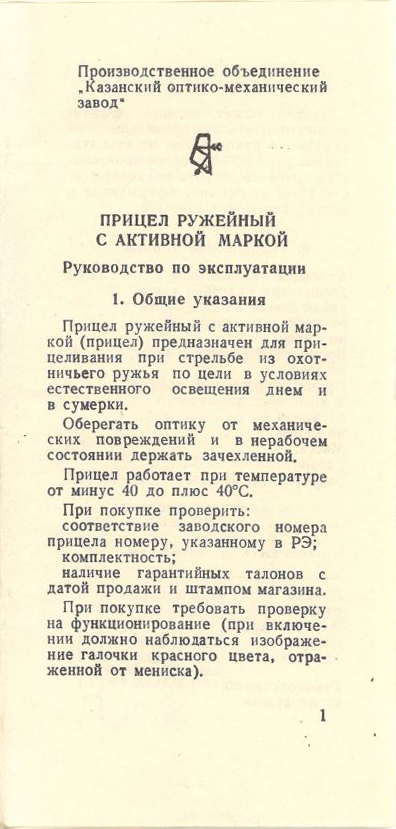

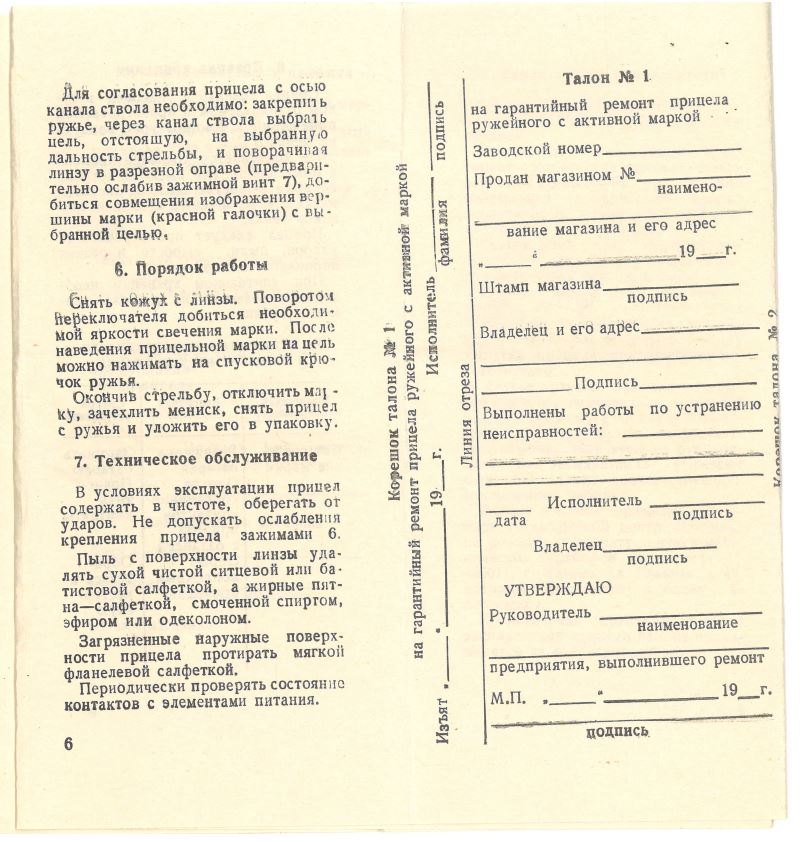

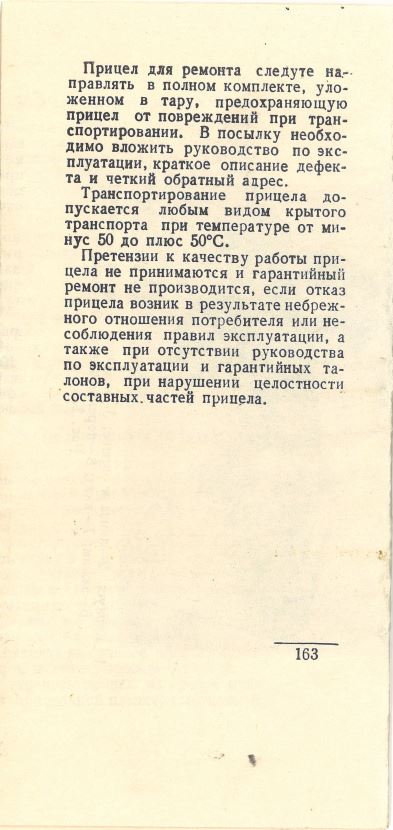

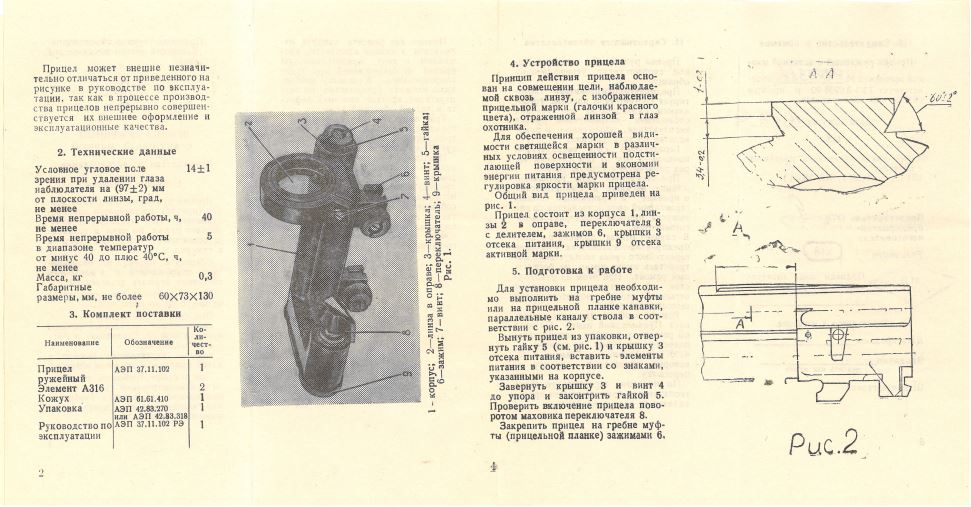

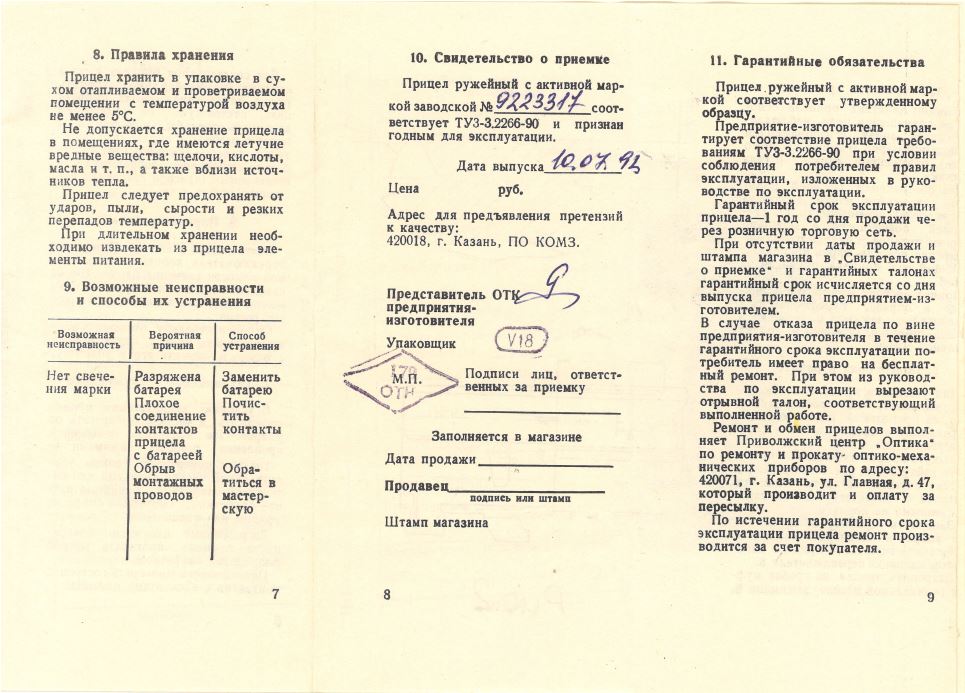

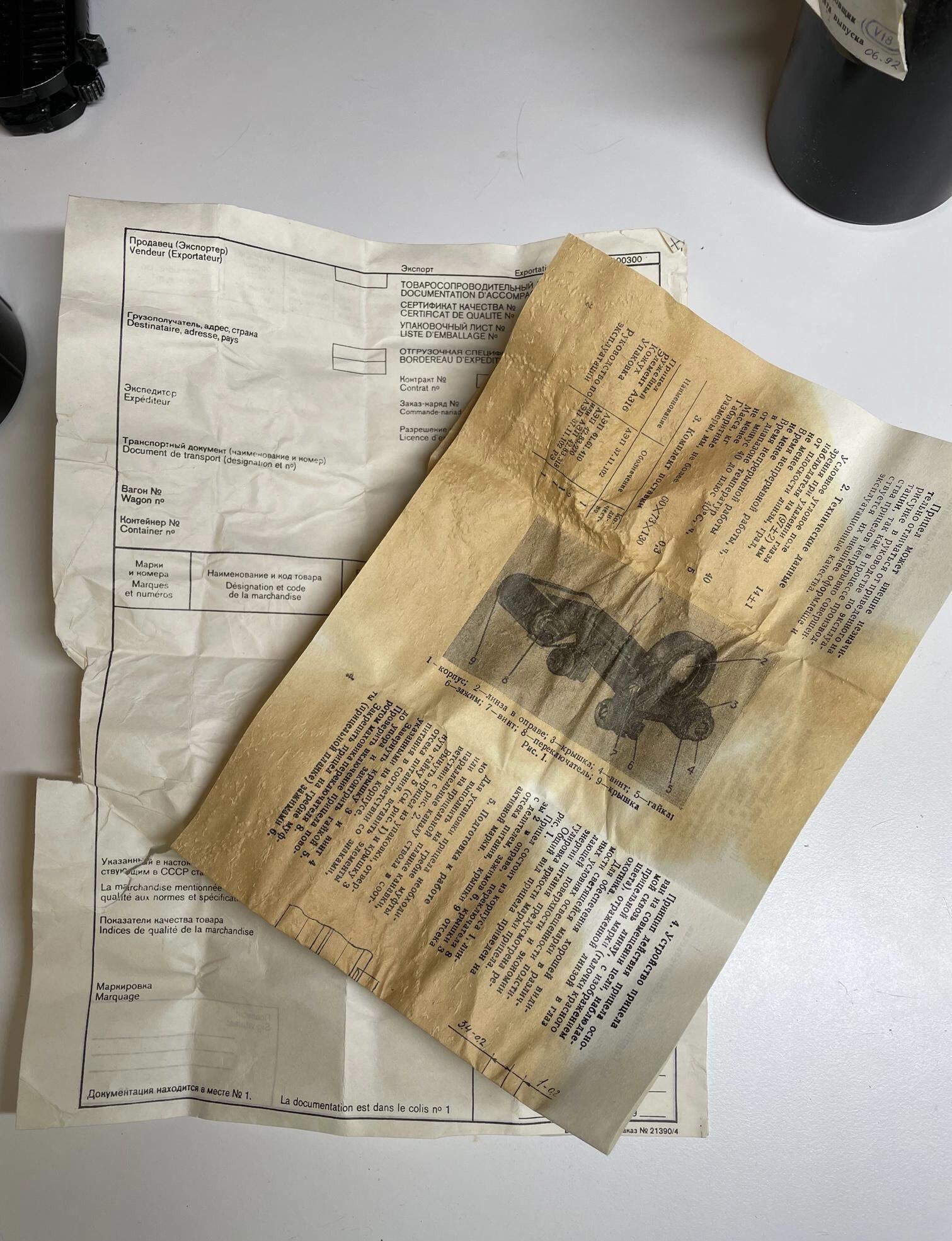

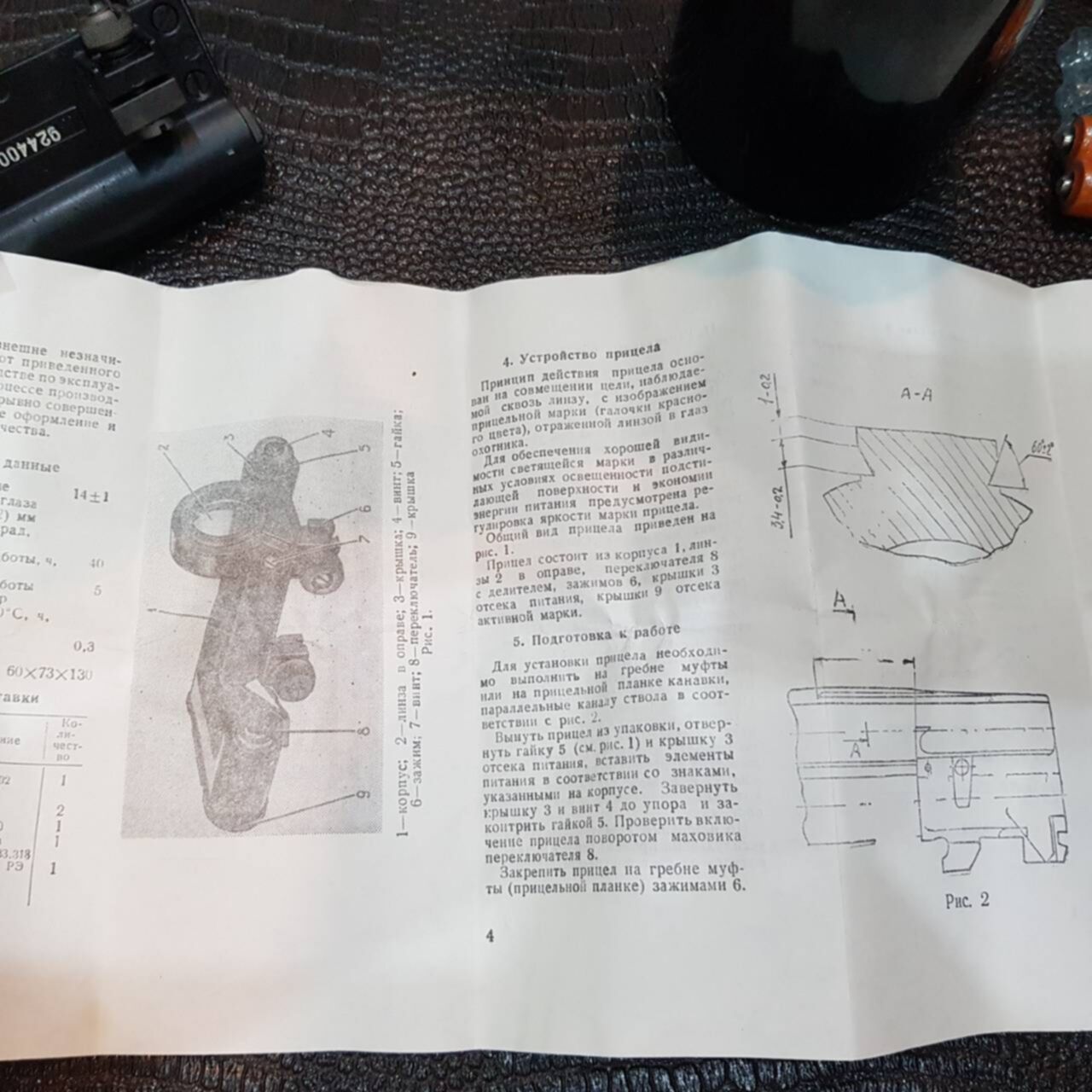

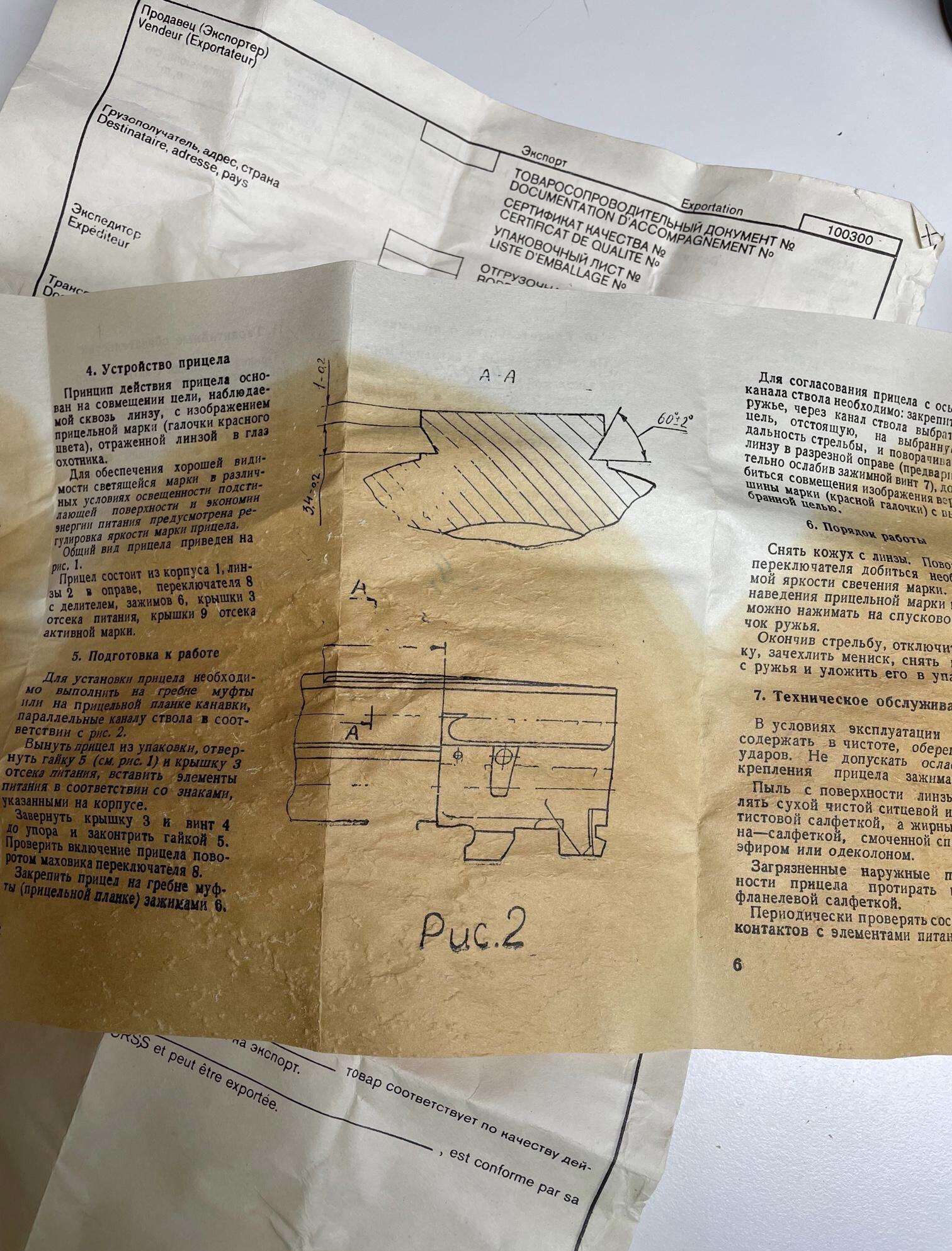

Russian domestic РУСАК manual. Serial number is for 1992 dated scope with a October 7, 1992 inspection date. Diagram 2 appears to be the action of a break action shotgun.

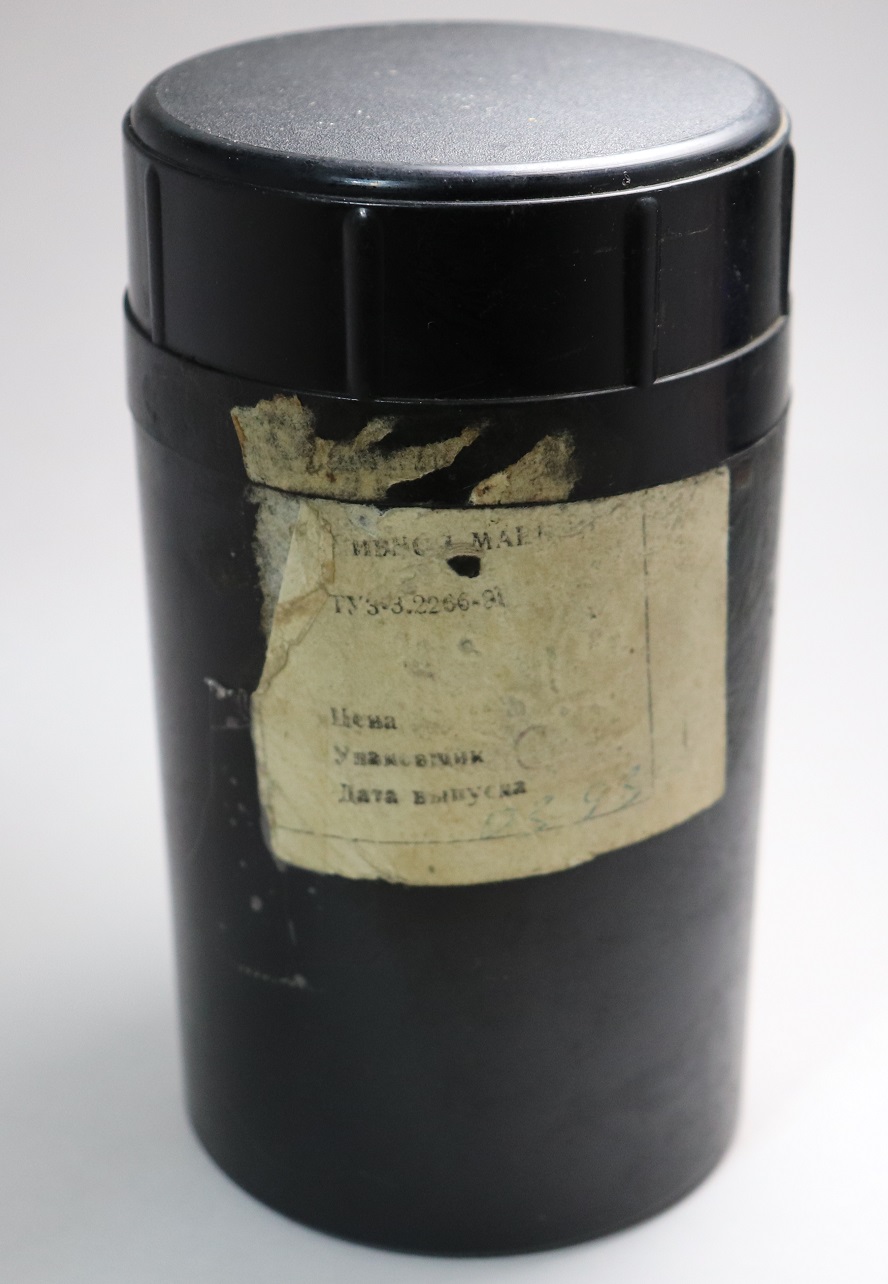

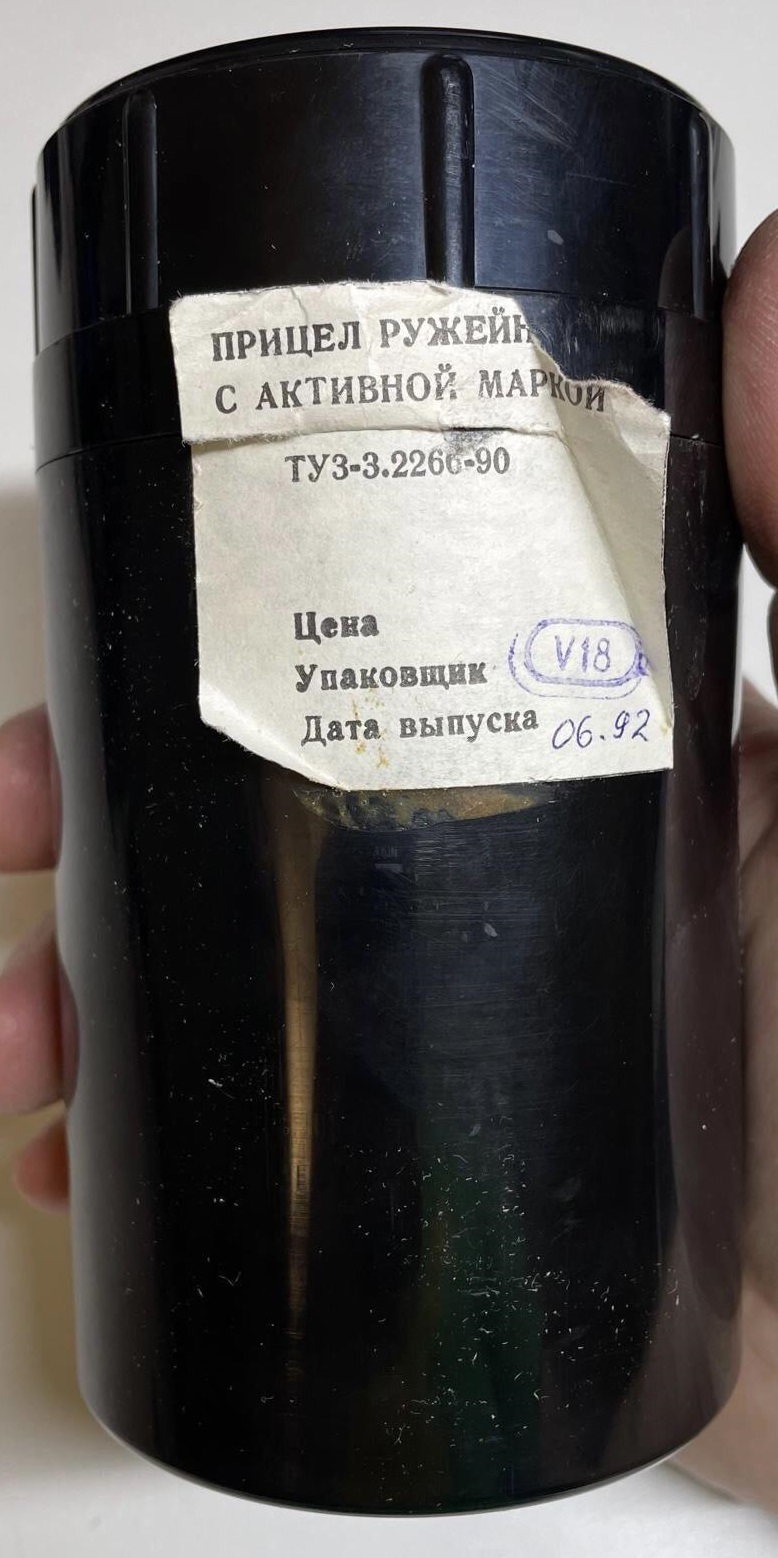

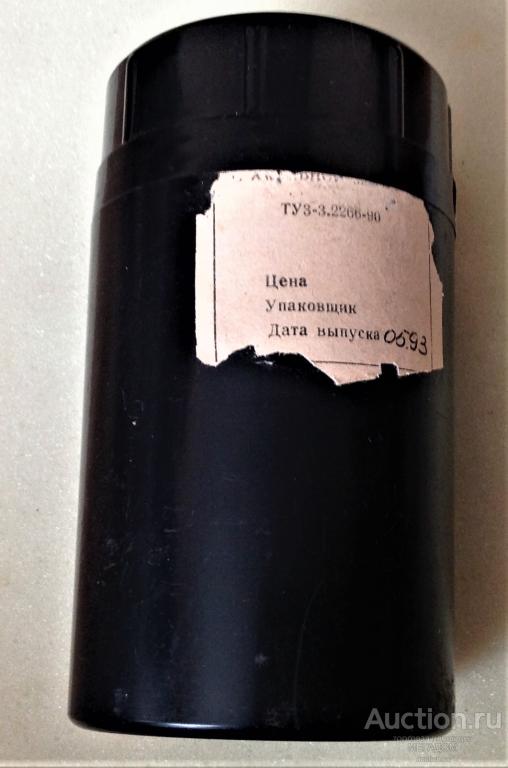

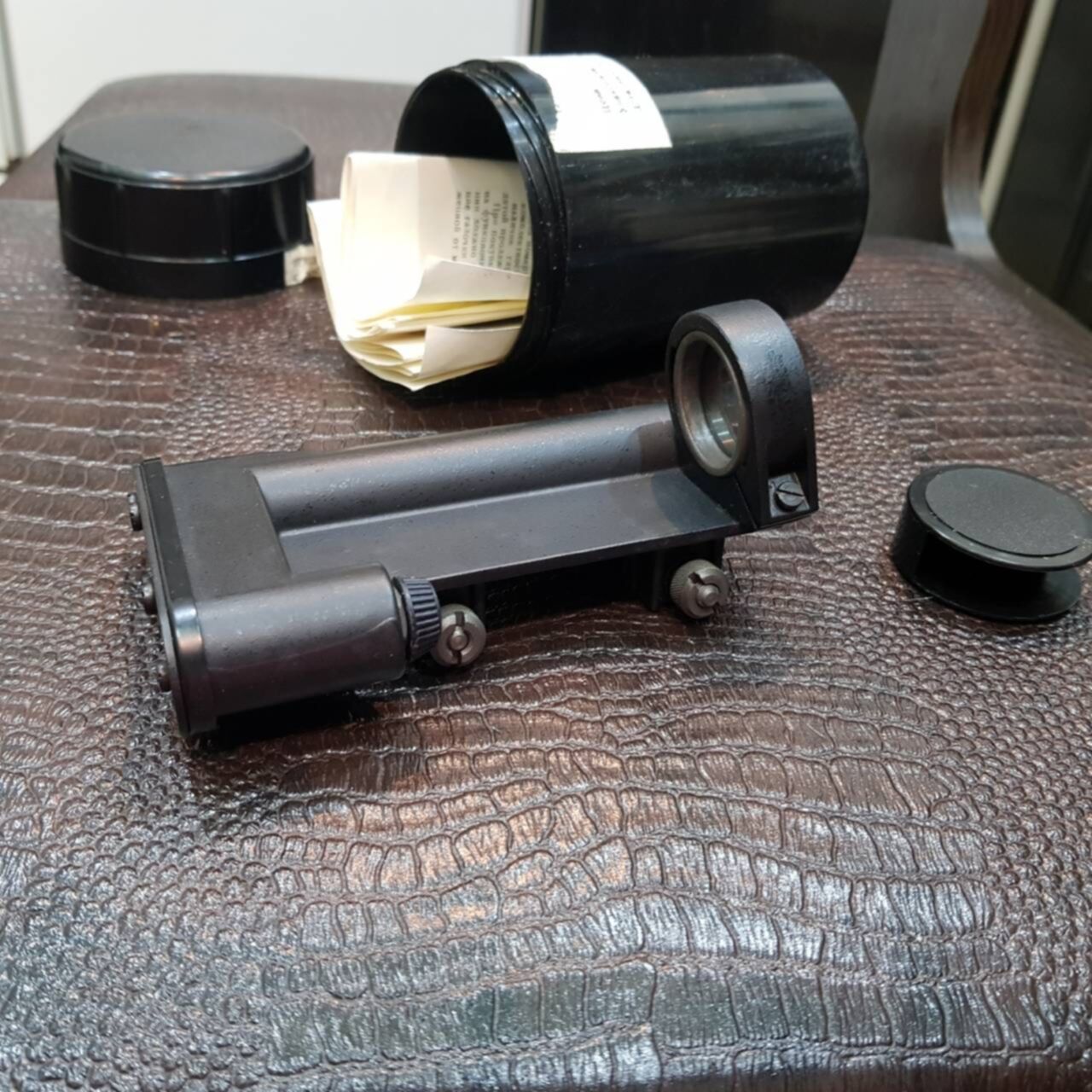

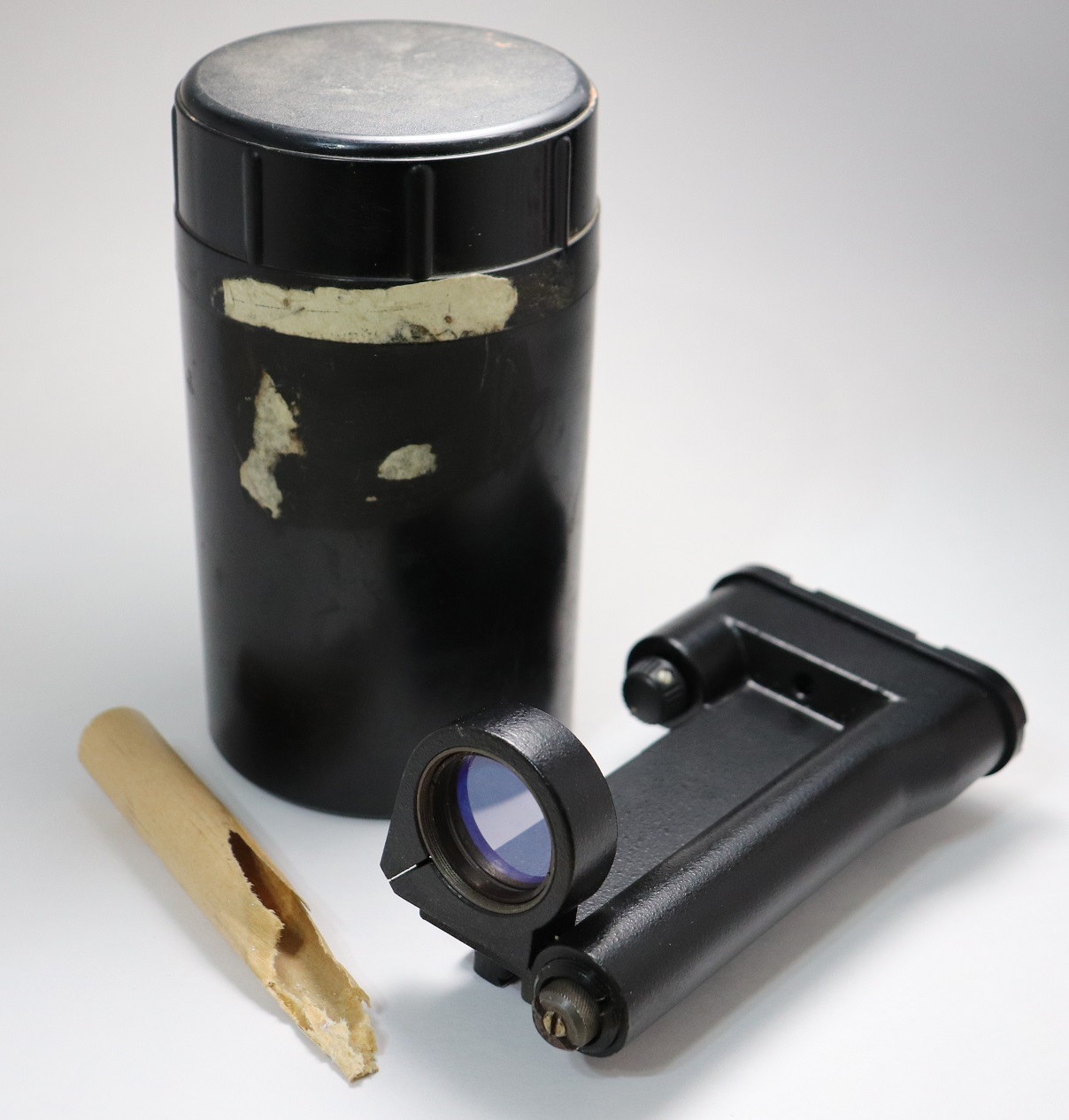

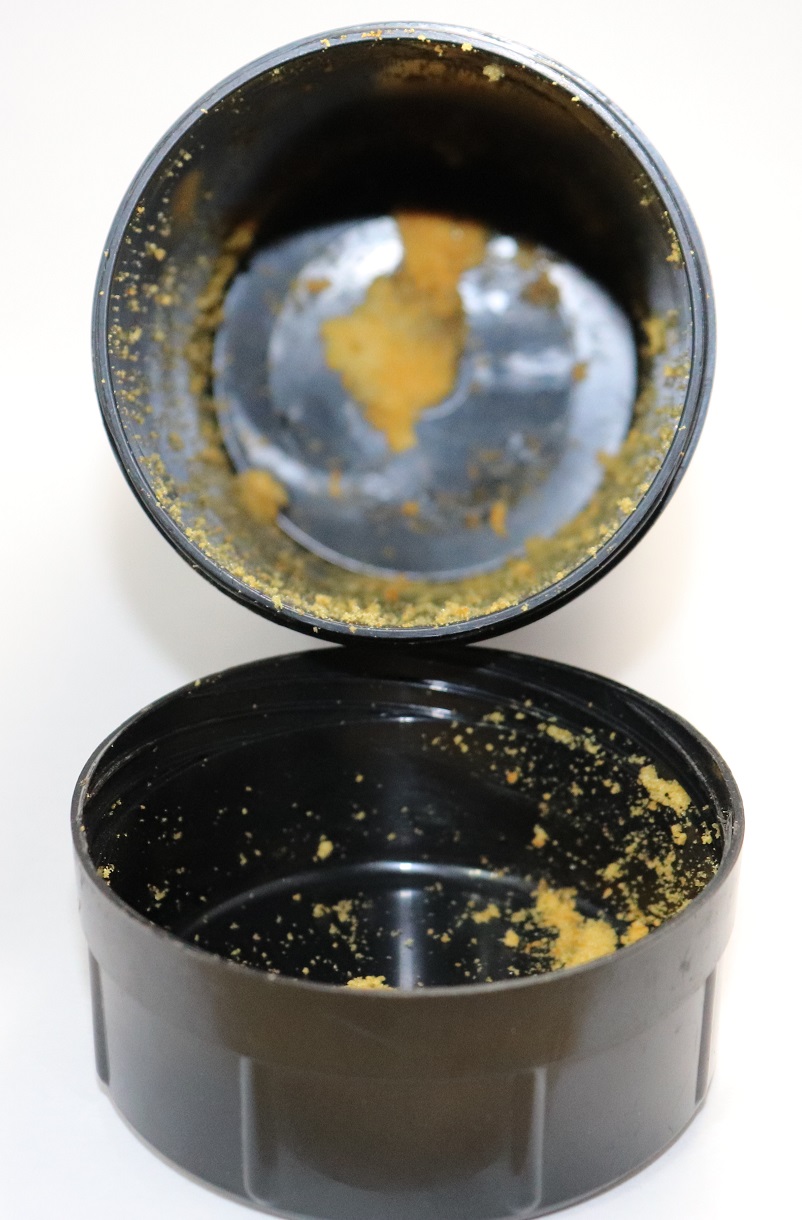

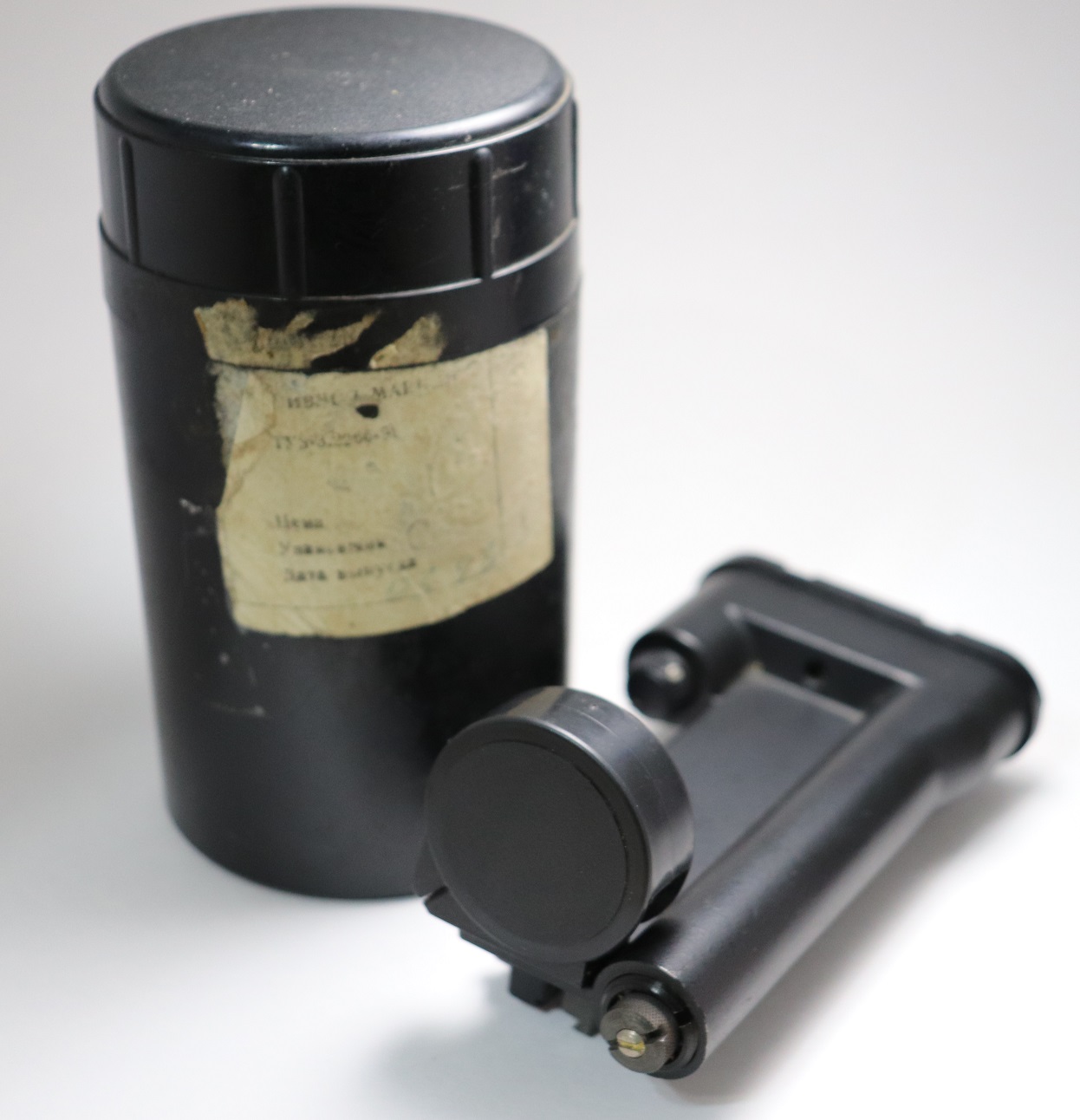

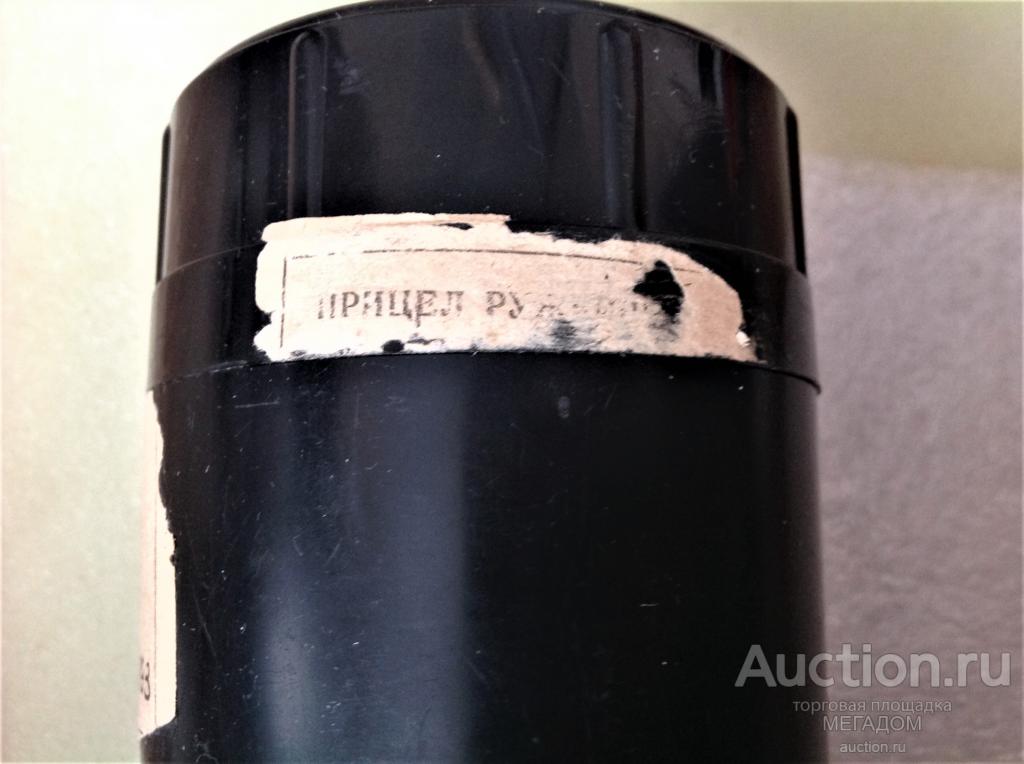

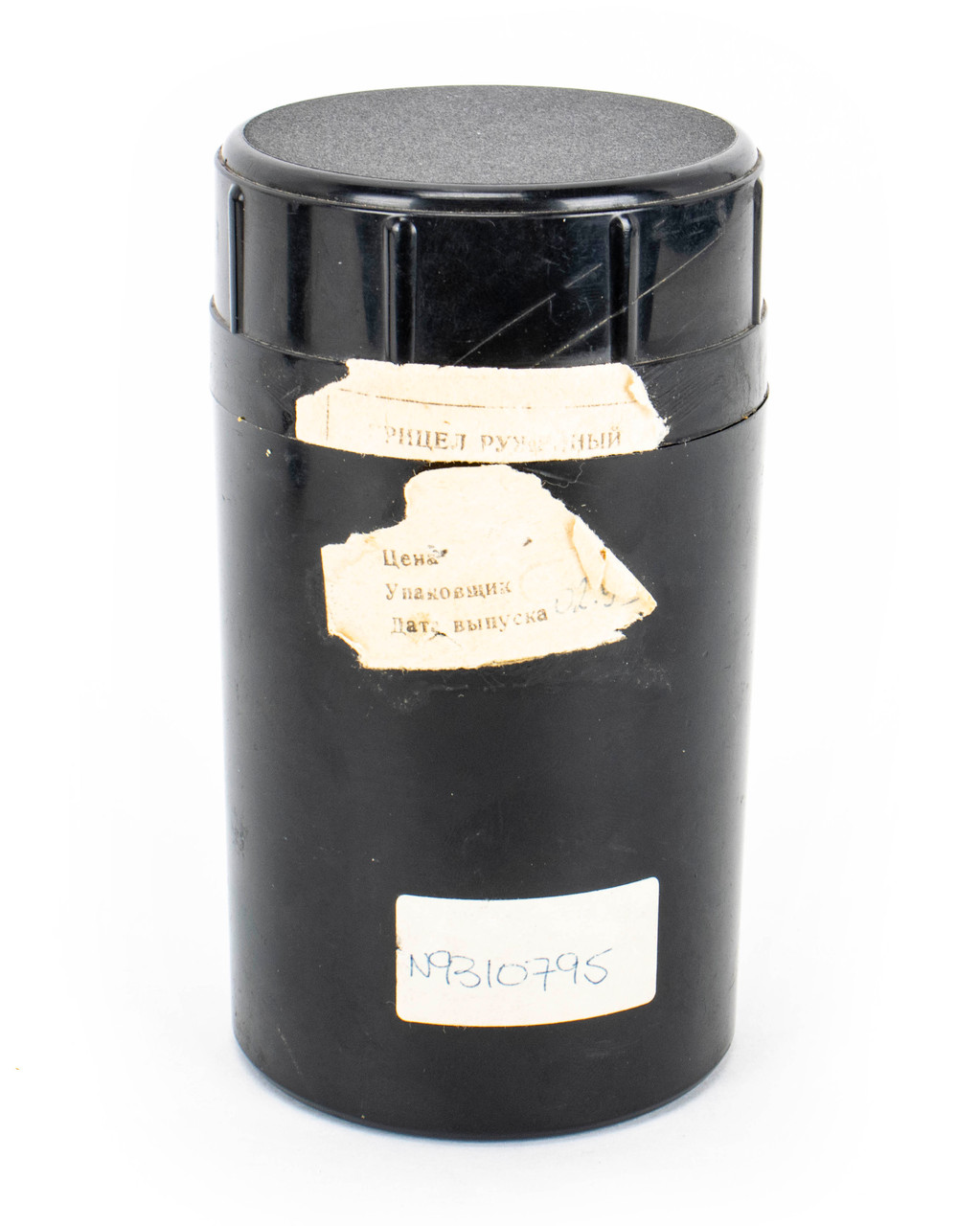

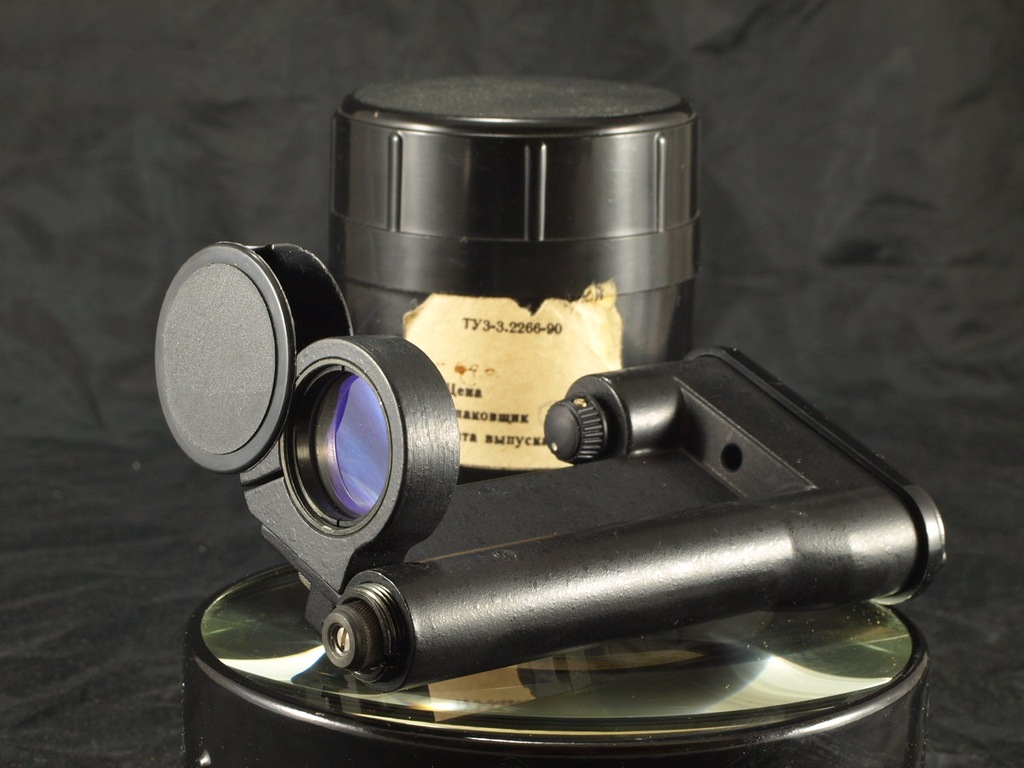

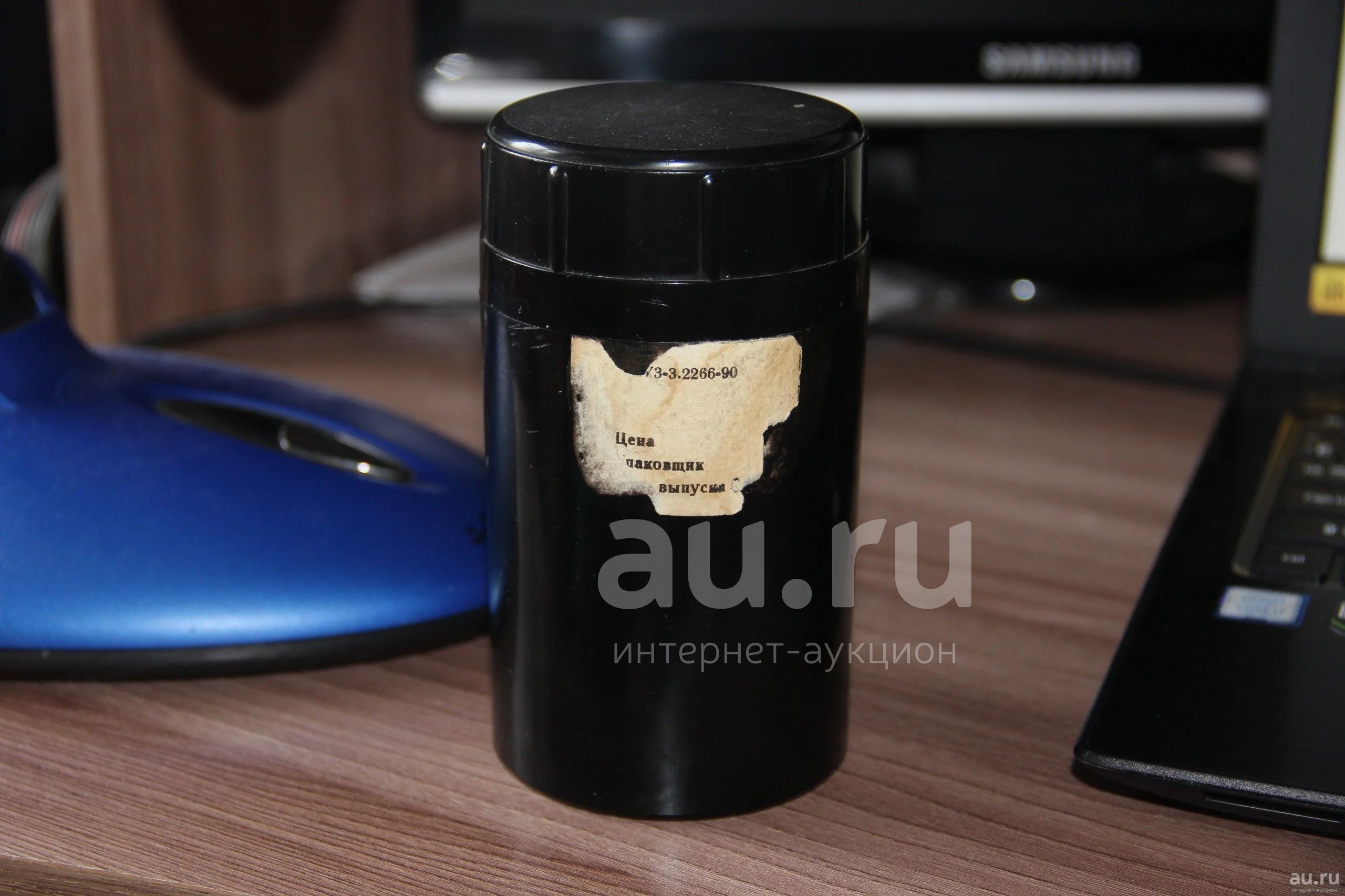

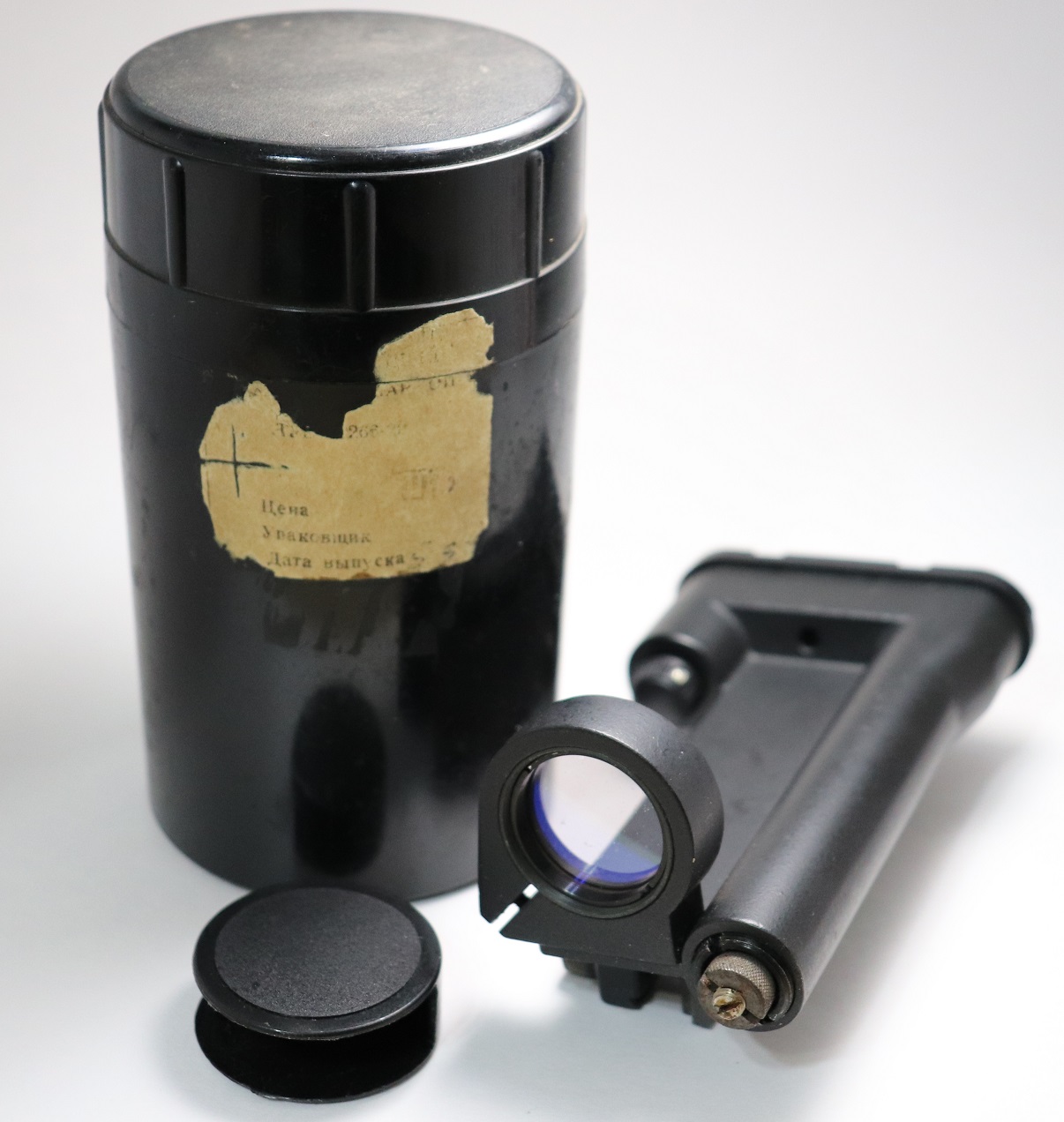

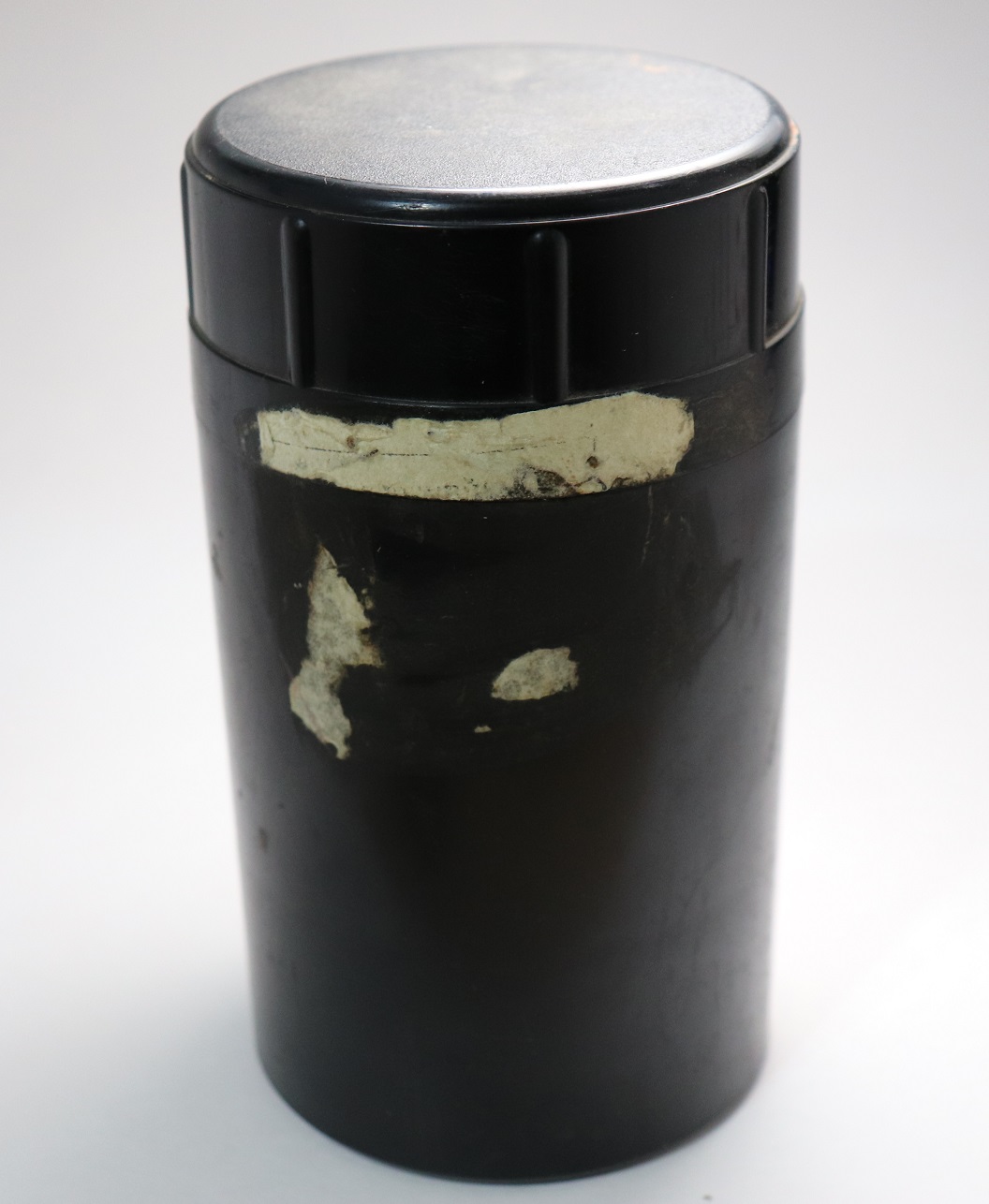

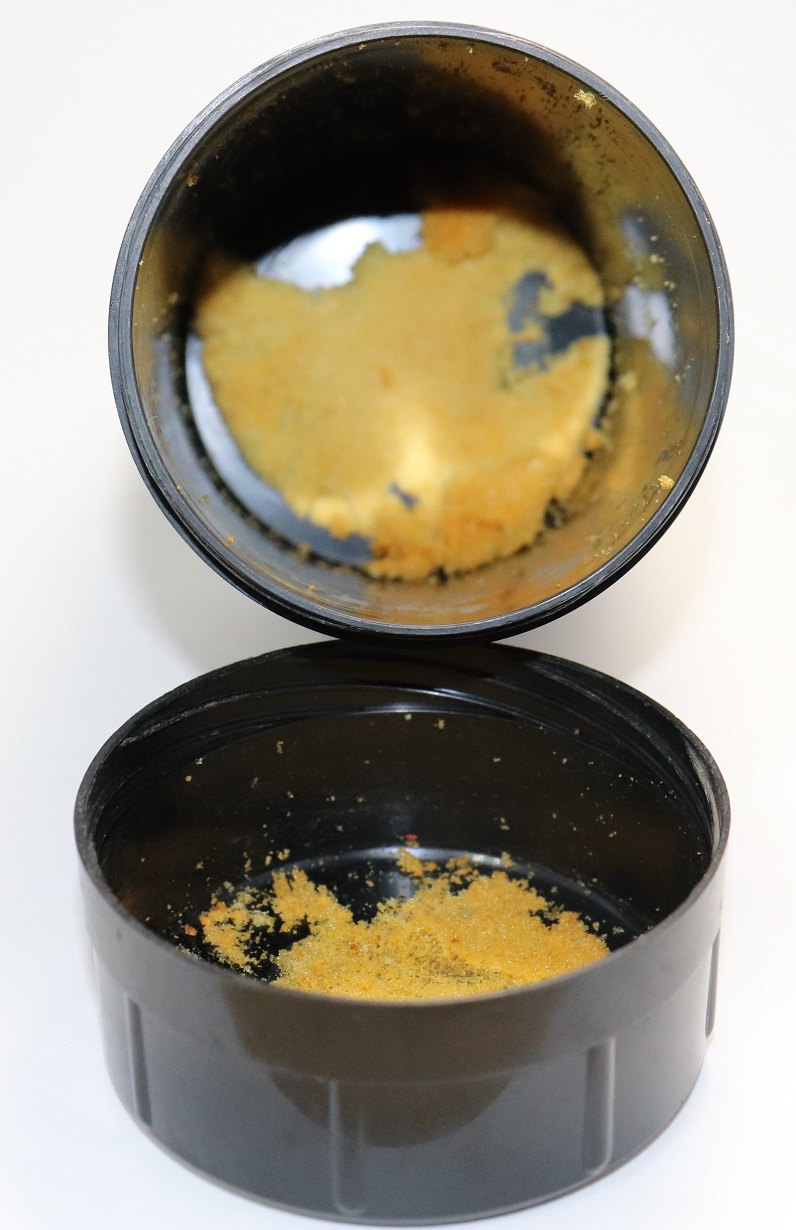

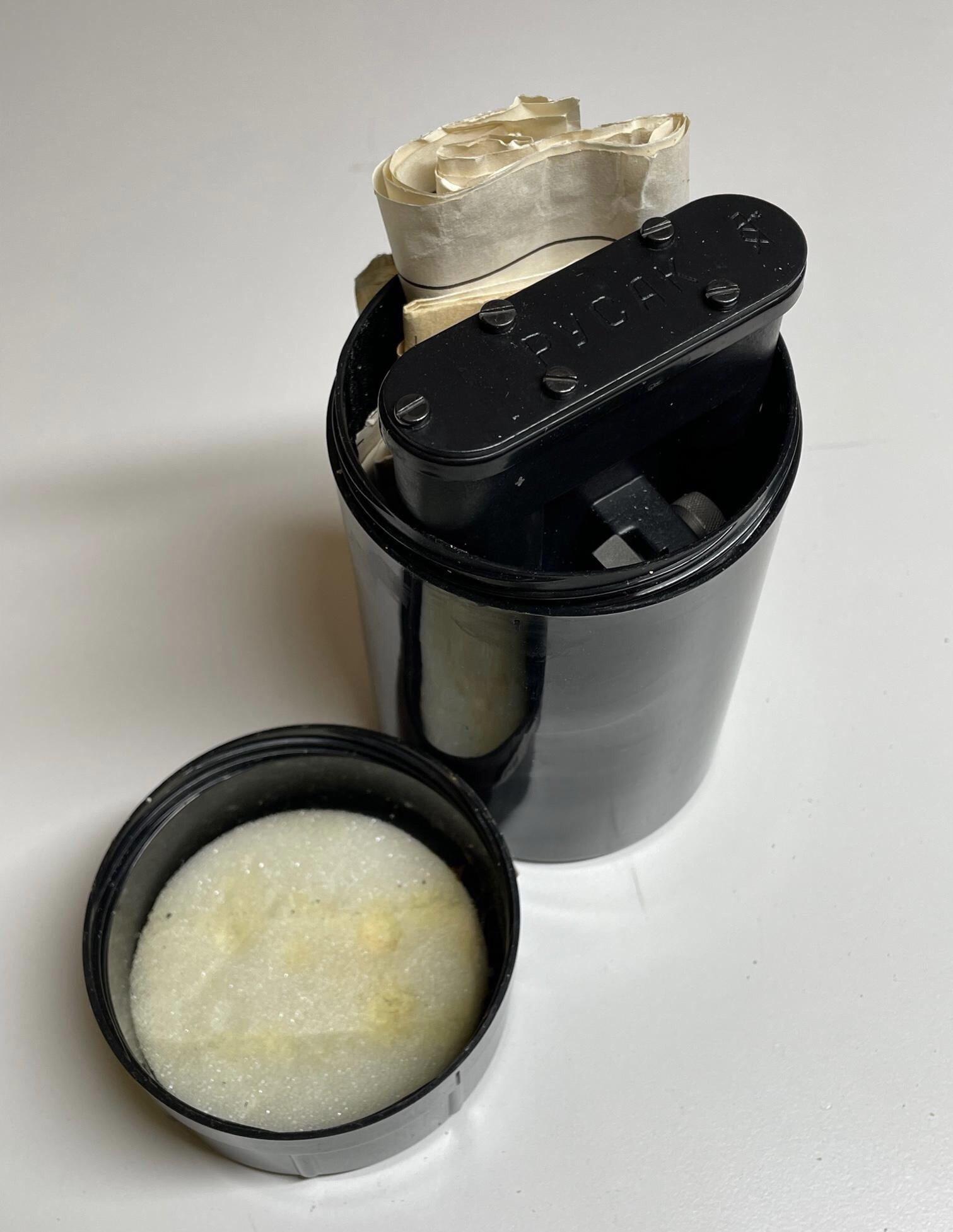

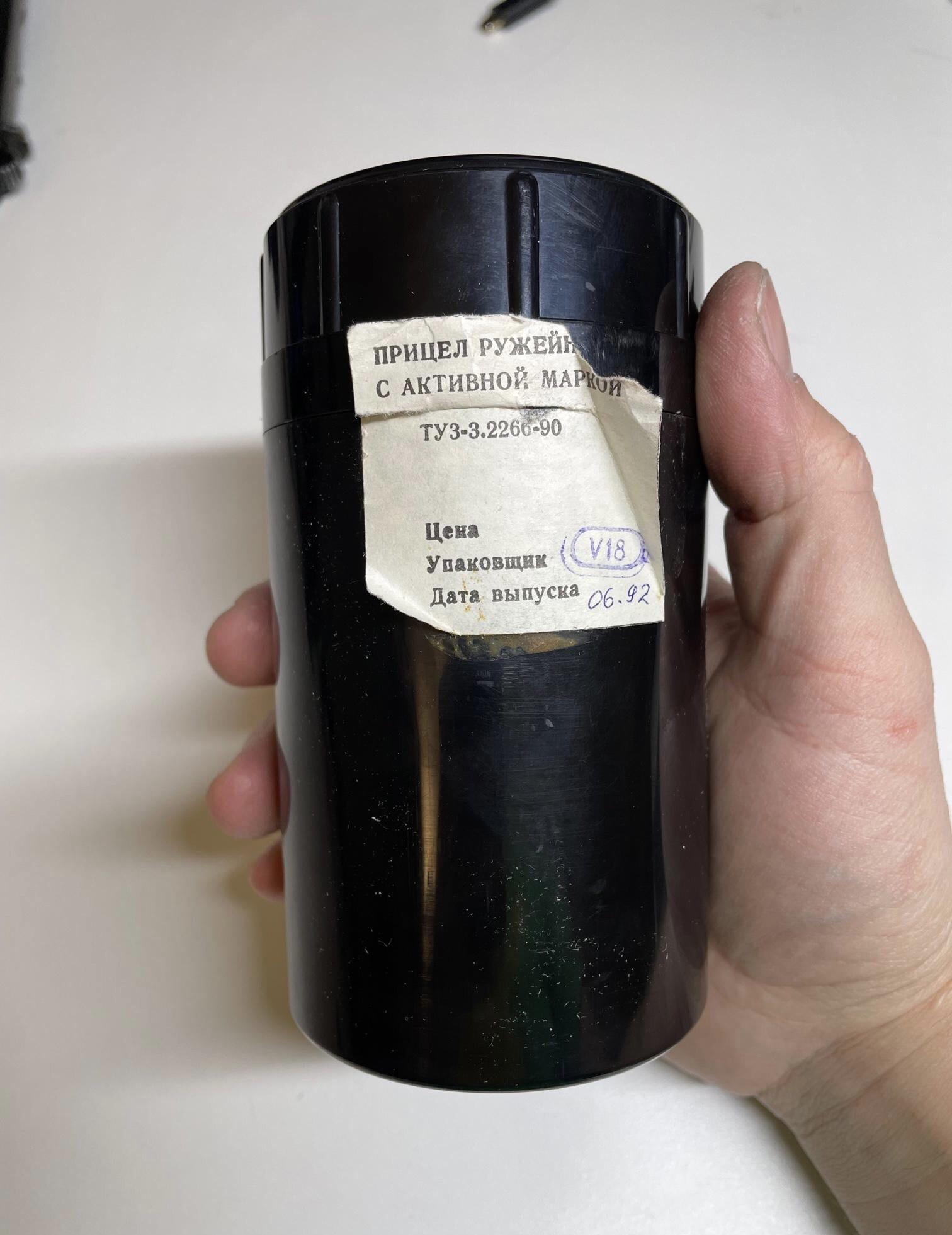

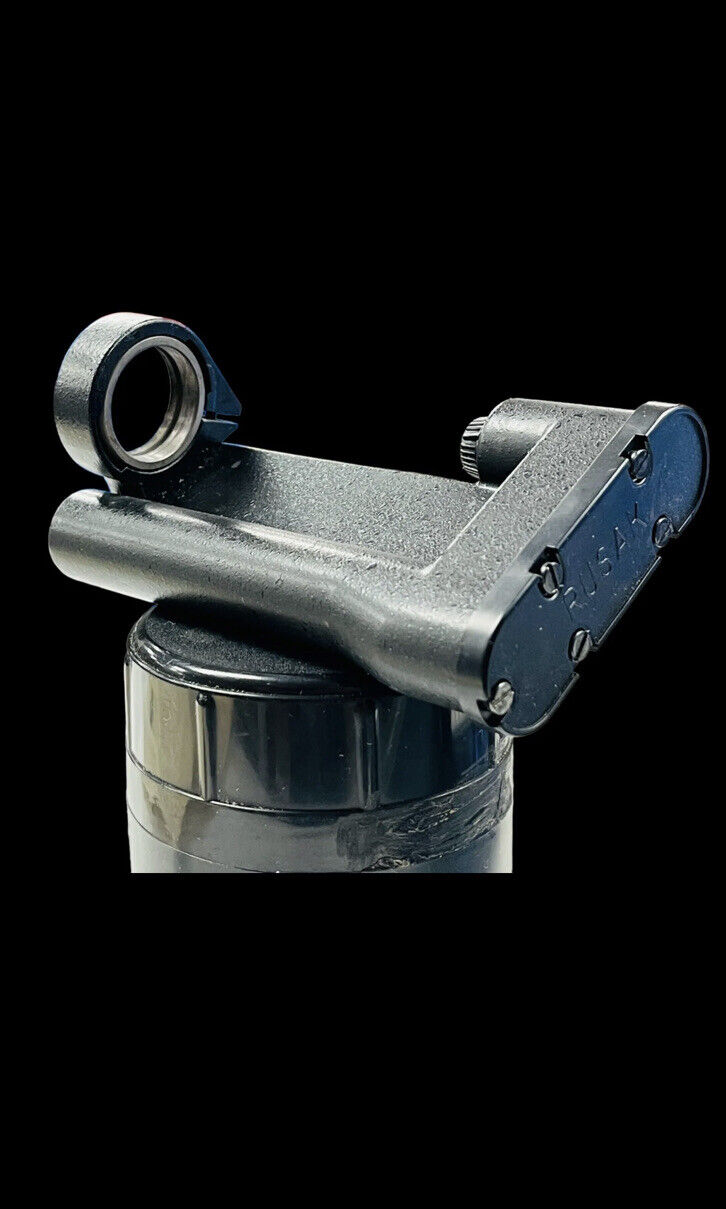

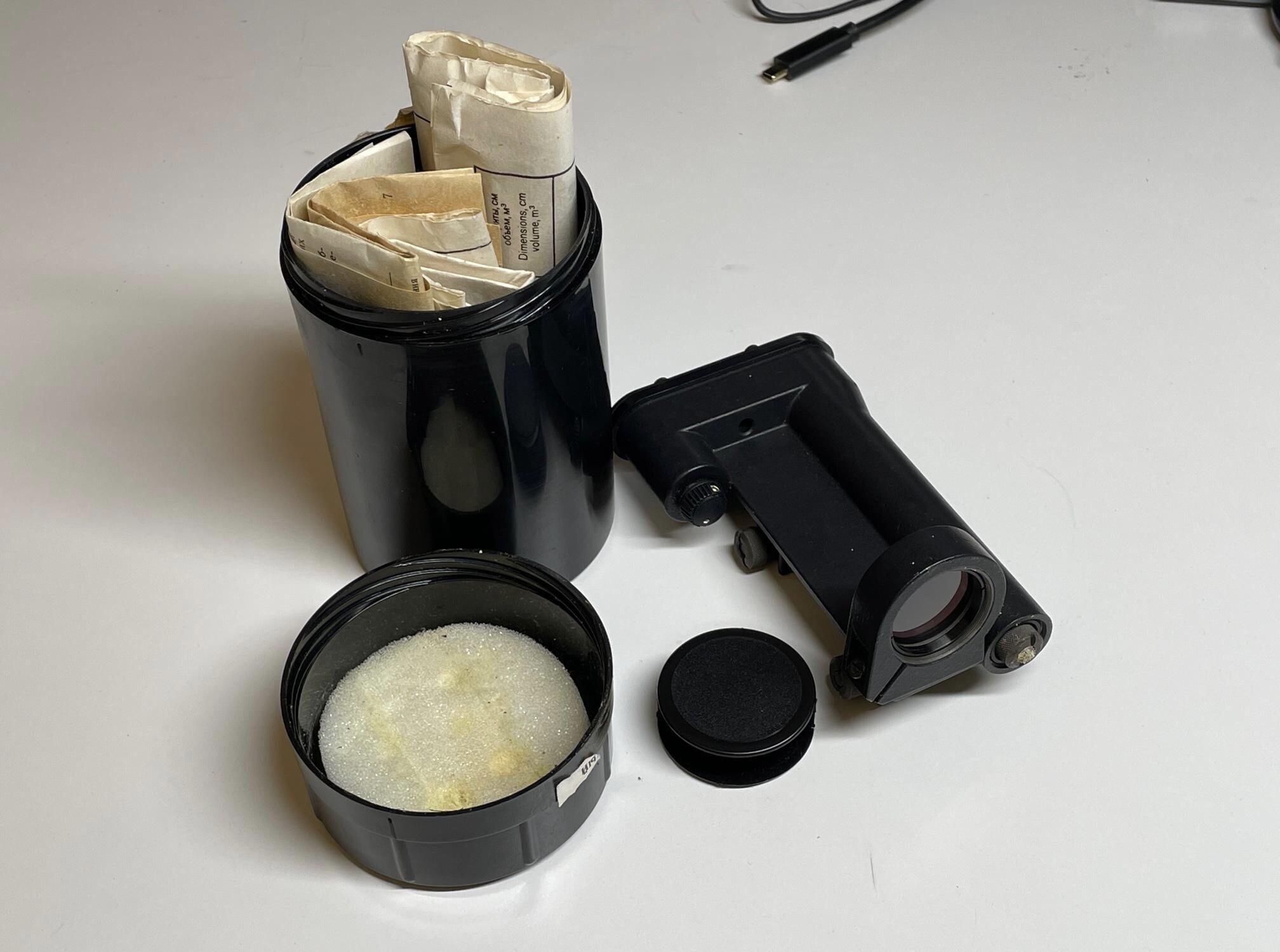

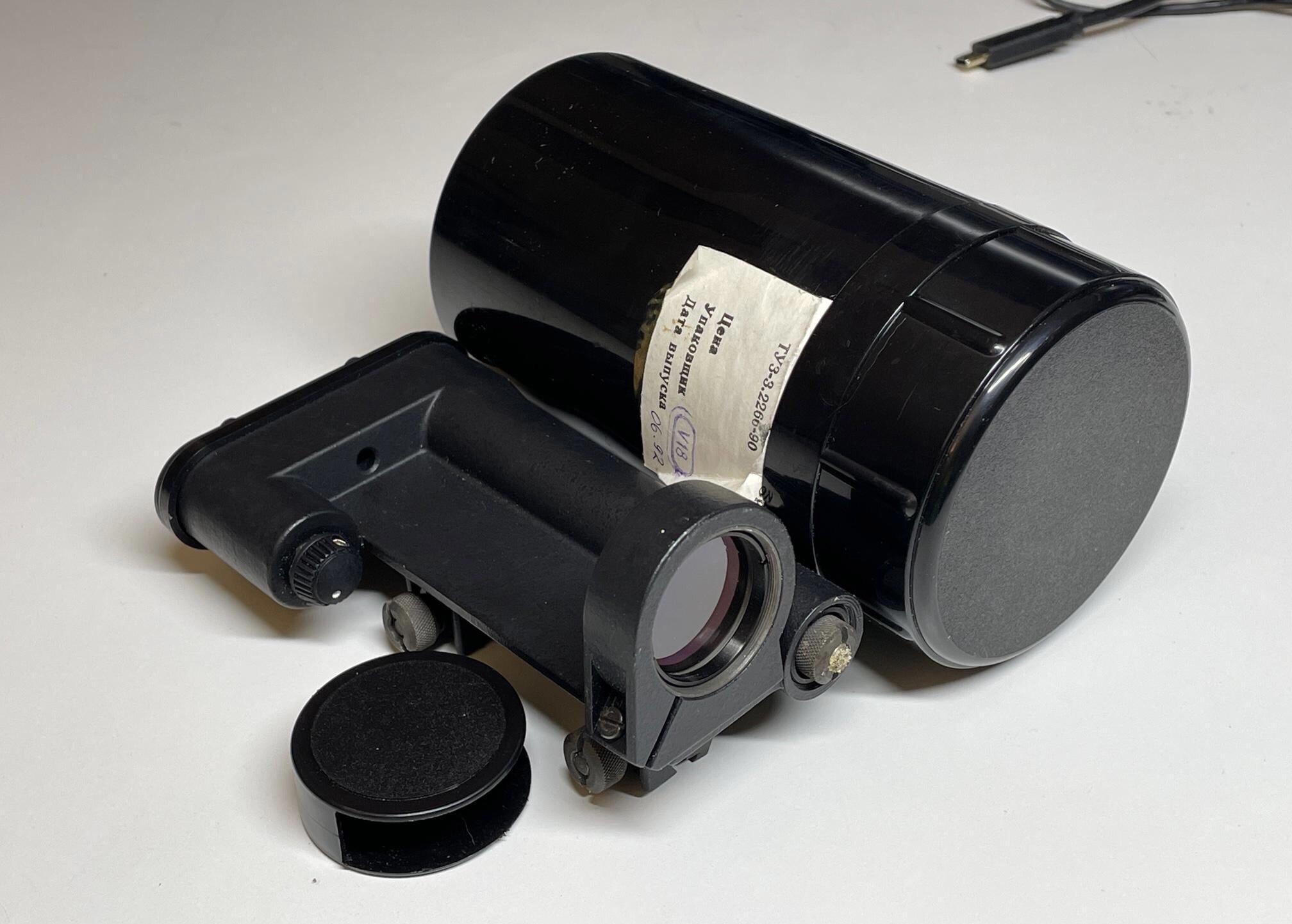

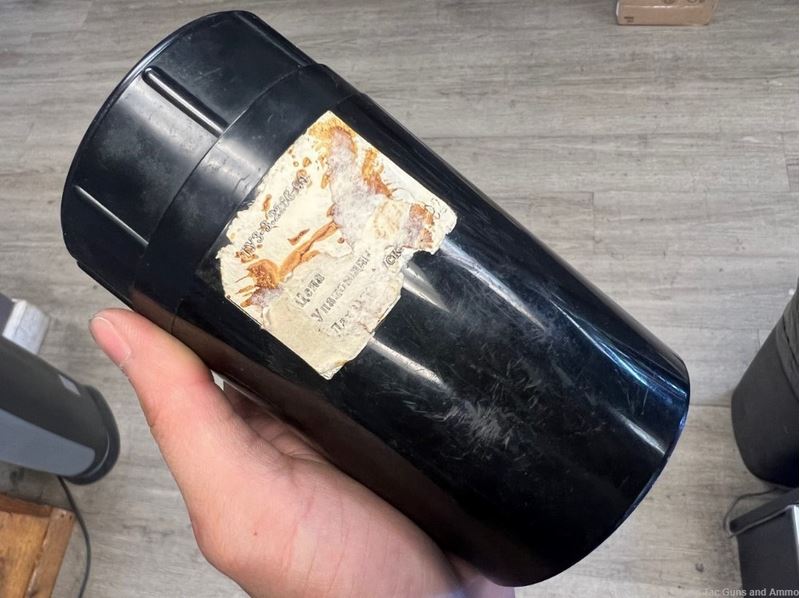

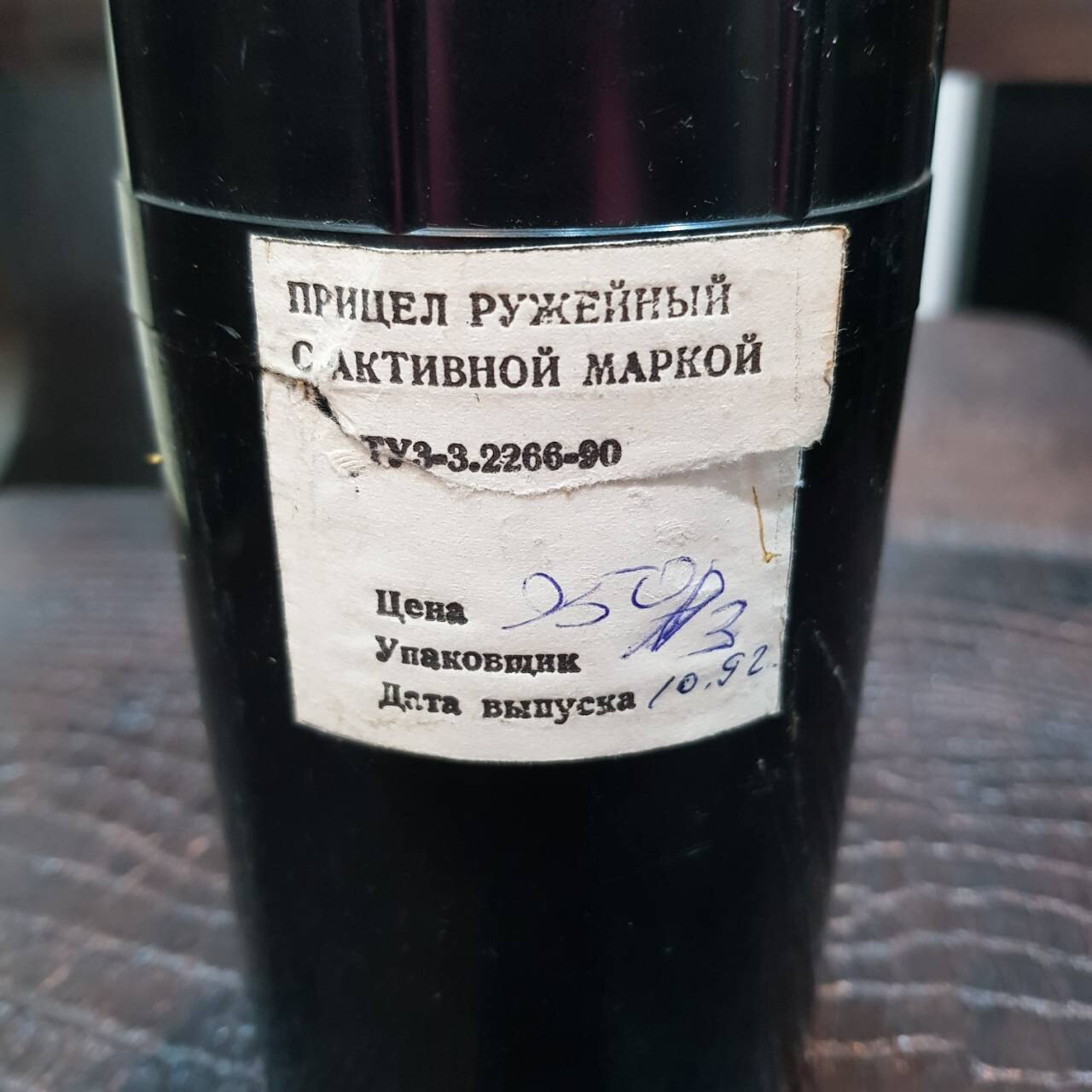

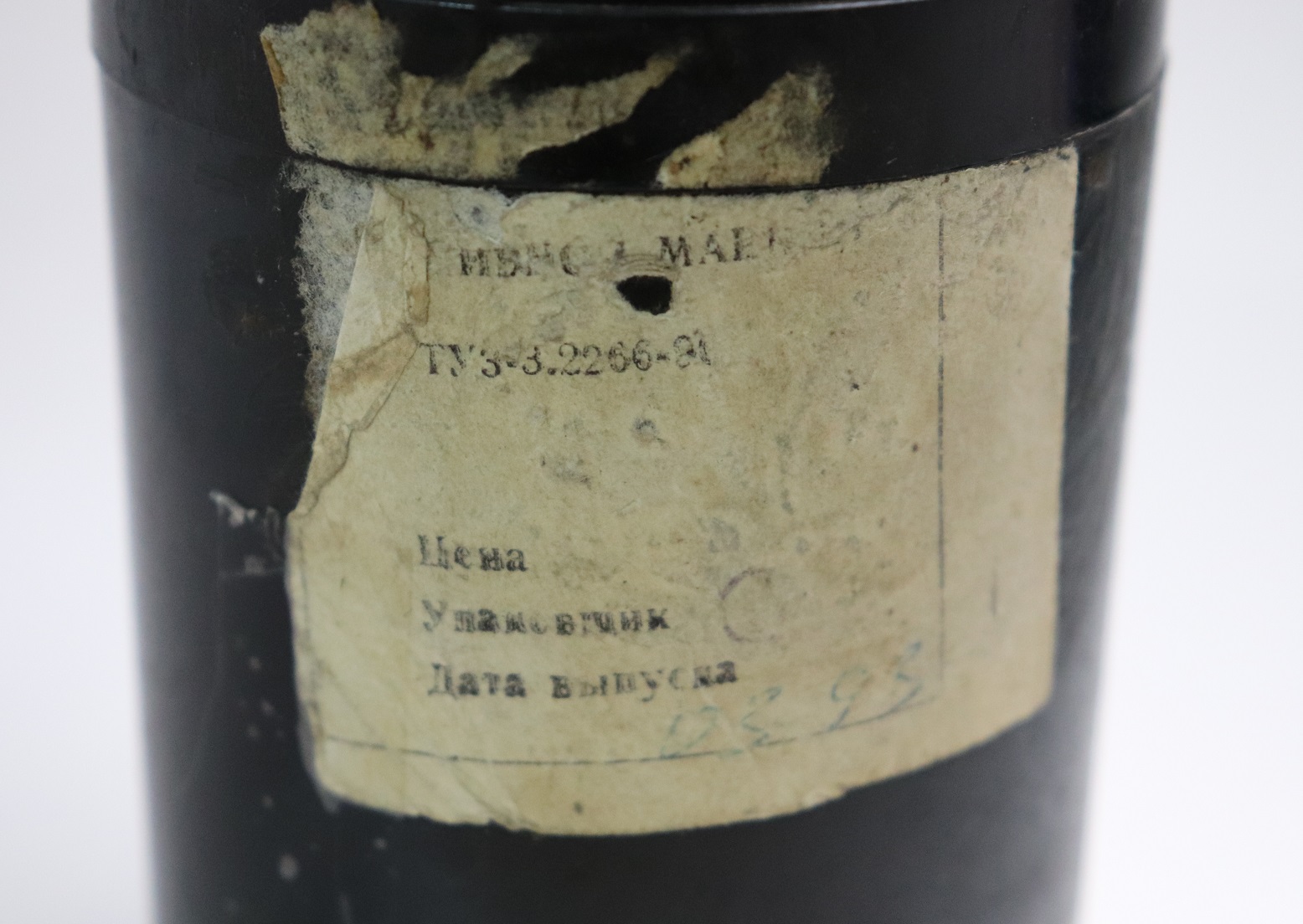

Sights were packaged inside black plastic jars. Left is a case from a 1992 РУСАК marked sight. Right is from a 1993 Rusak marked sight.

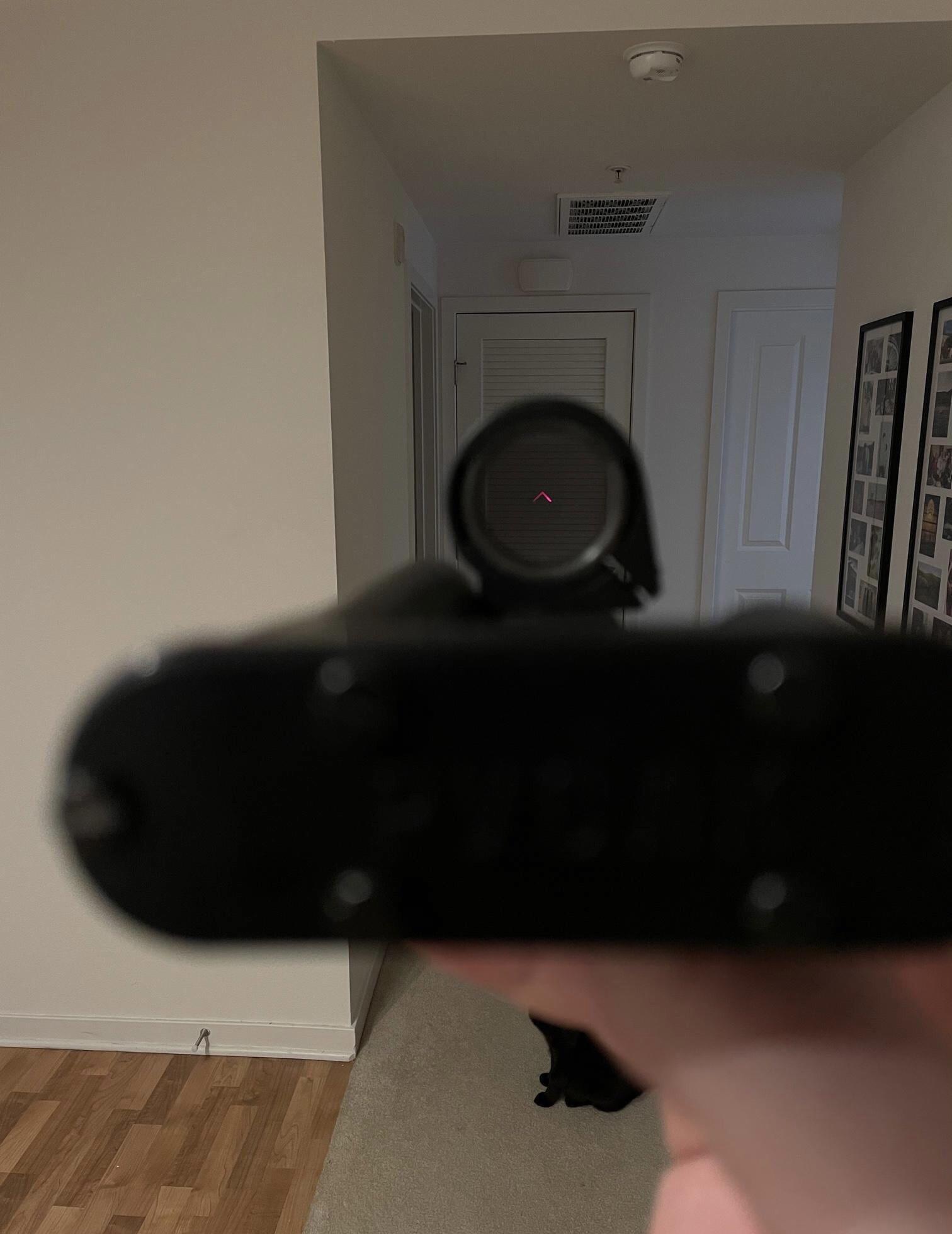

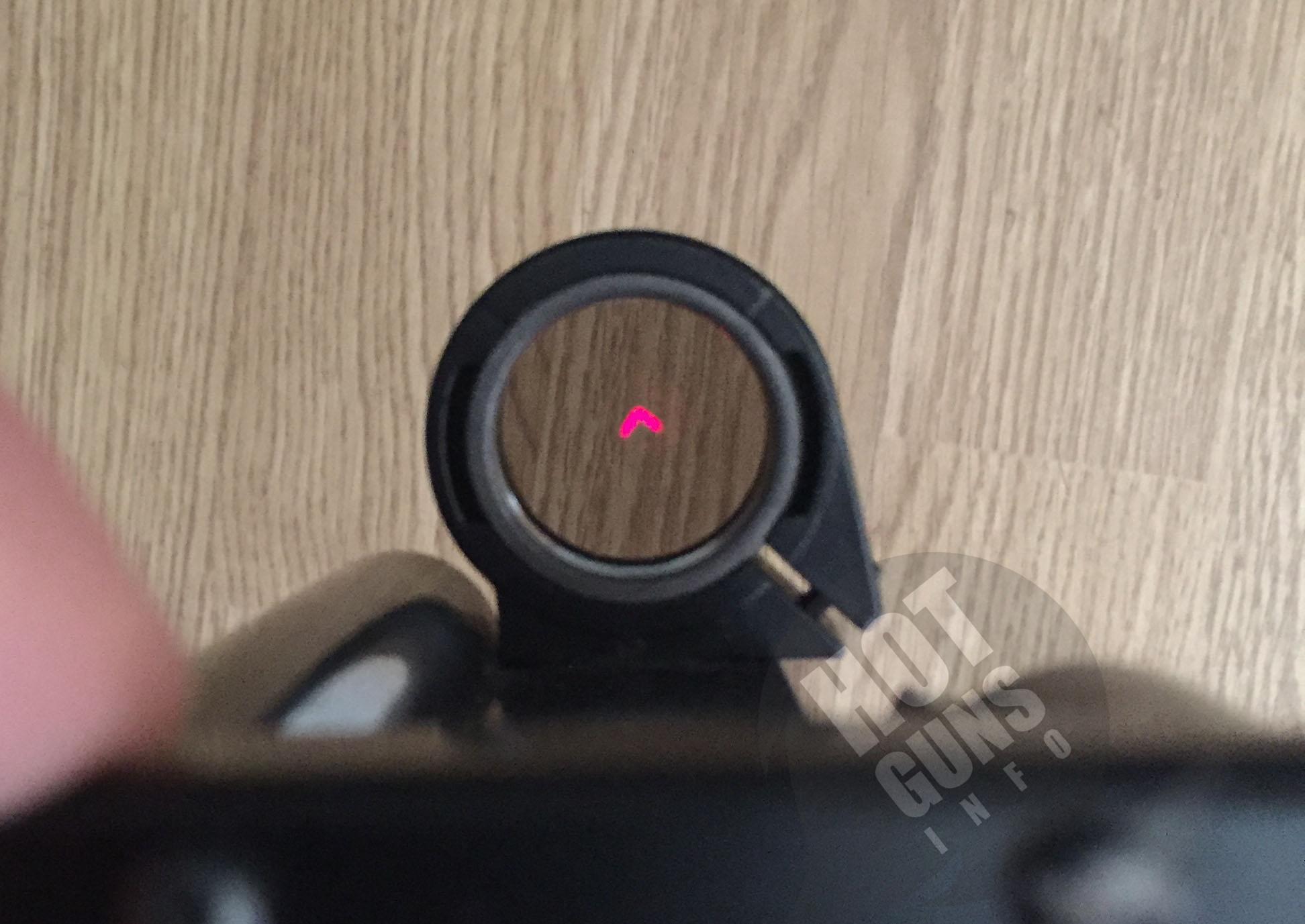

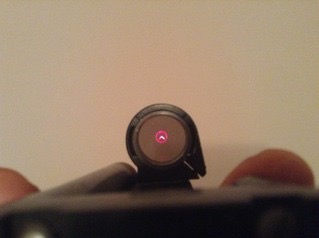

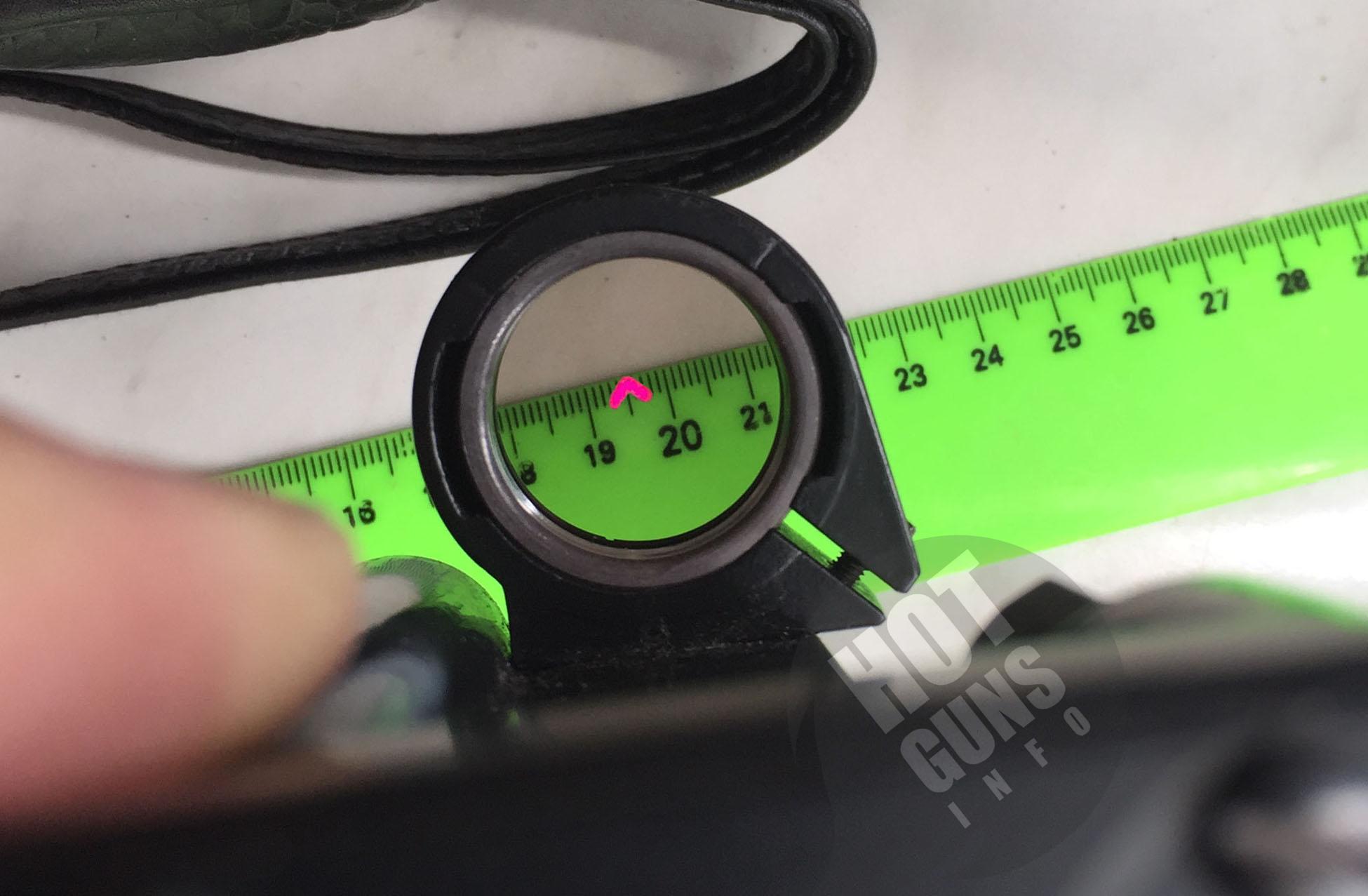

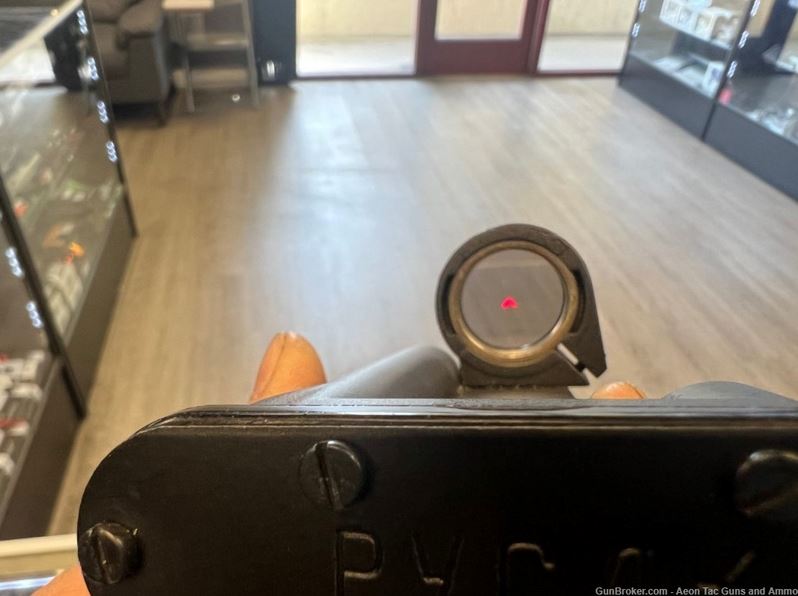

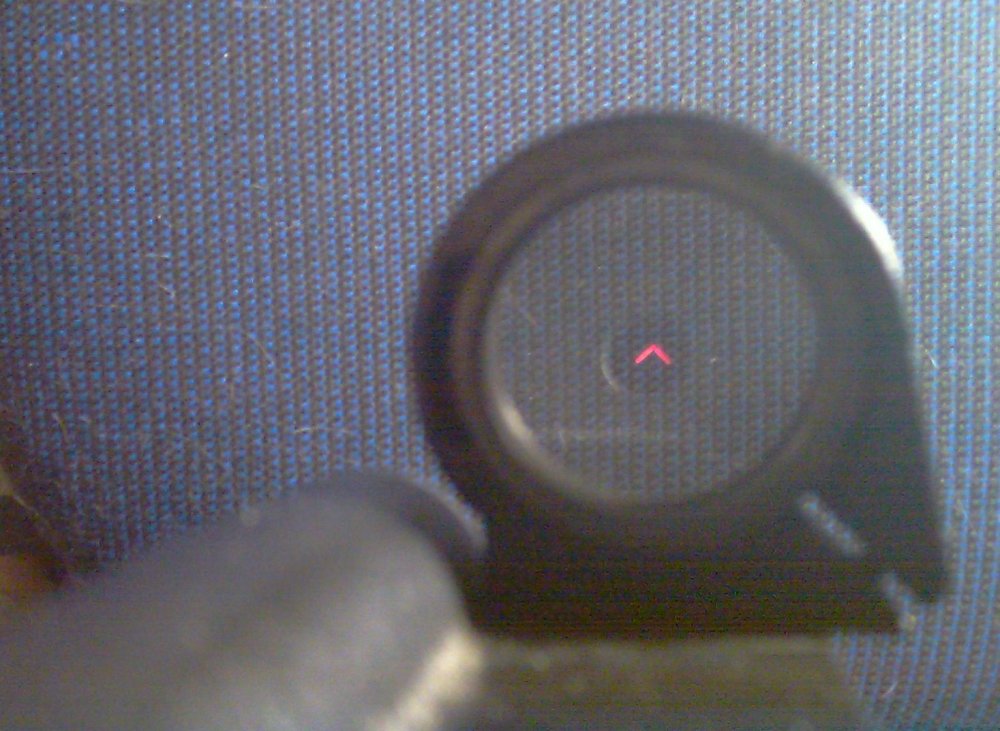

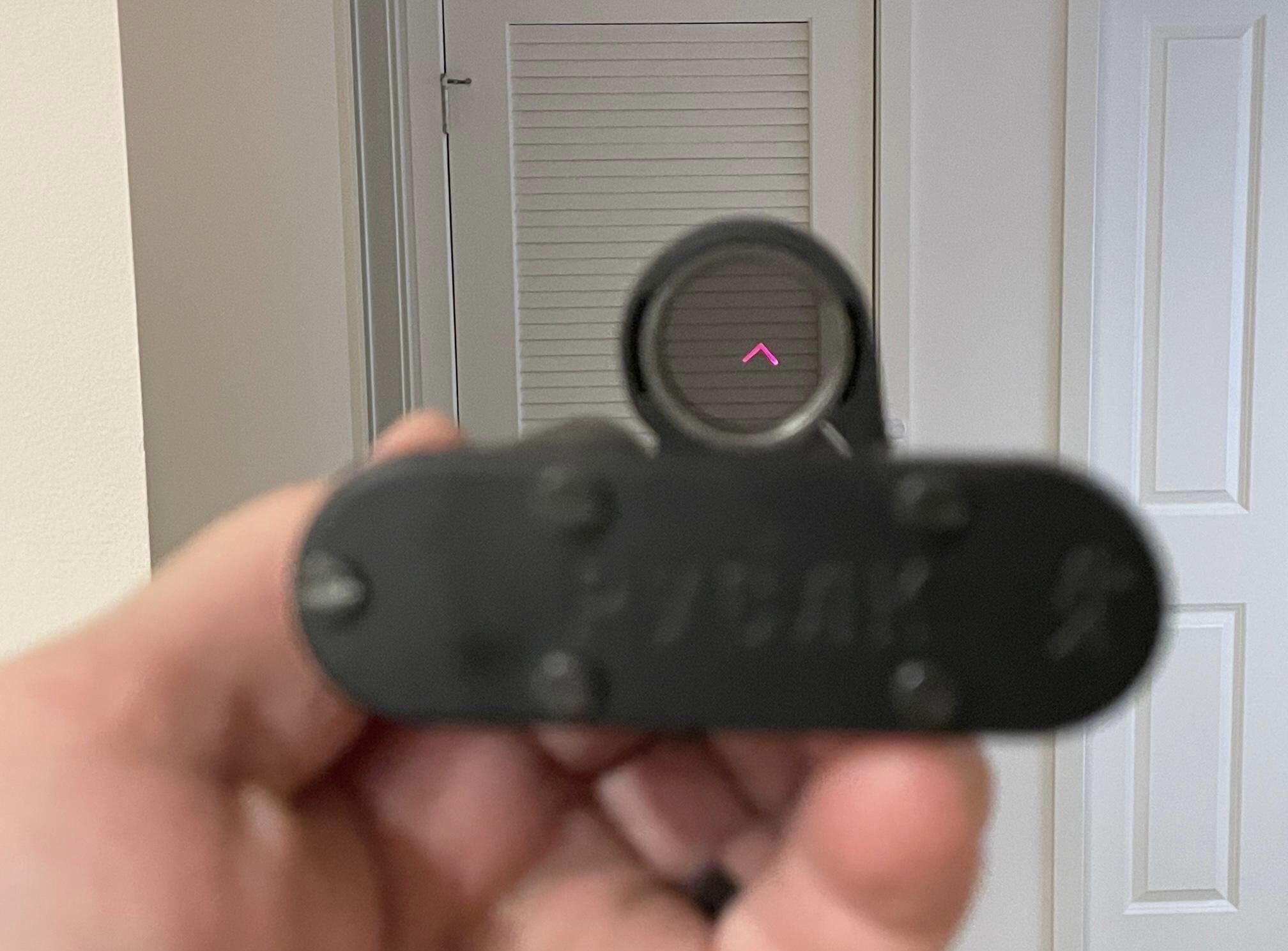

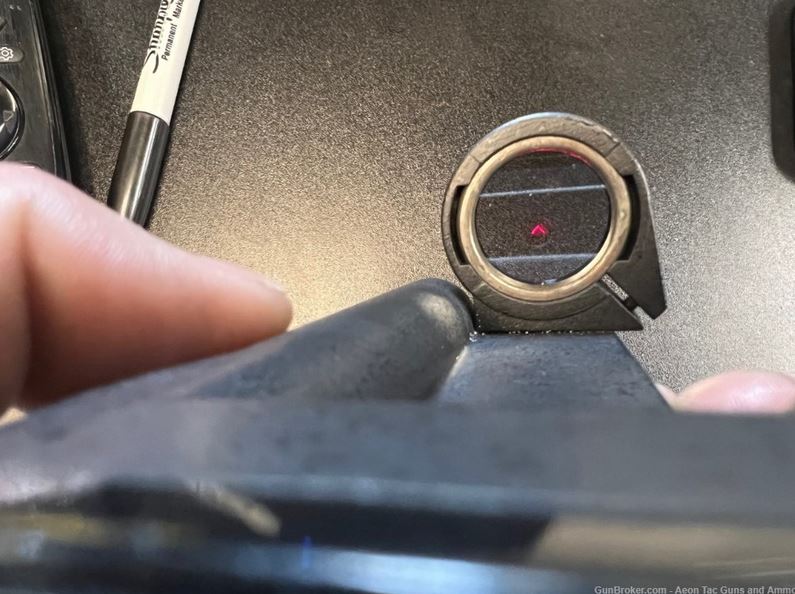

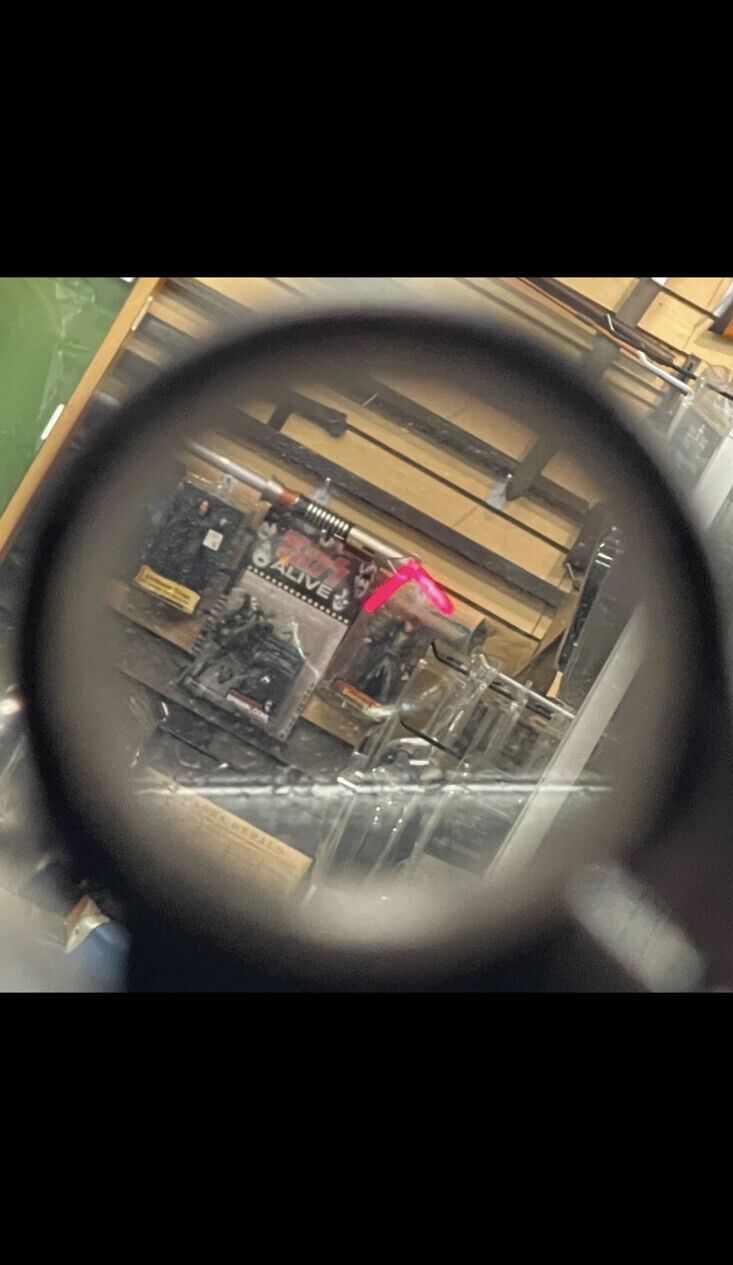

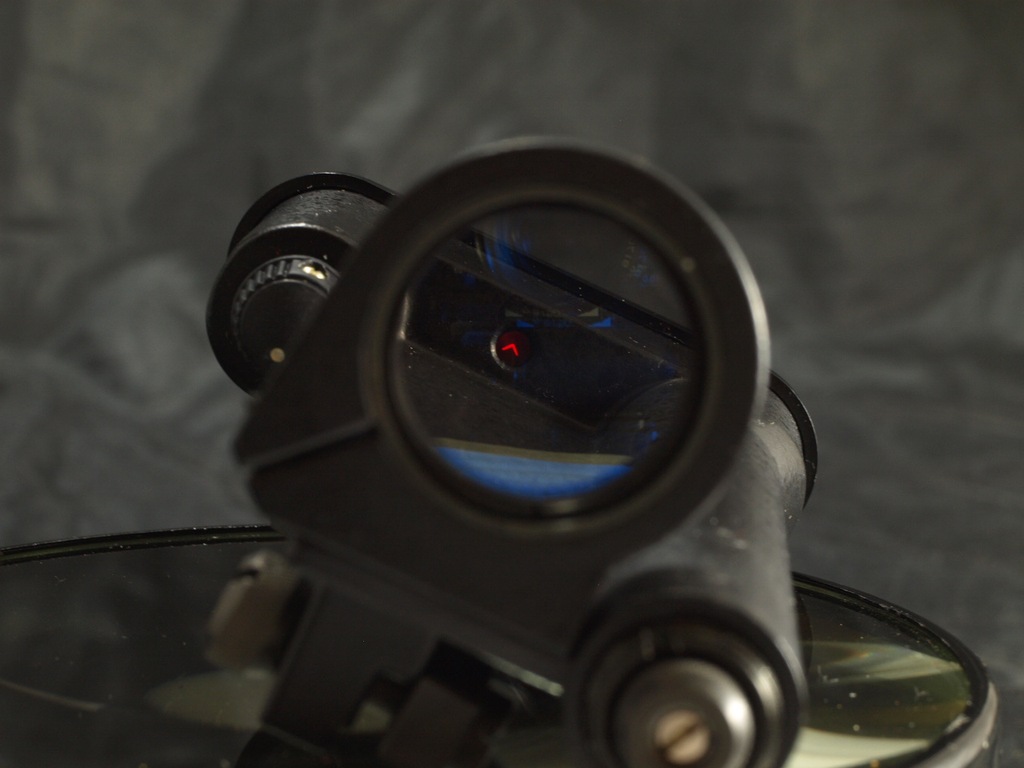

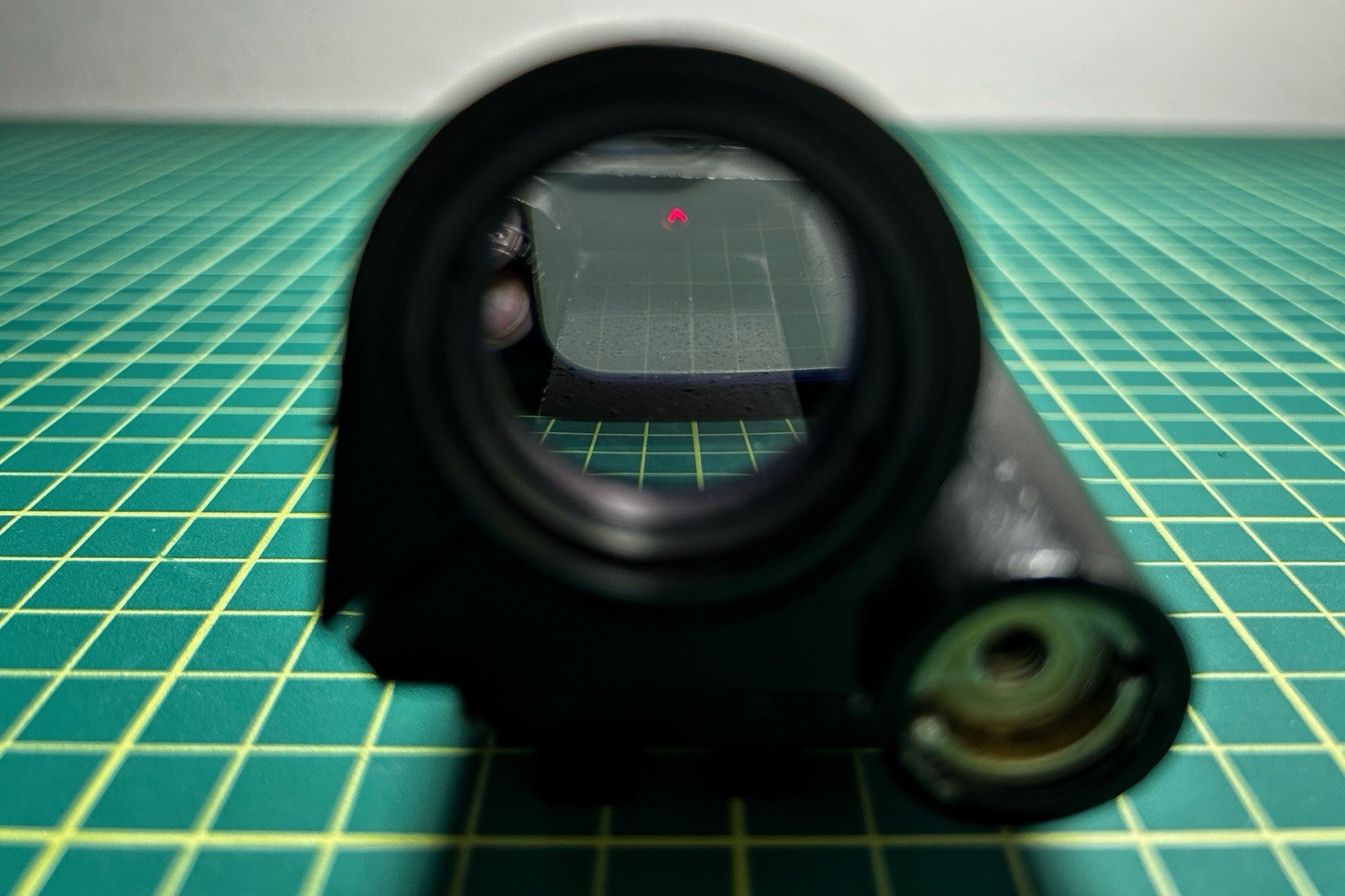

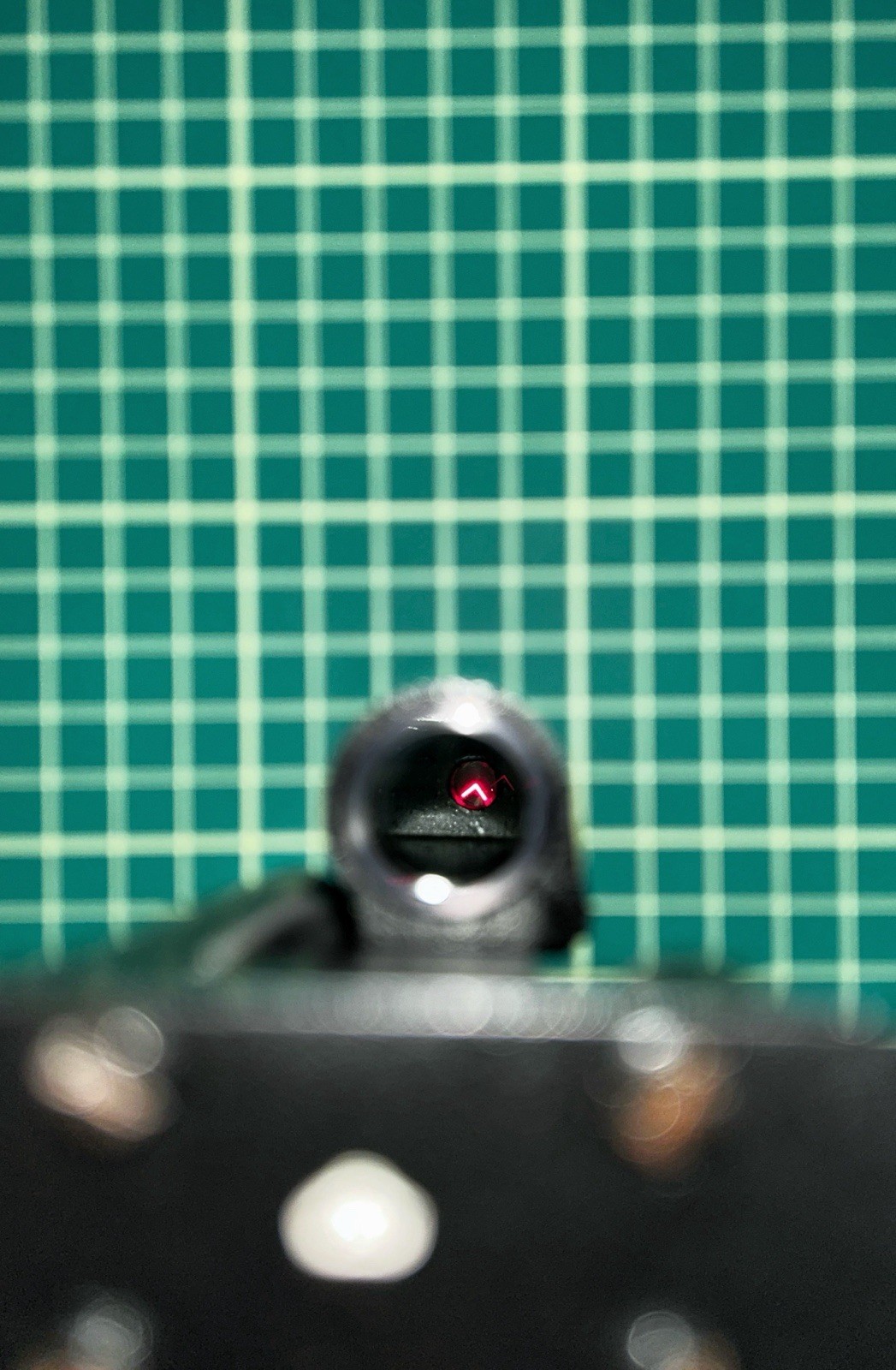

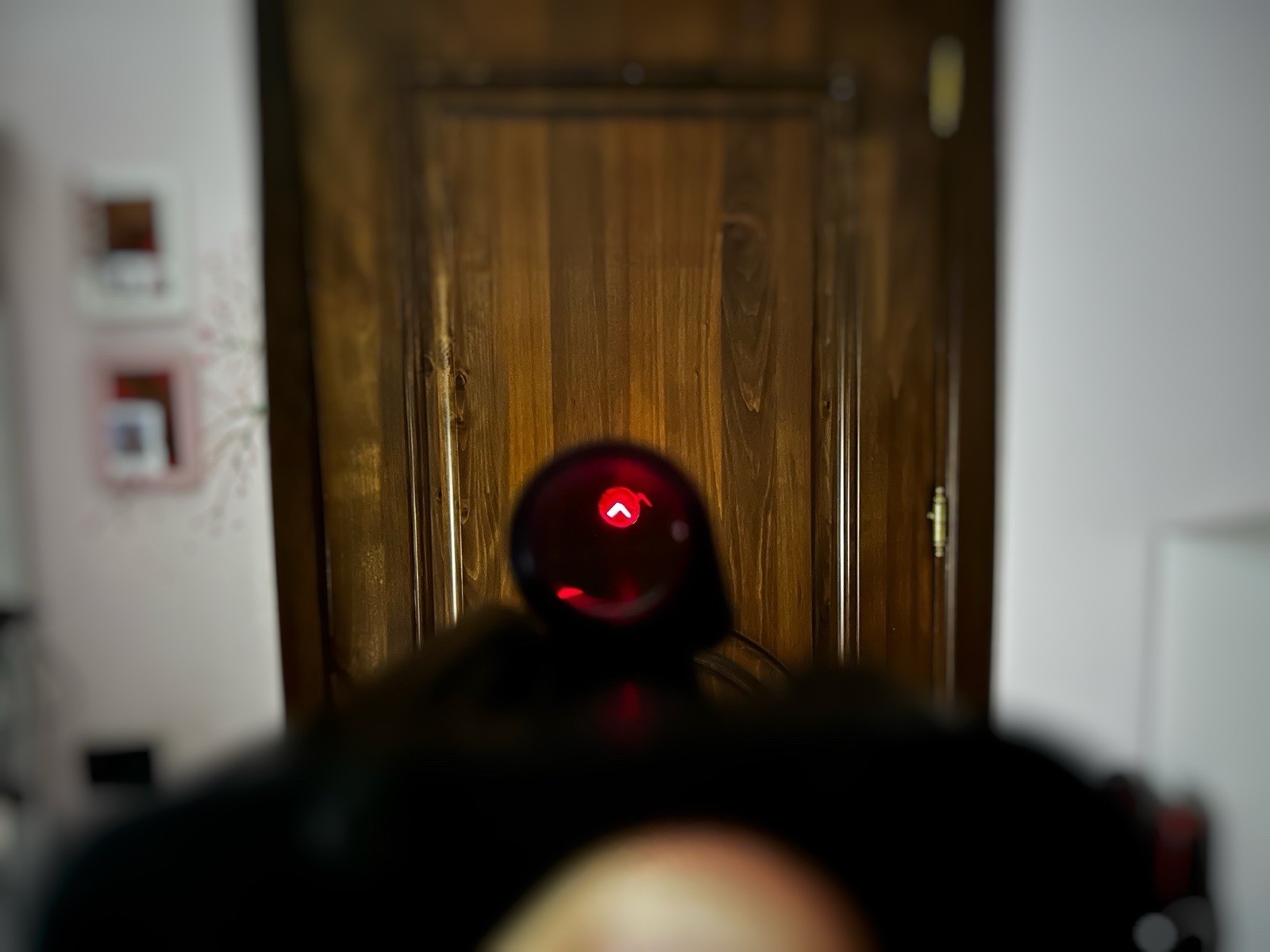

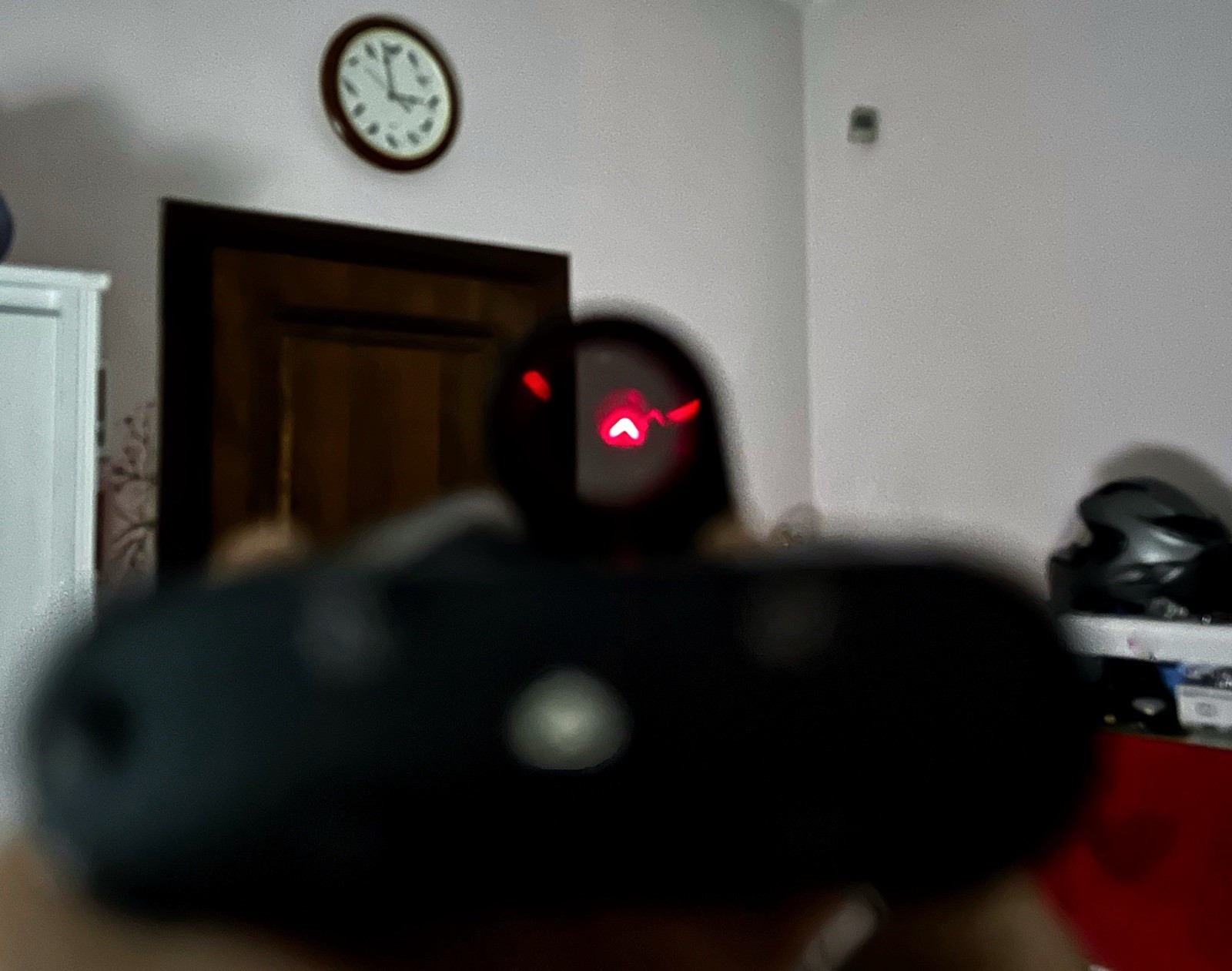

Reticle in all examples is an inverted chevron.

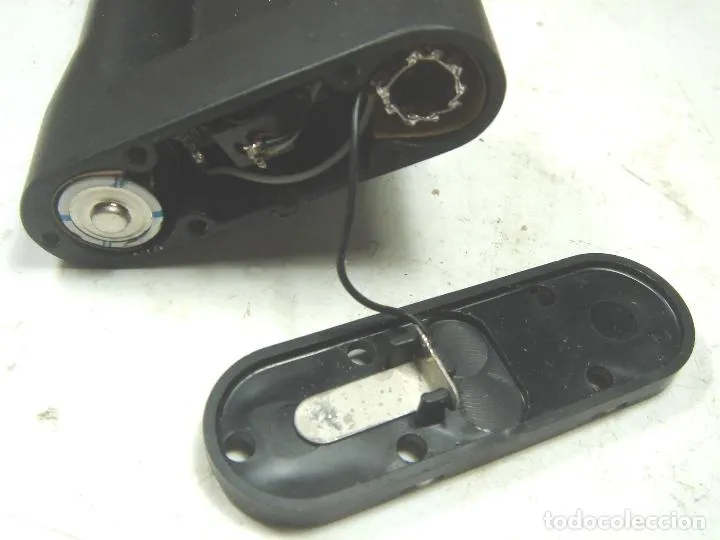

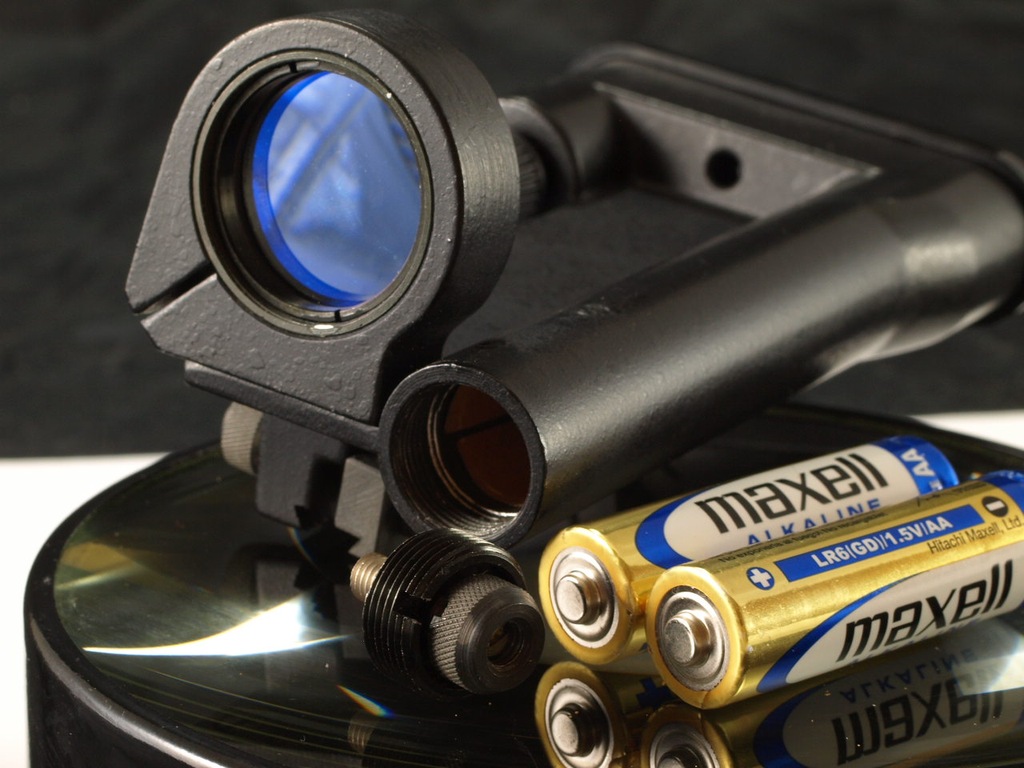

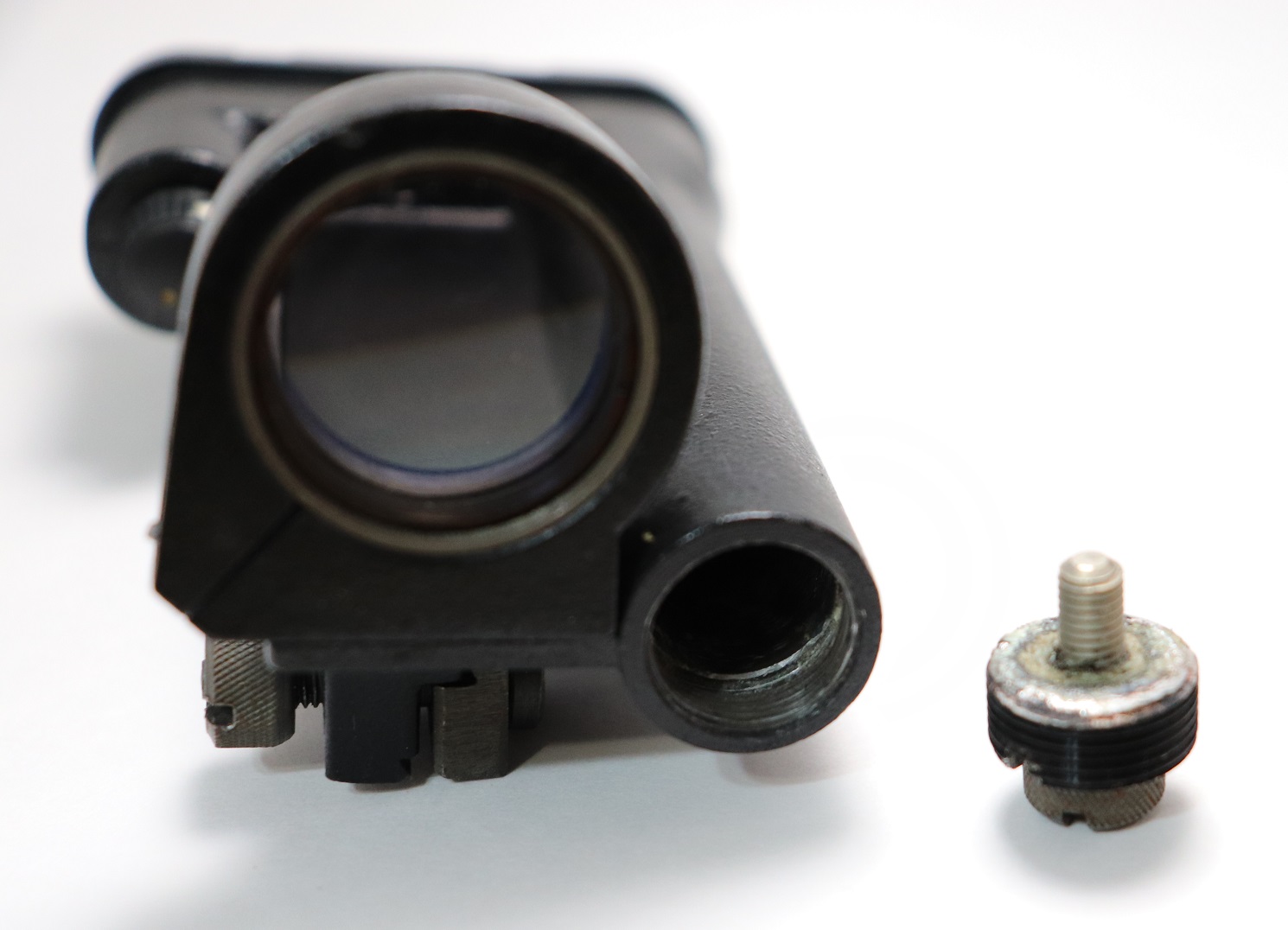

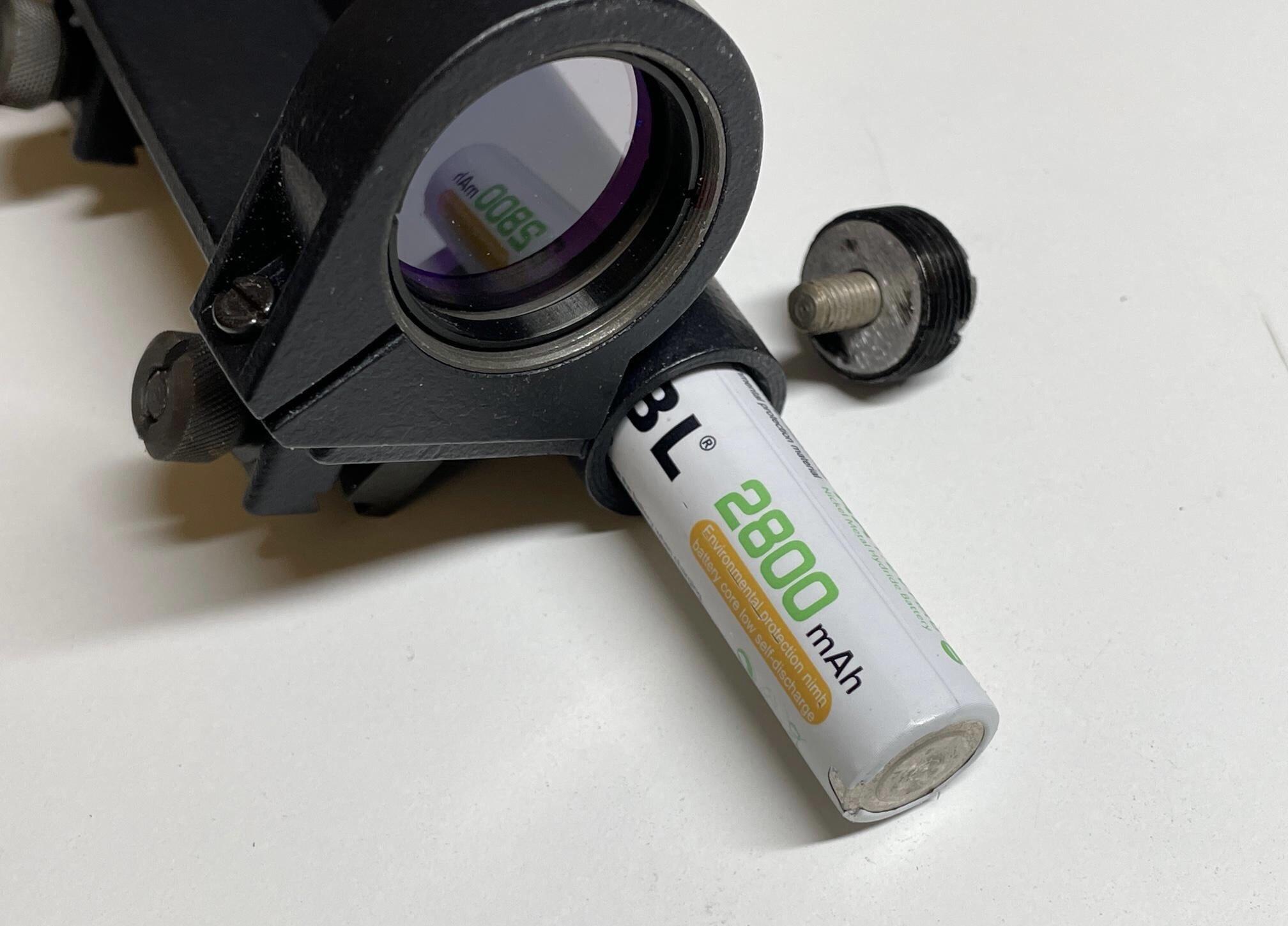

Back plate removed showing the battery and some of the internal wiring. If a battery ever gets stuck this can be used to easily push them out.



VIDEOS

Video by СмолДрайв




Serial Numbers

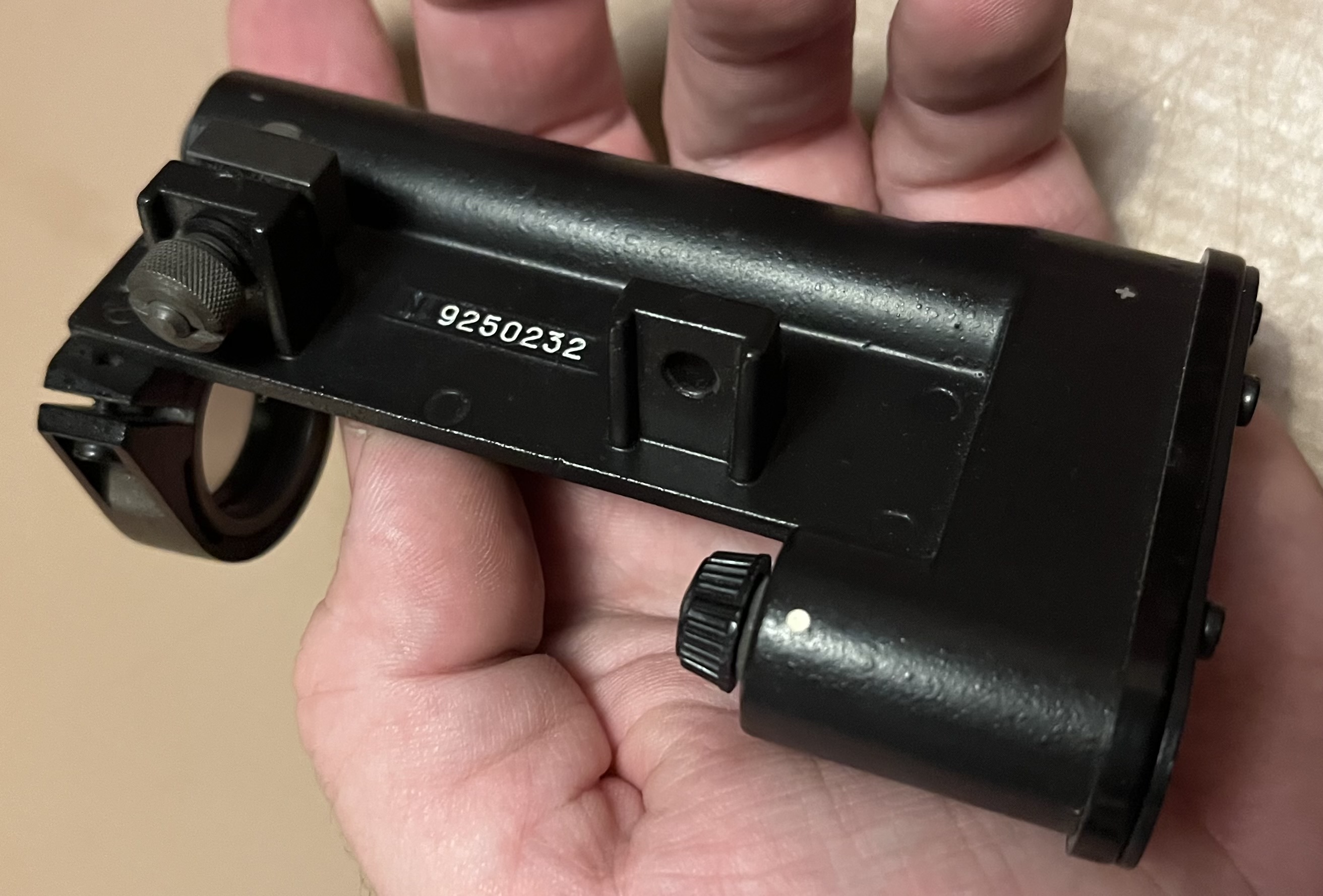

Known serial numbers below. Like many Russian commerical scopes the first two digits are the production year. Based on known serial numbers production started in 1991 and ended in 1993 or possibly 1994.
1991 serial numbers appear to all be 6 digits which changed to 7 digit the following year. Export marked sights appear to have started in 1993.

Serial Market Images Notes

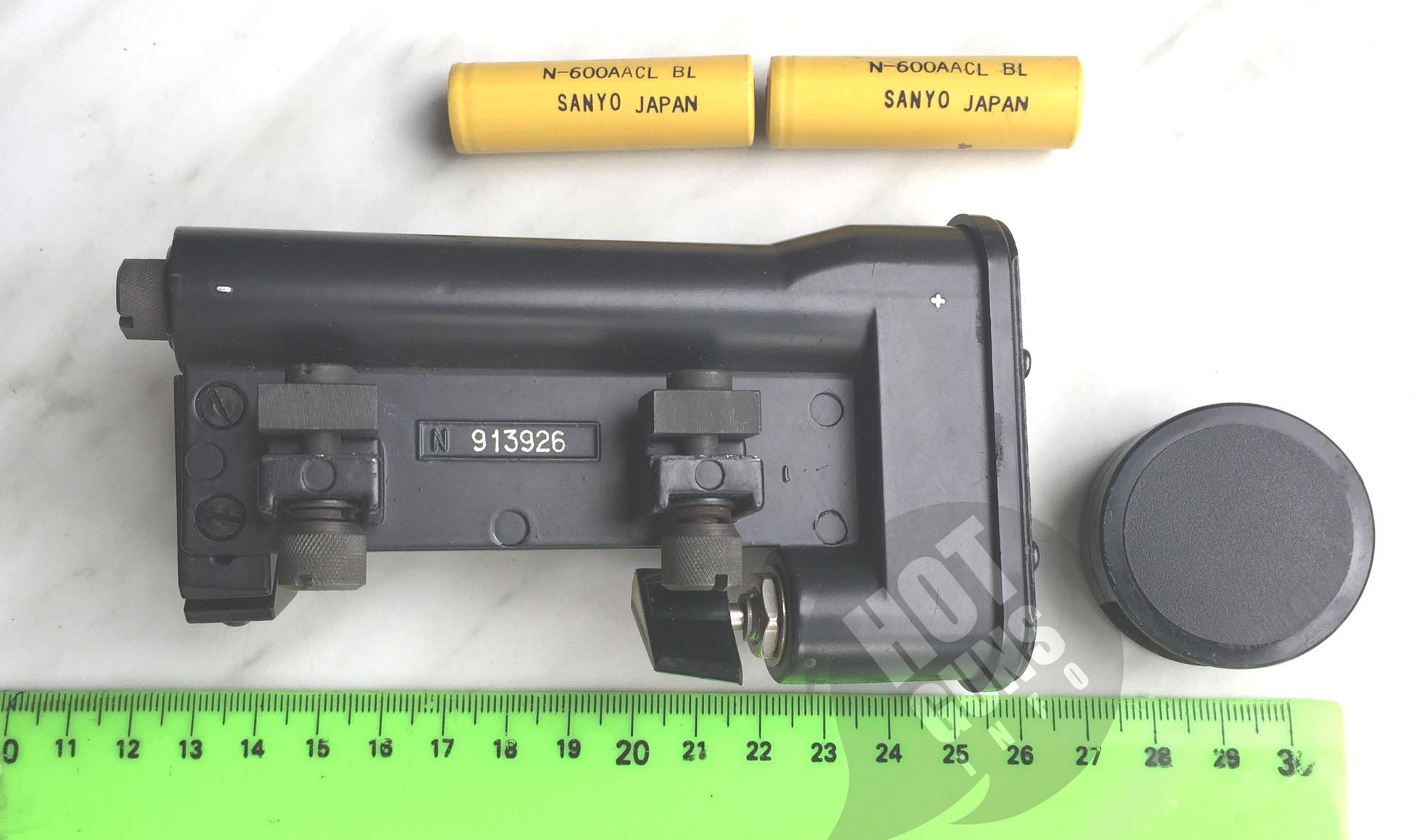

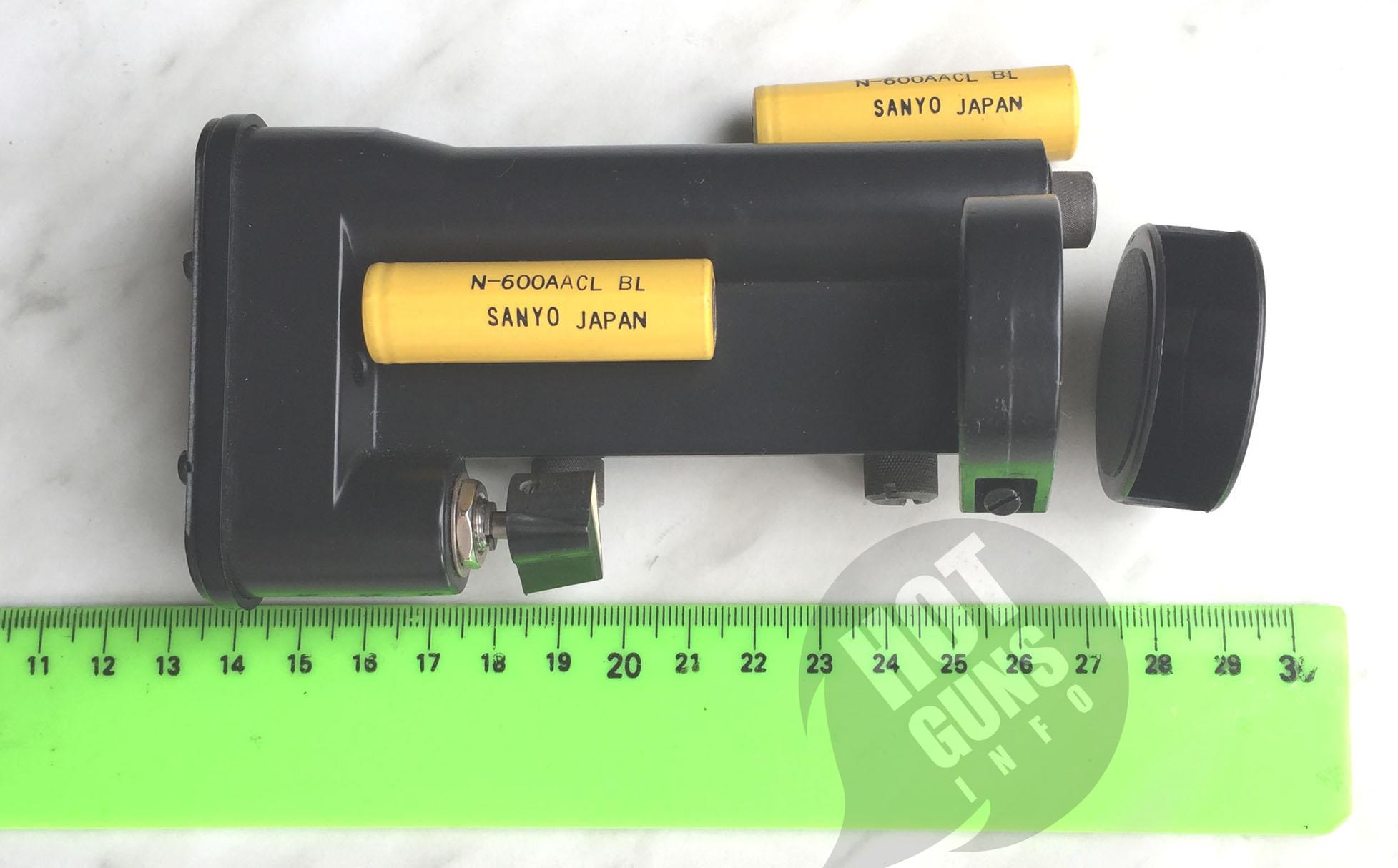

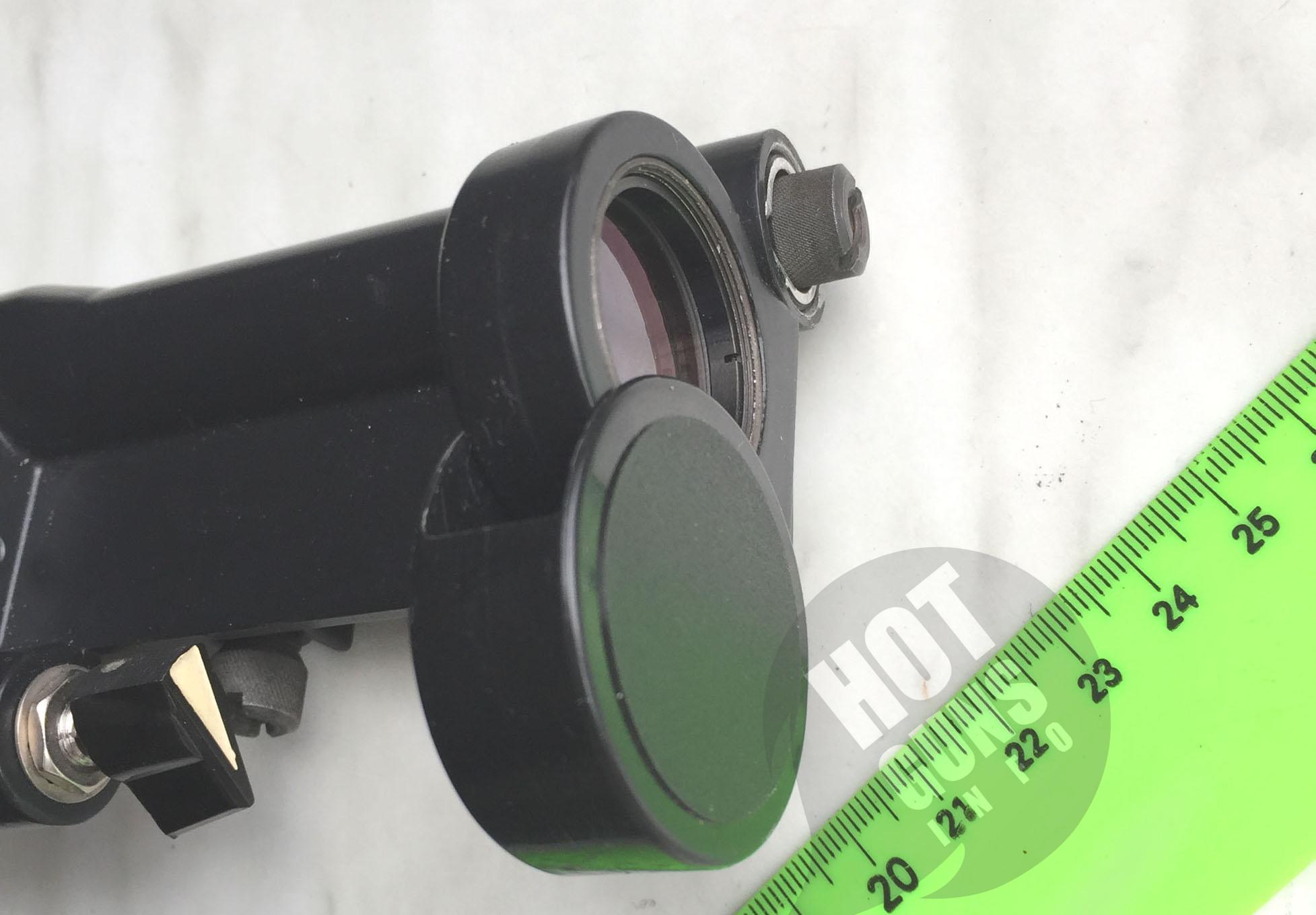

913926 domestic Note unsual on/off knob.

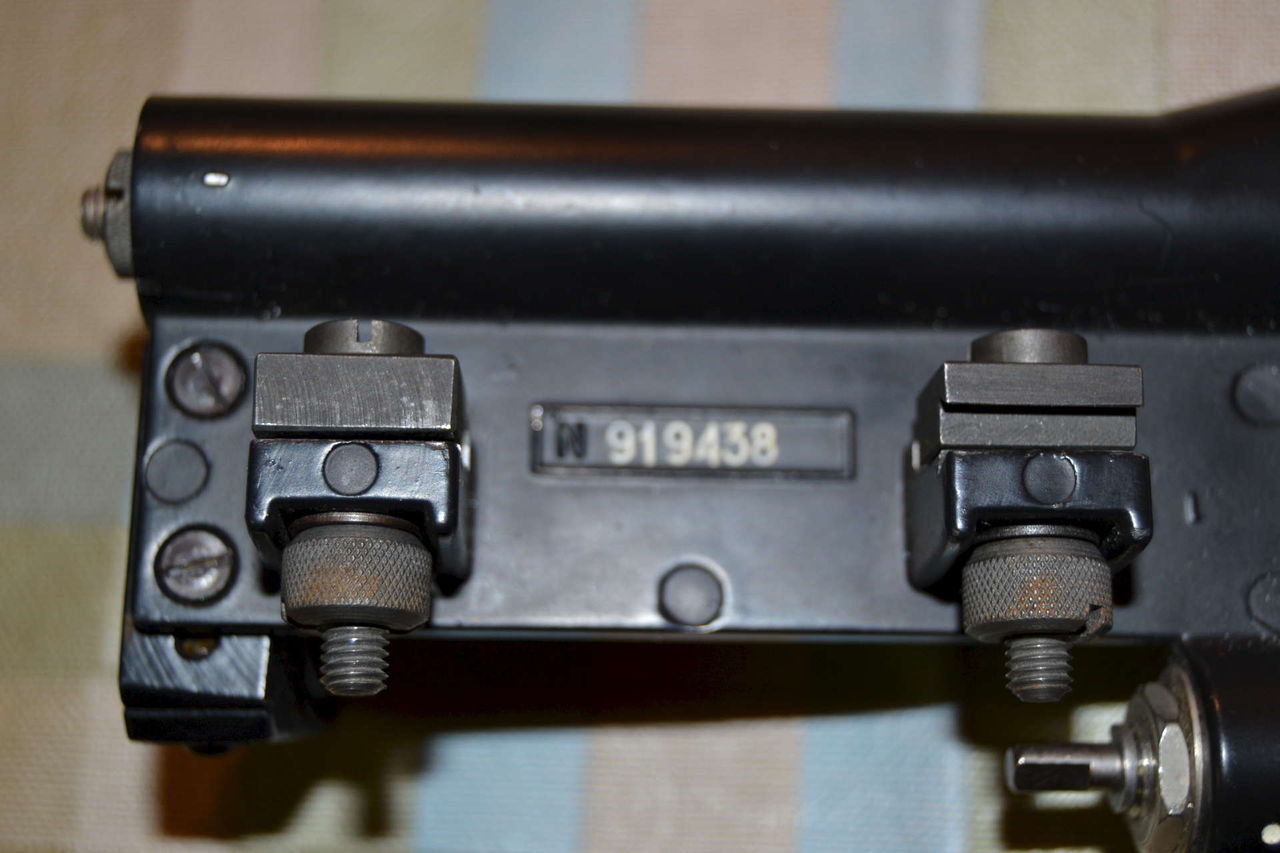

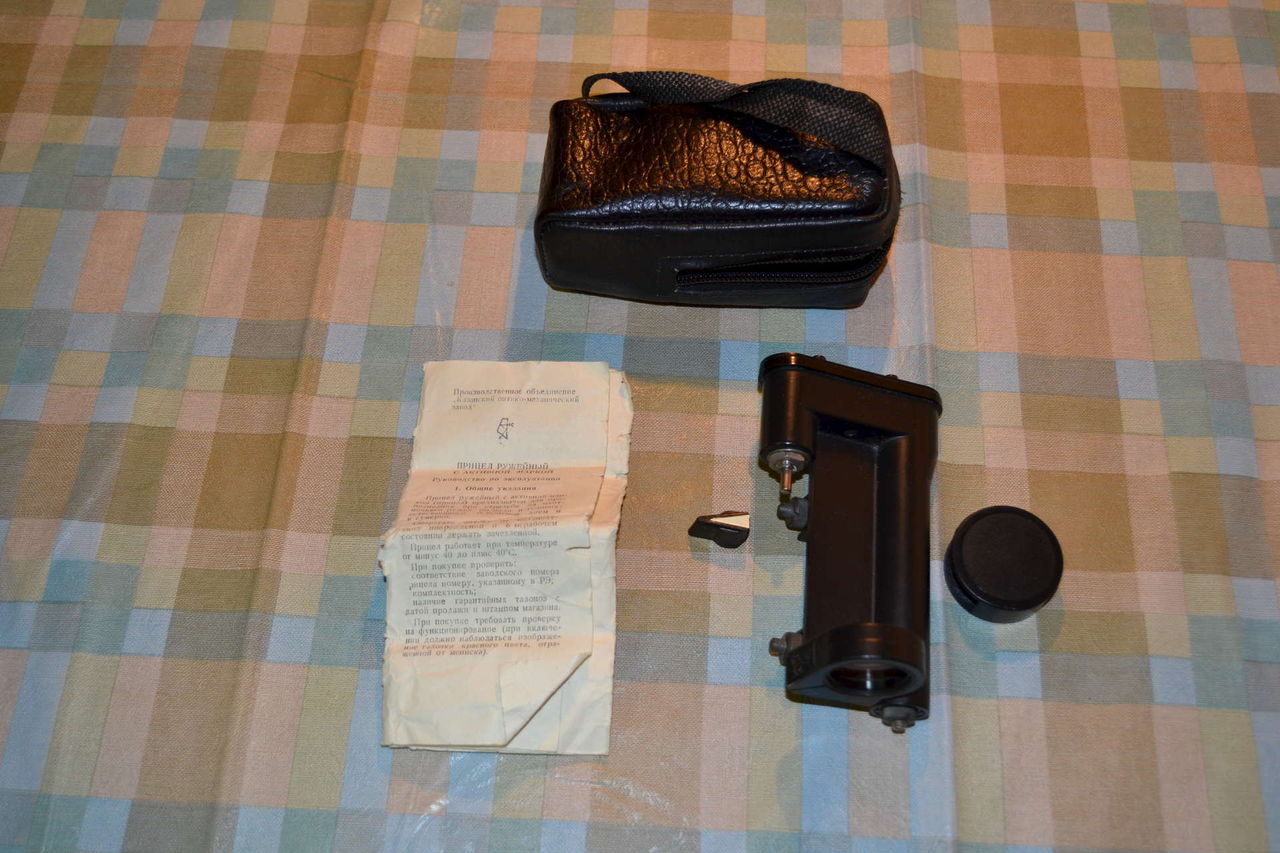

919438 domestic Note unsual on/off knob.

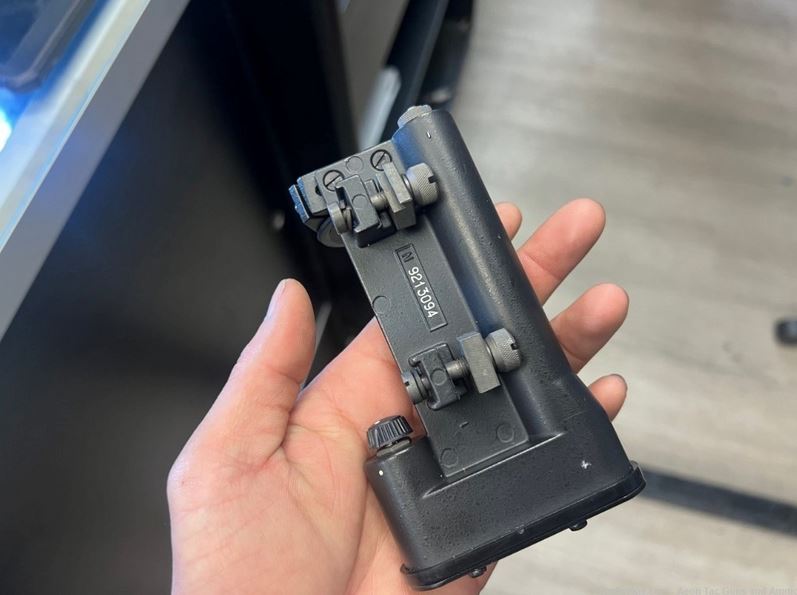

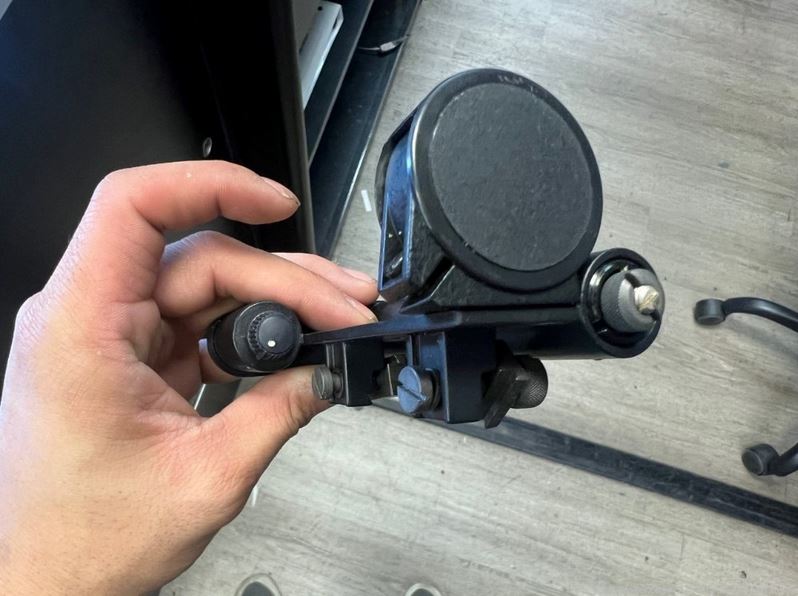

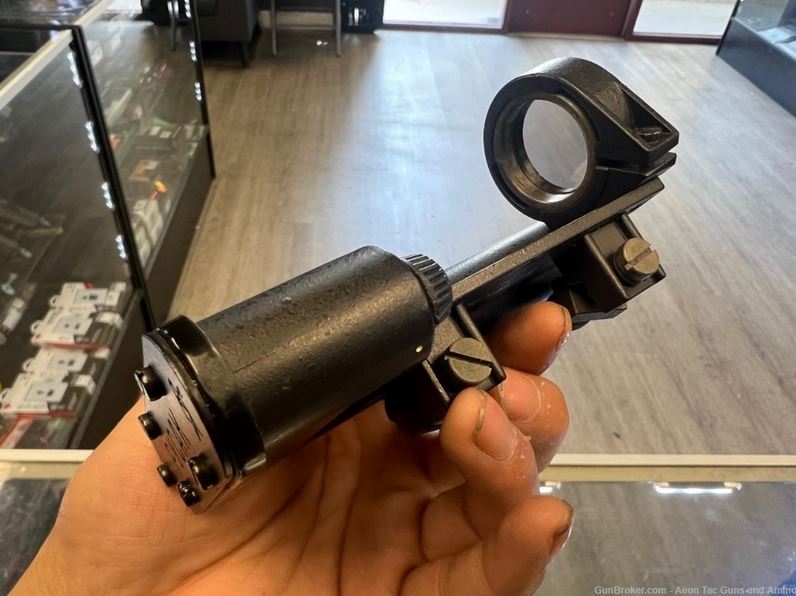

9213094 domestic

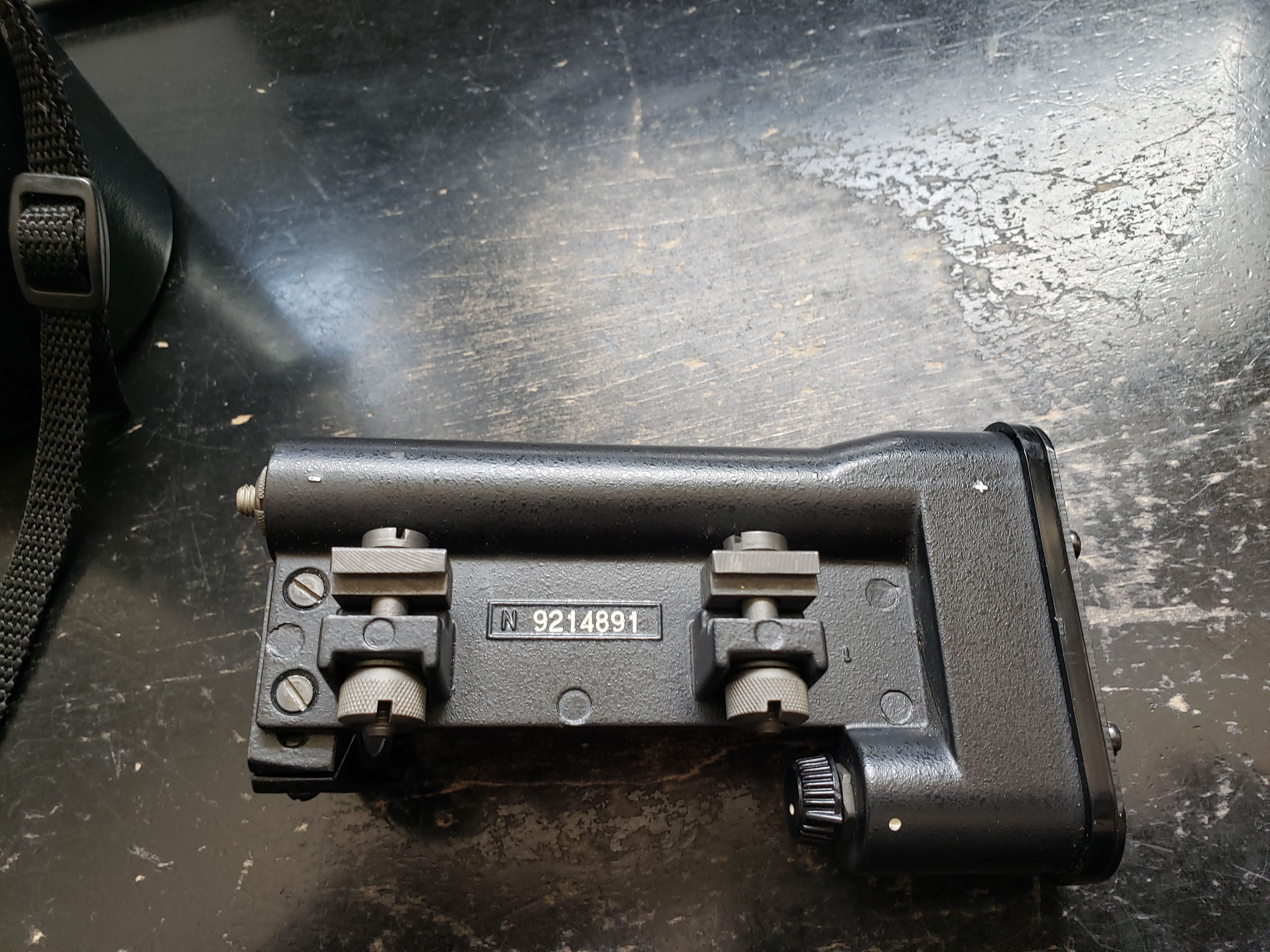

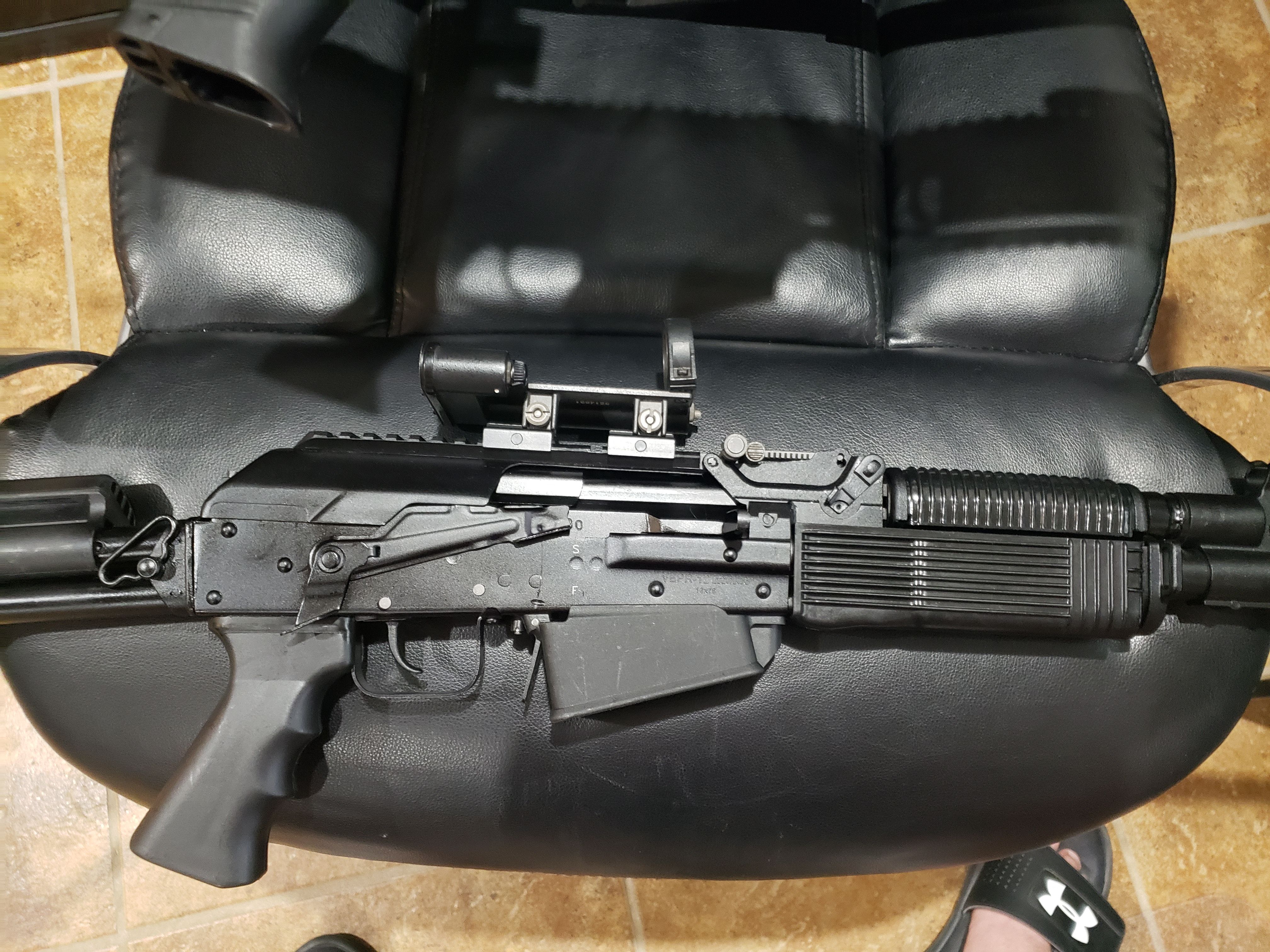

9214891 domestic
9216492 missing photo

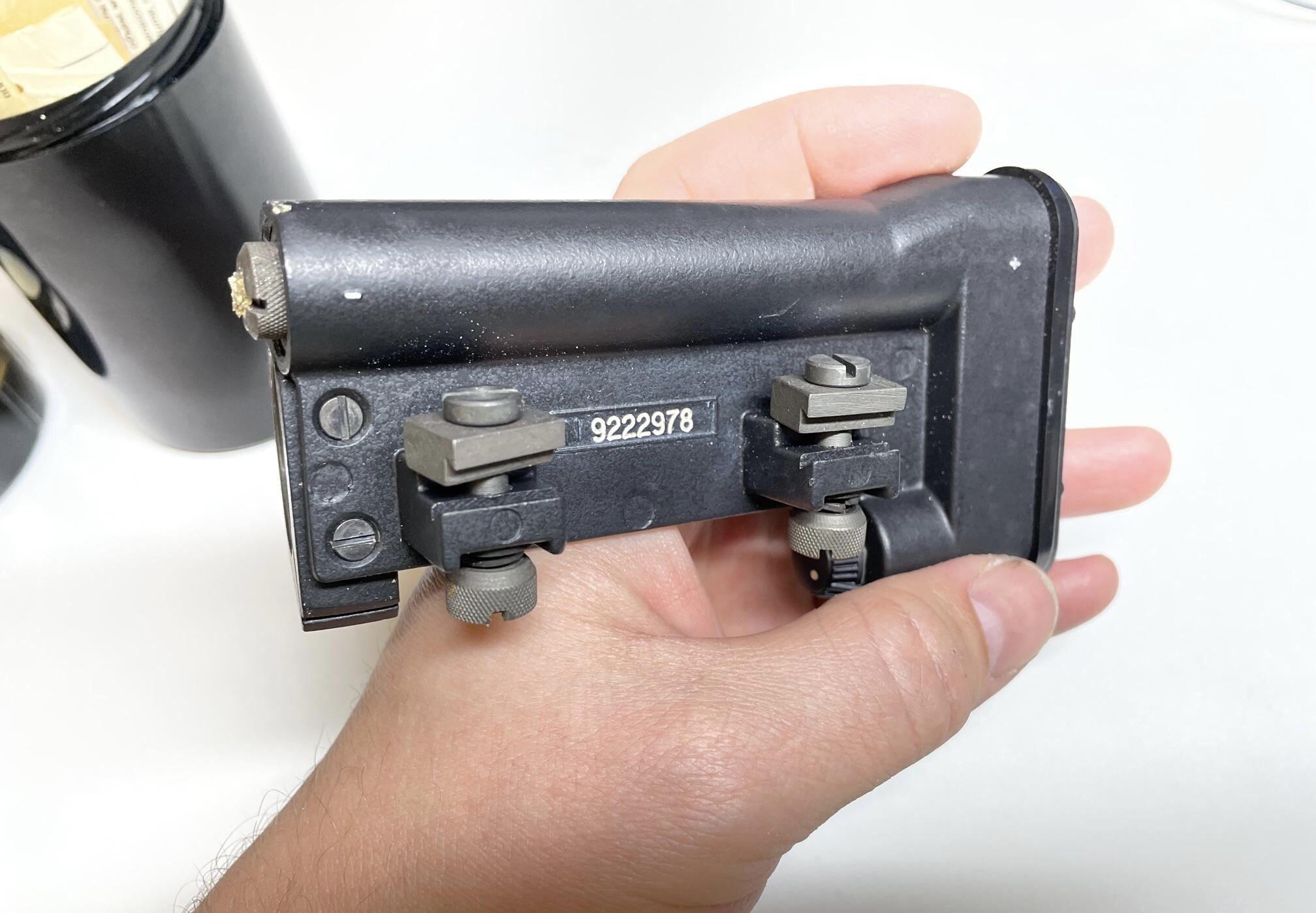

9222978 domestic
9228988 domestic

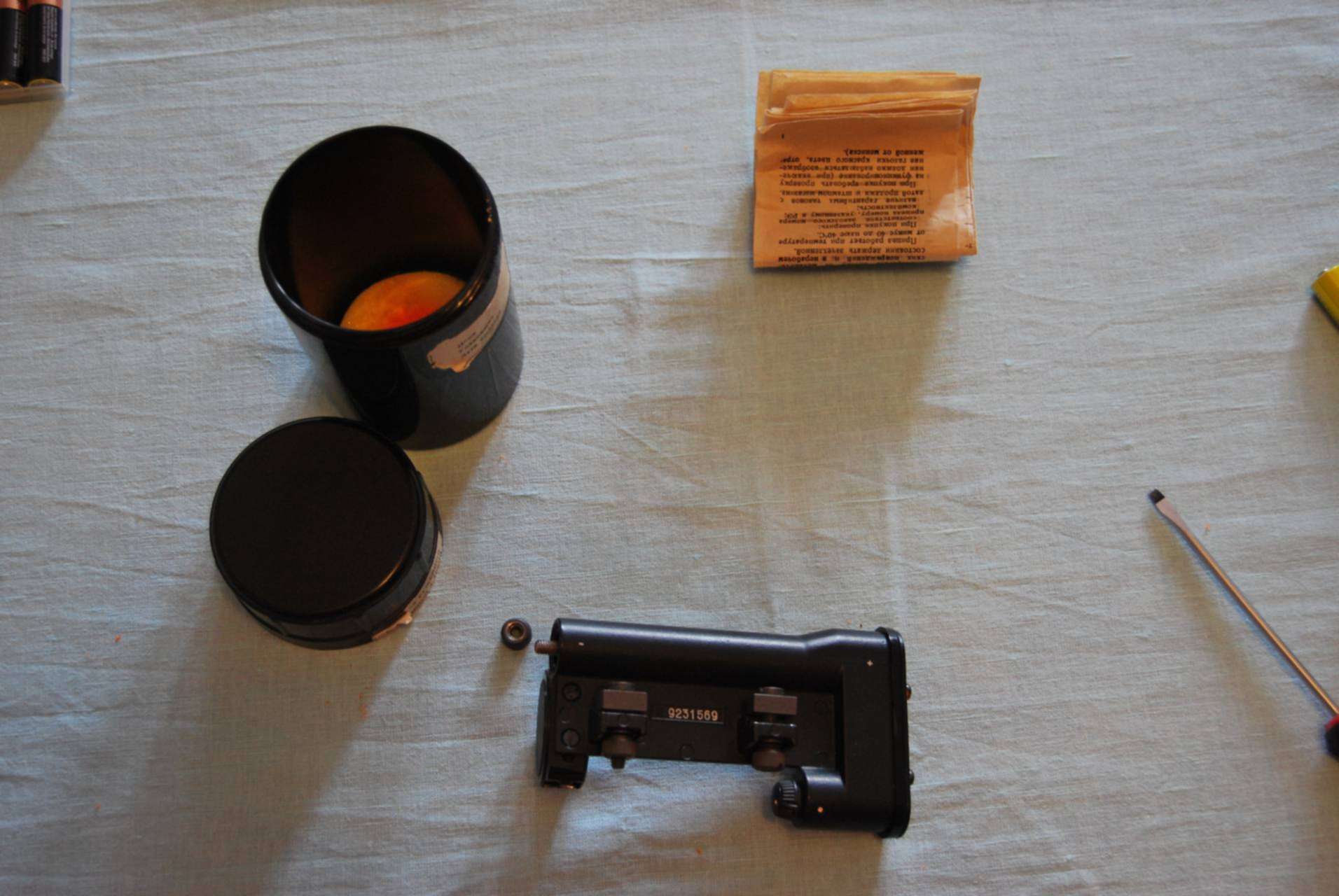

9231569 domestic

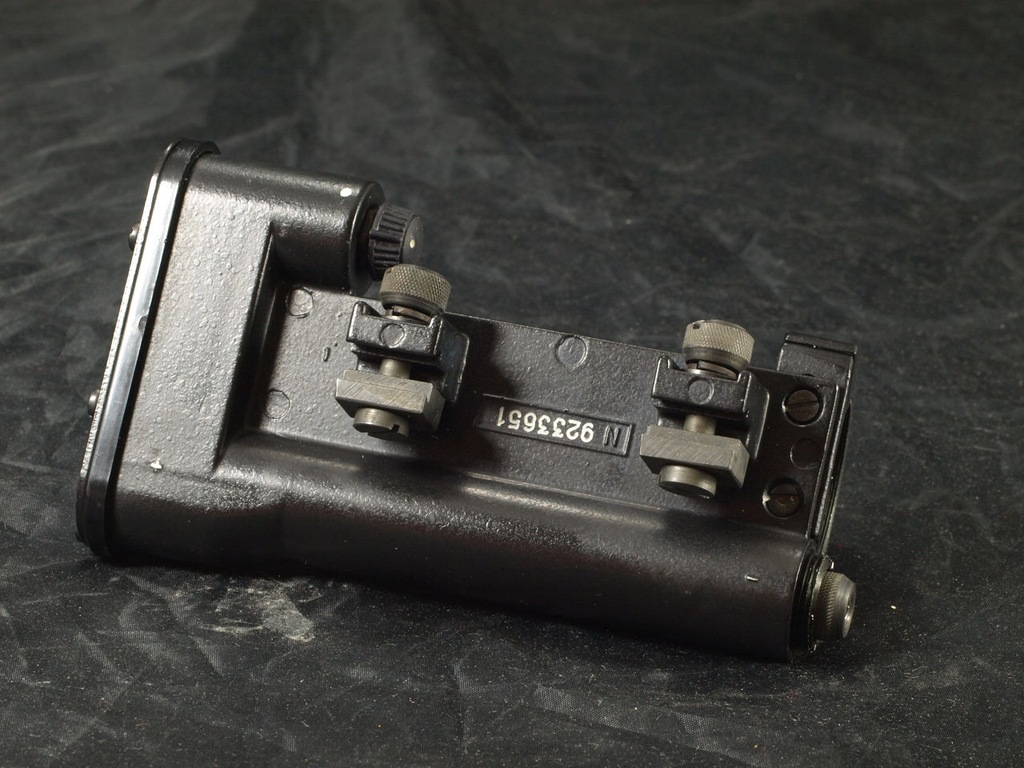

9233651 domestic

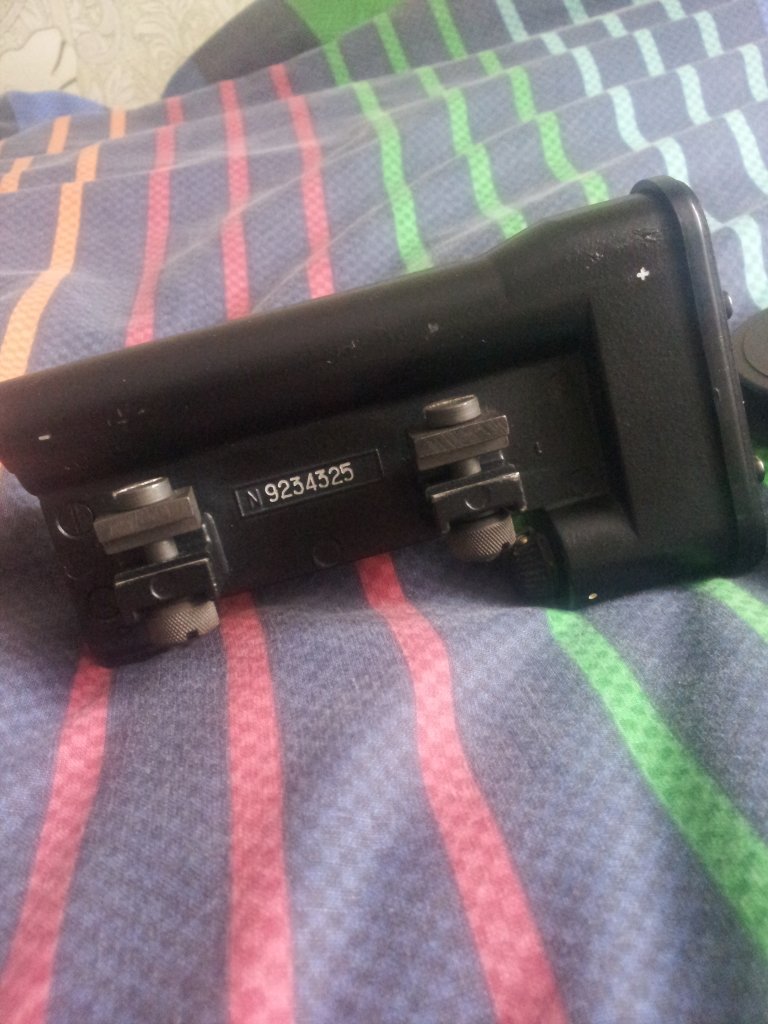

9234325 domestic

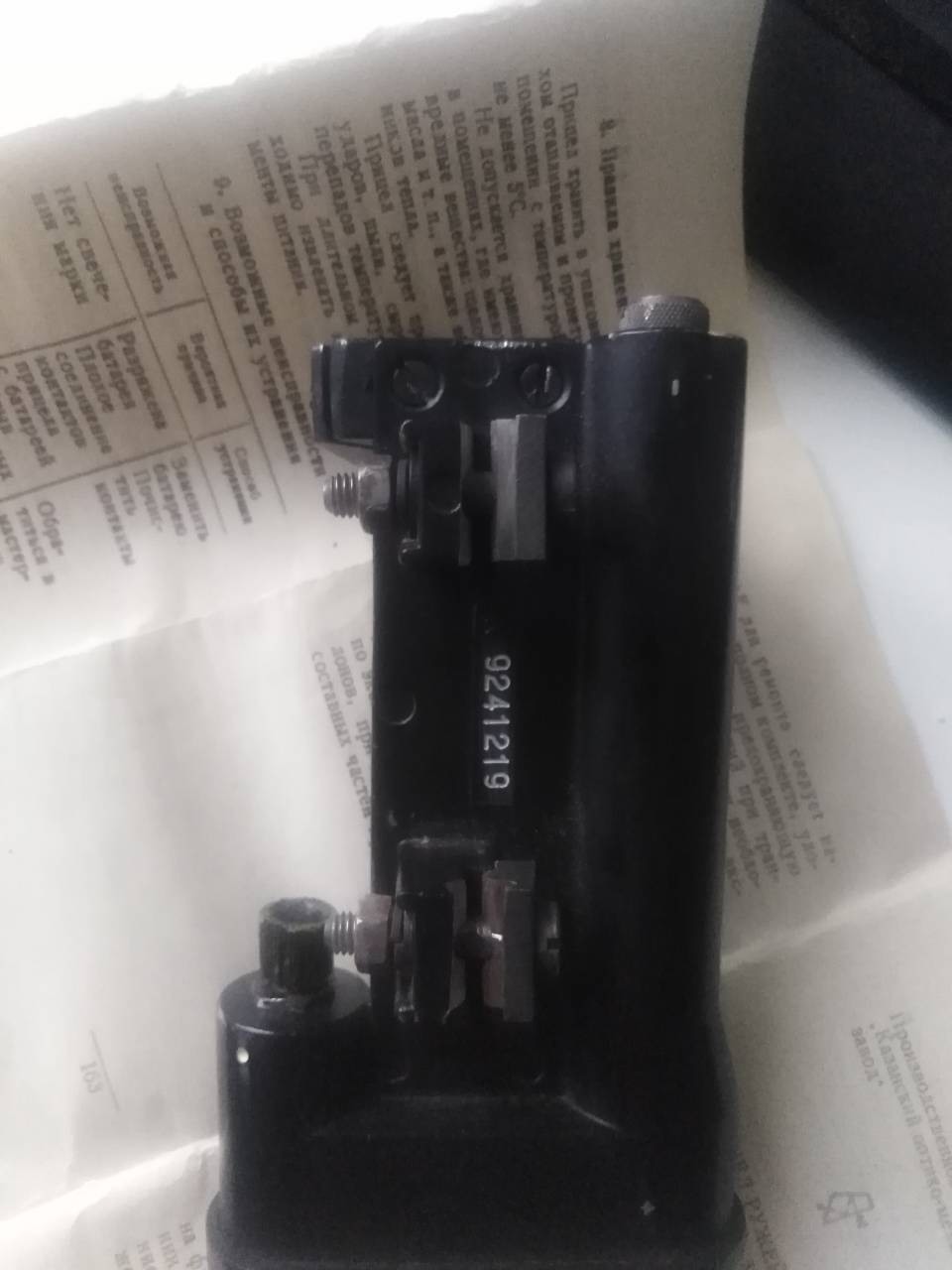

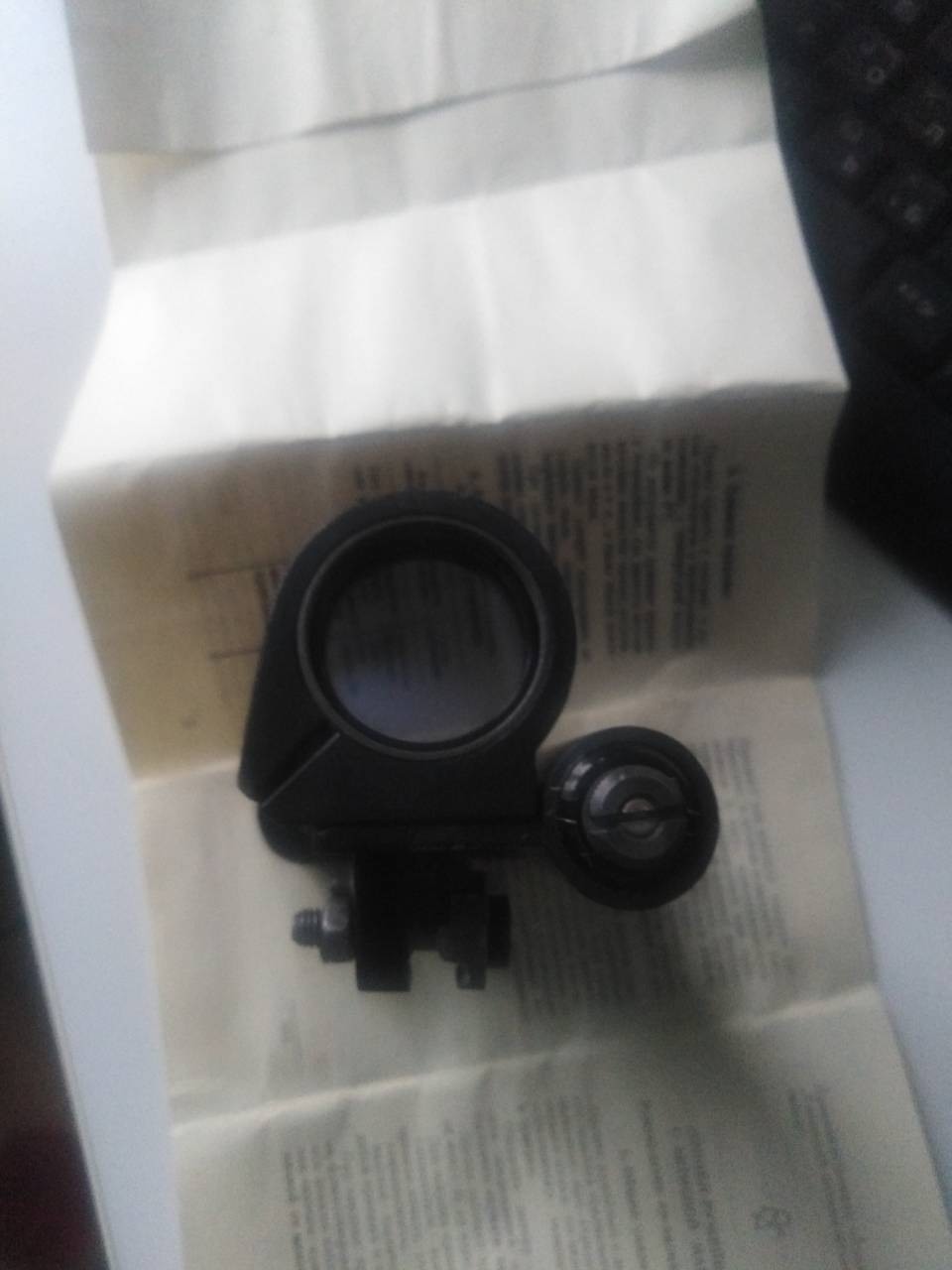

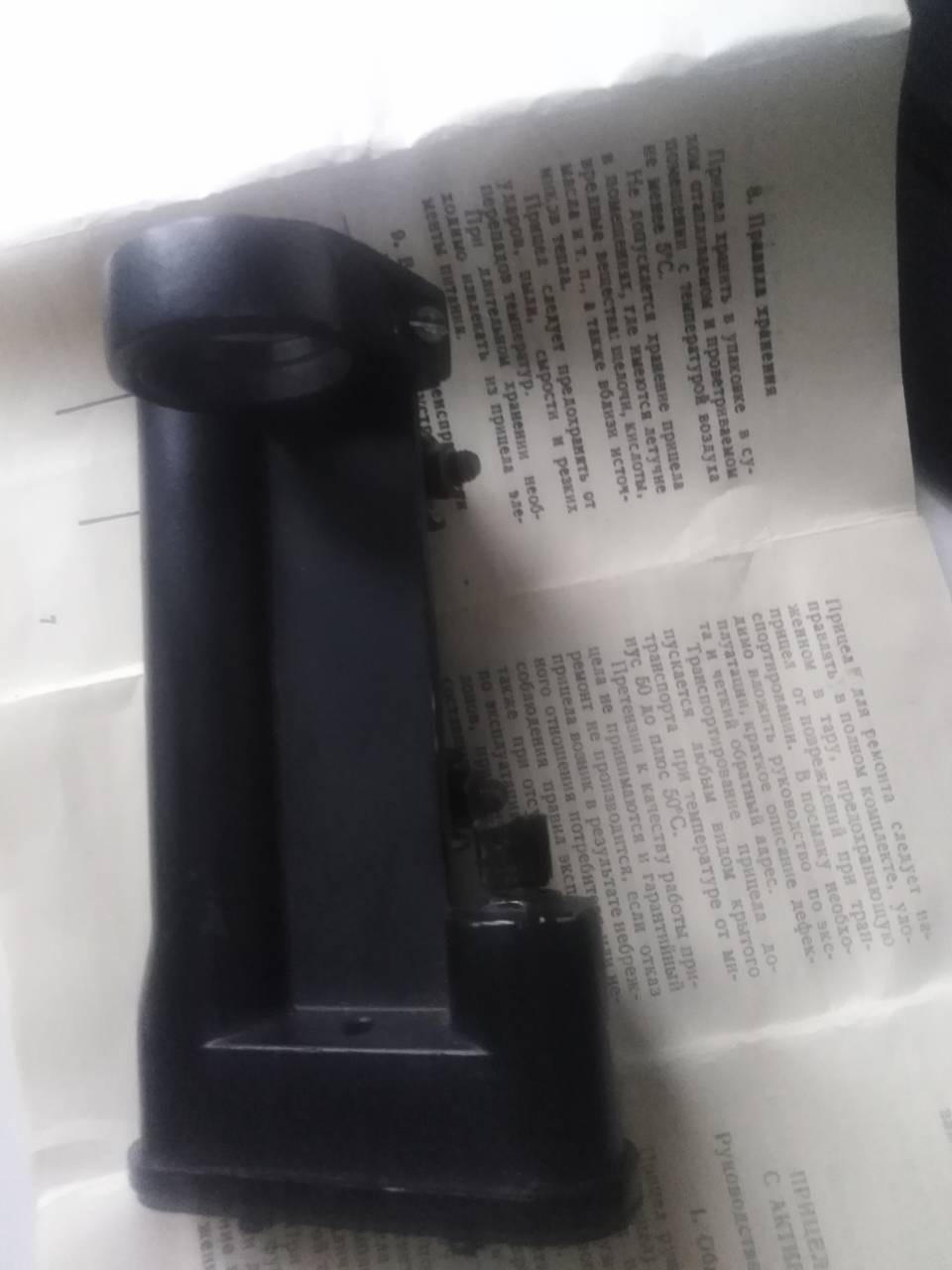

9241219 domestic

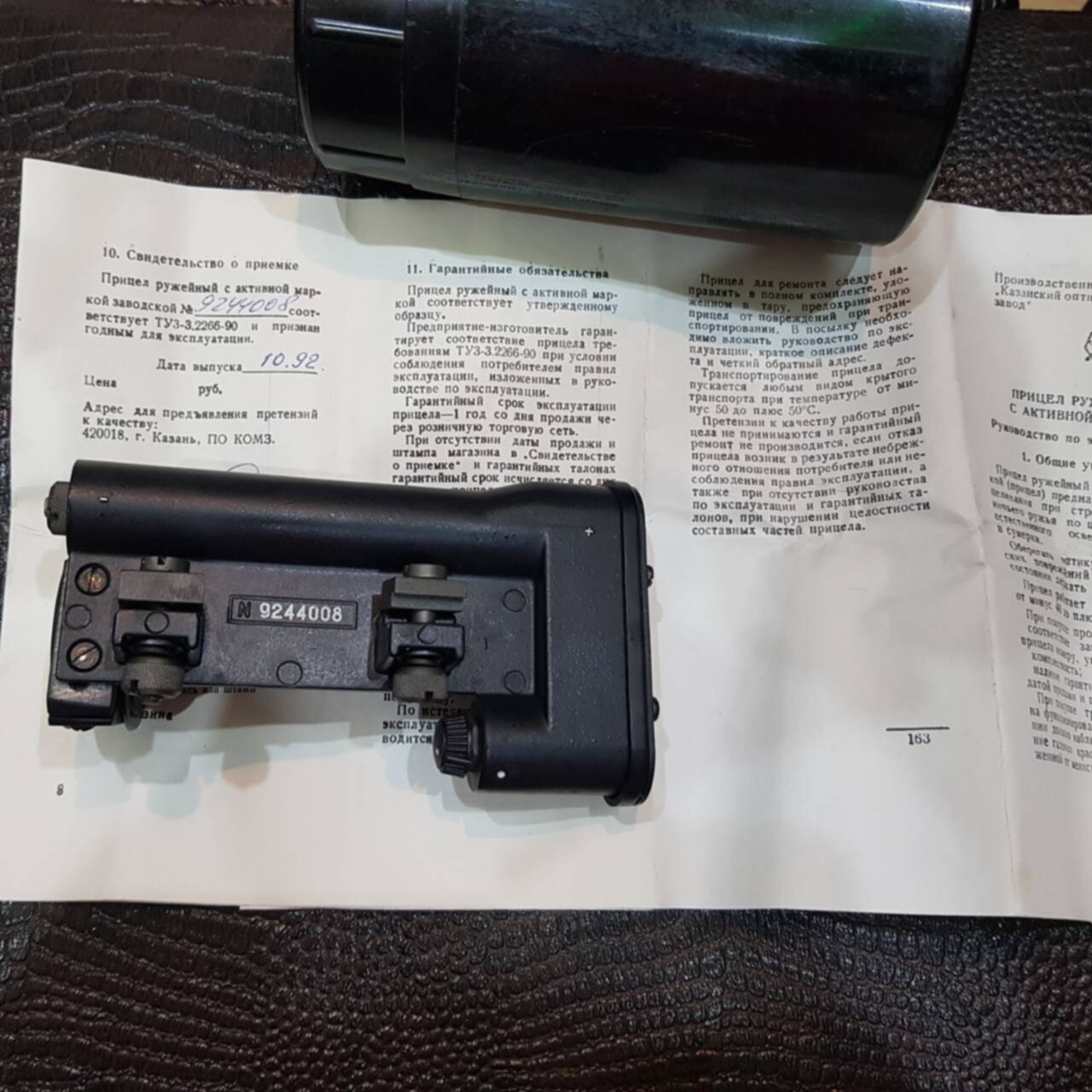

9244008 domestic Manual inspection date is October, 1992.

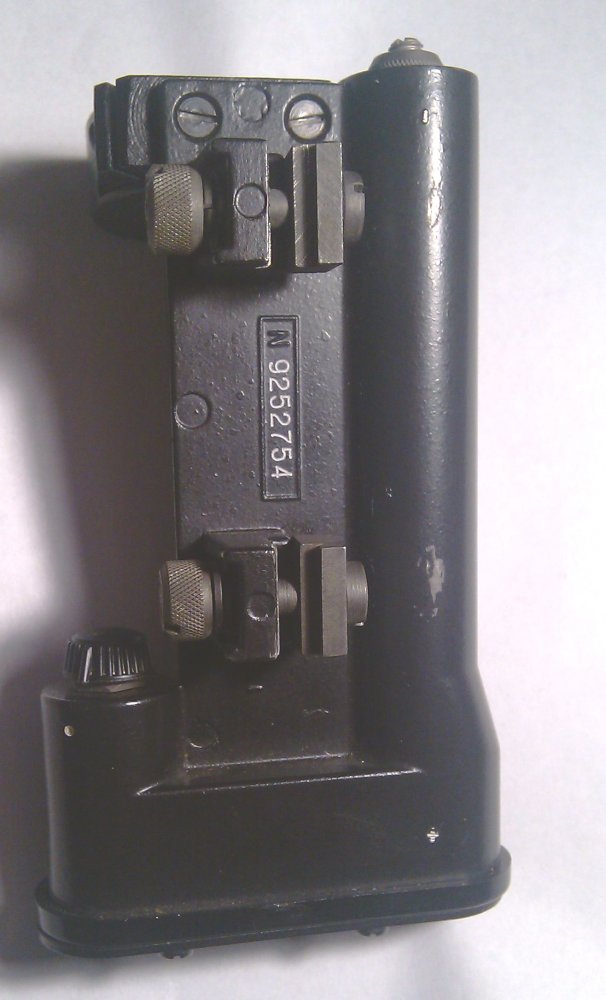

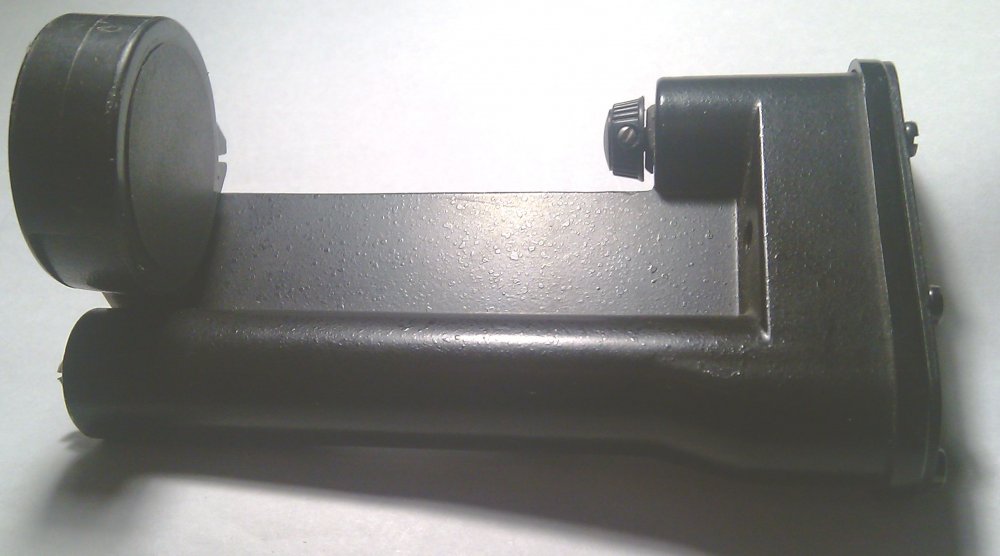

9252754 domestic

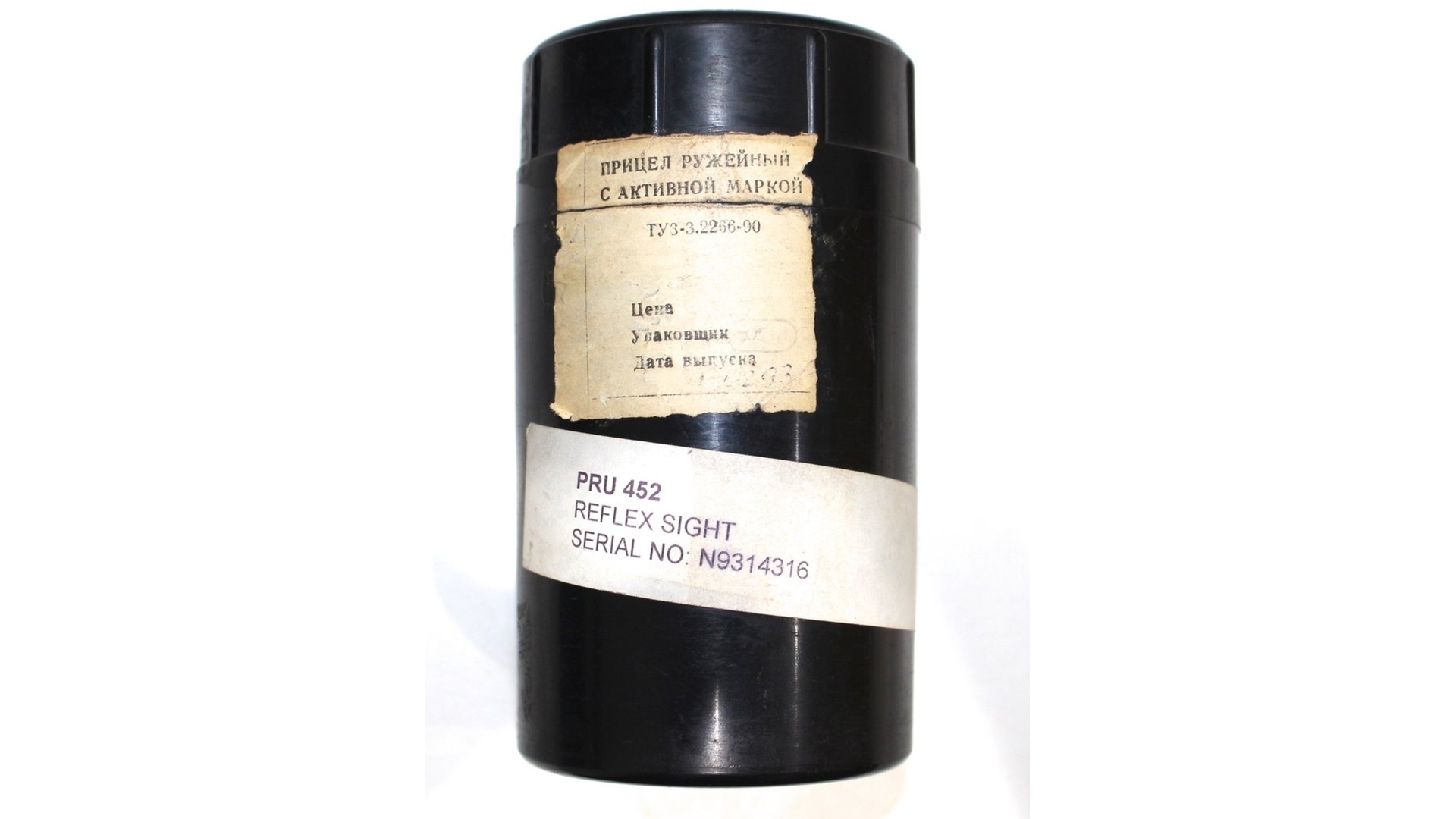

9314316 Only have image of case. Sticker is unique, possibly added by importer.

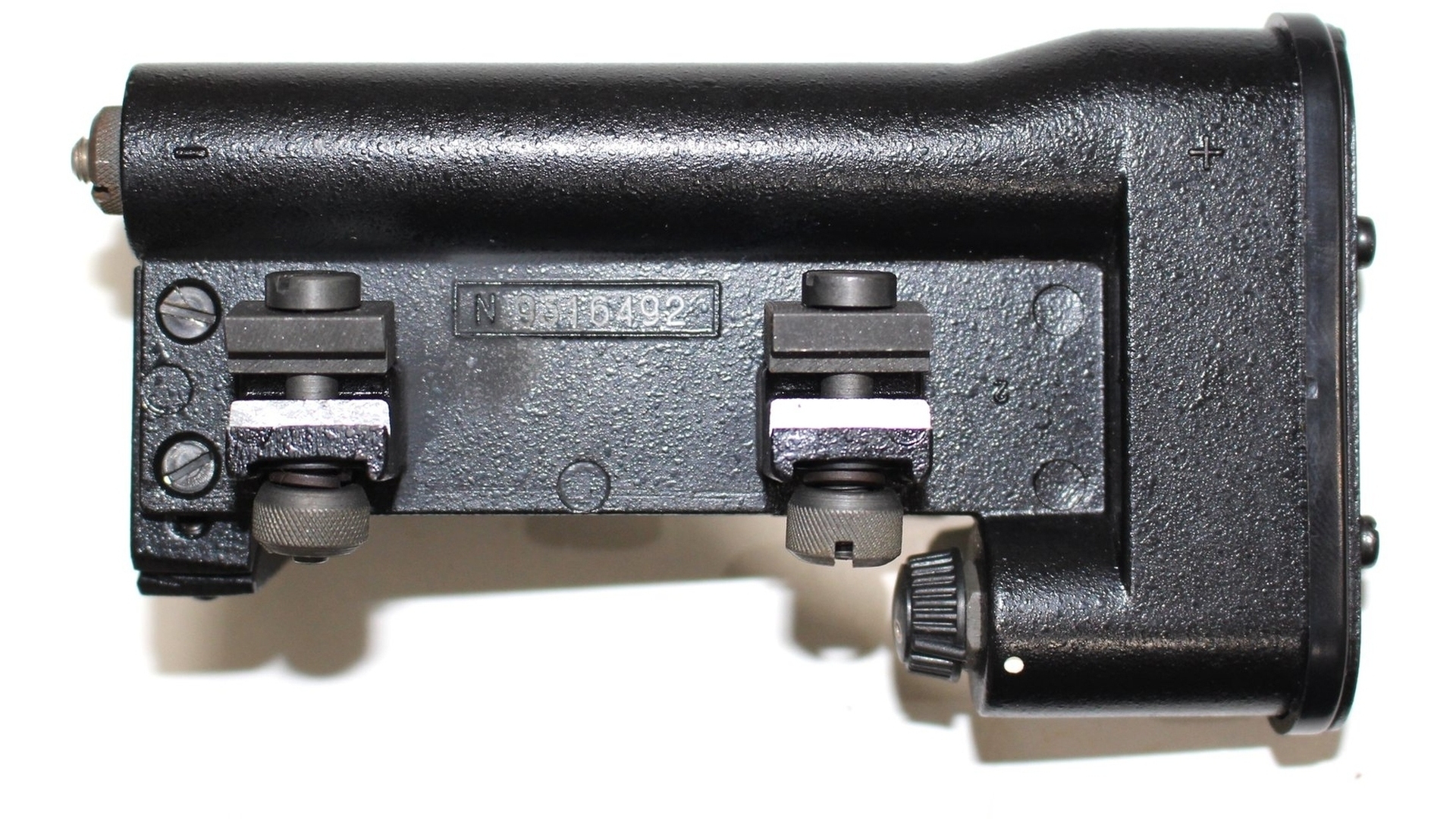

9316492 domestic

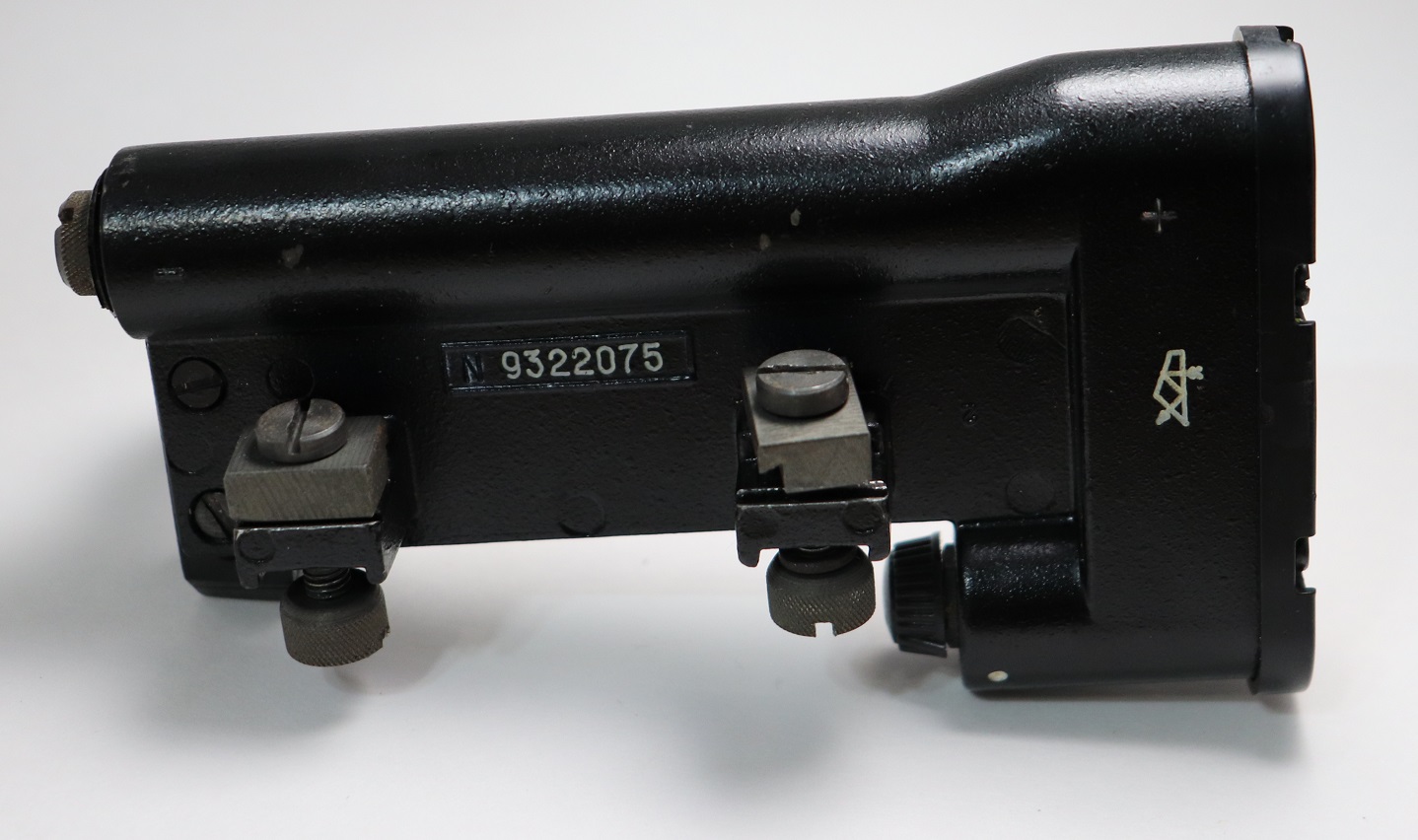

9322075 export

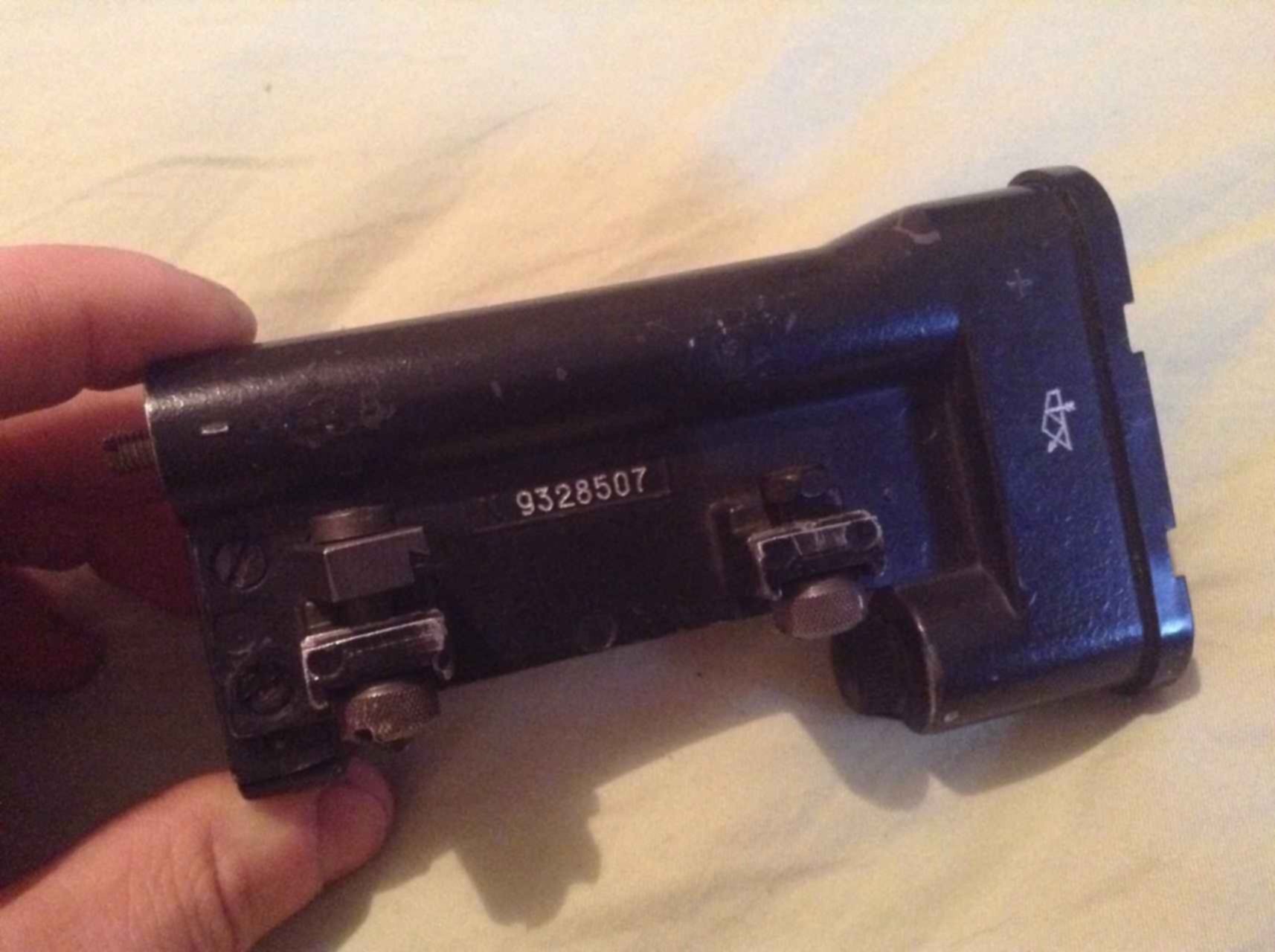

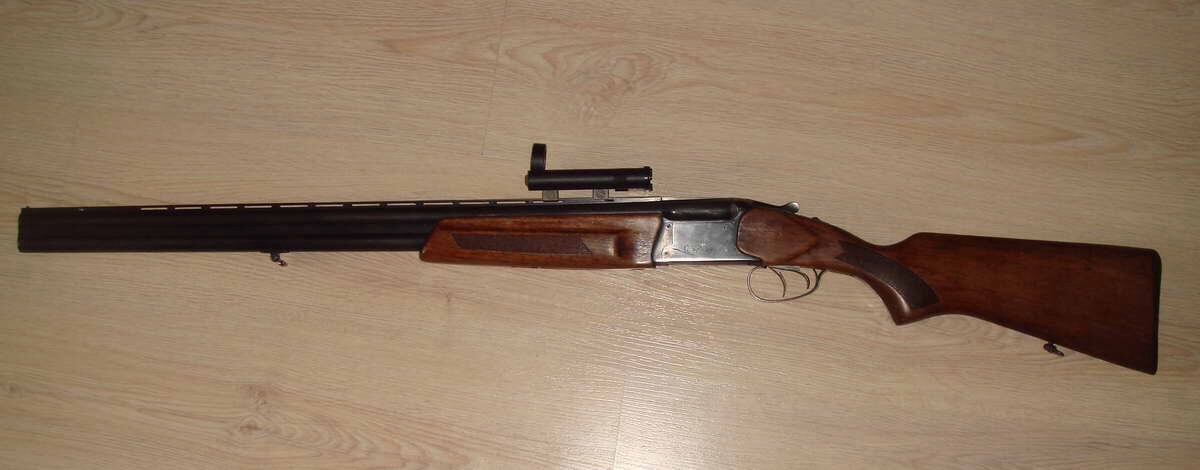

9328507 export Export model, listed for sale used in Russia on forum.guns.ru.

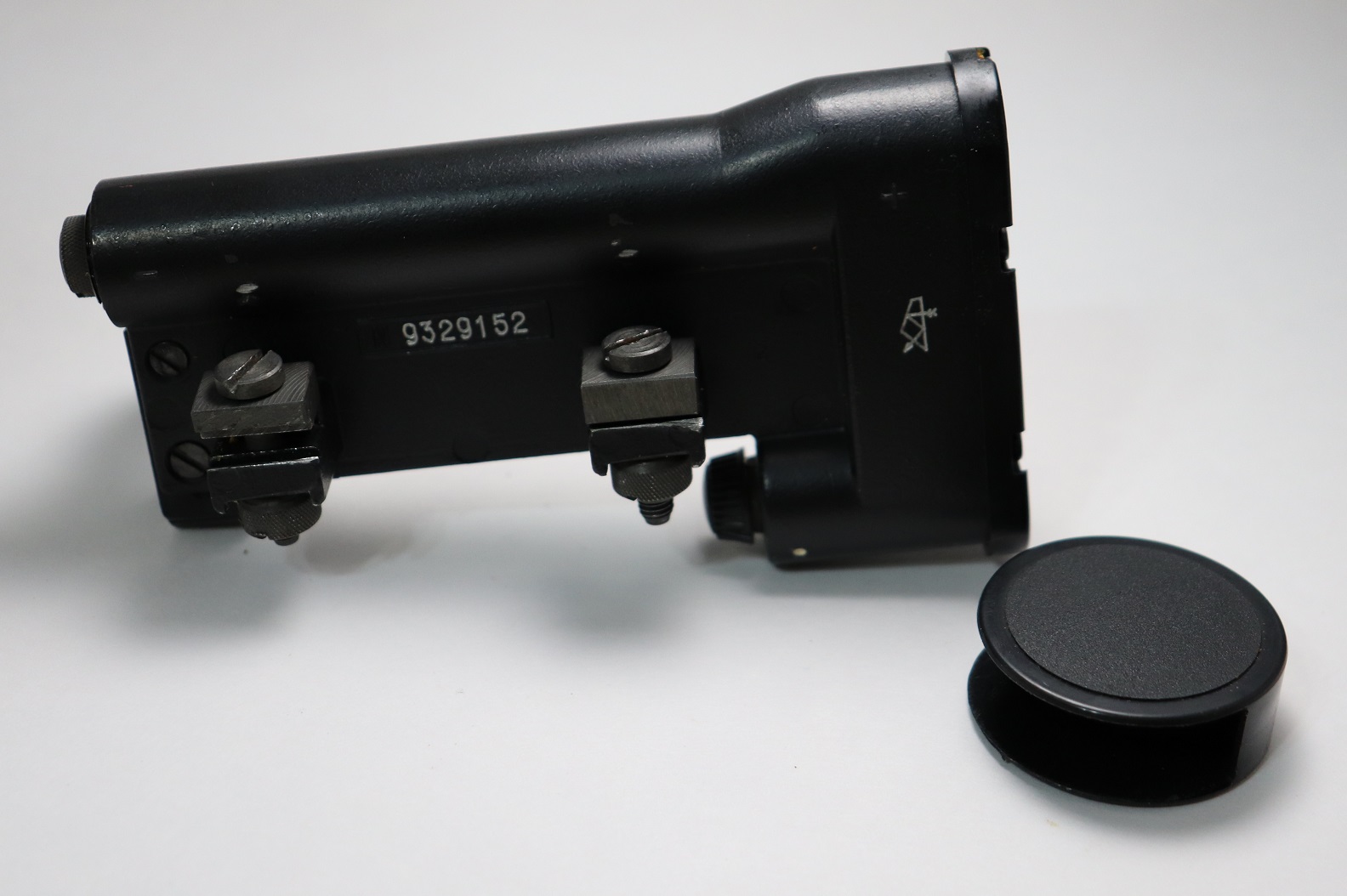

9329152 export

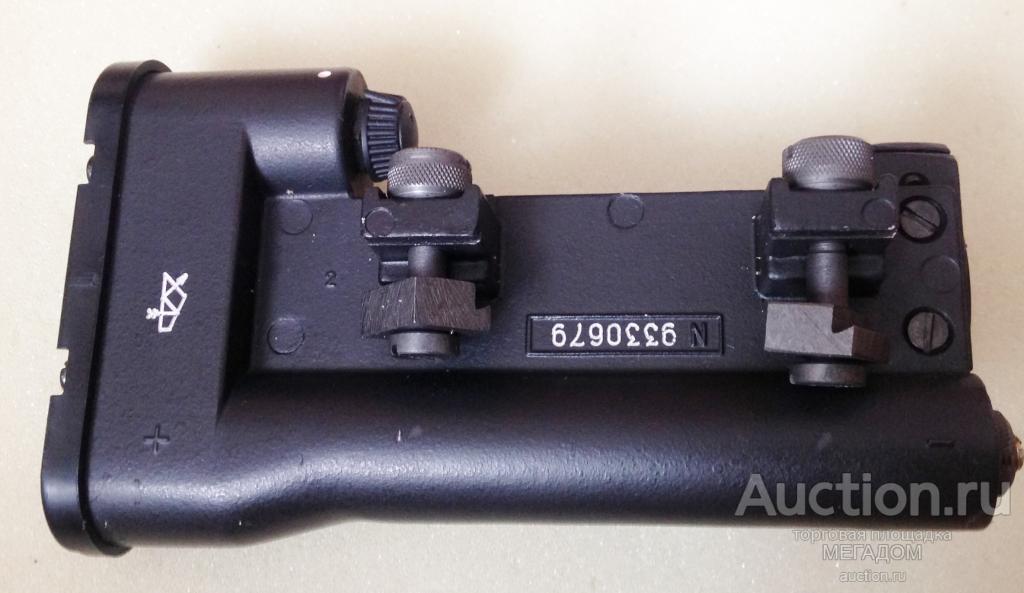

9330679 export

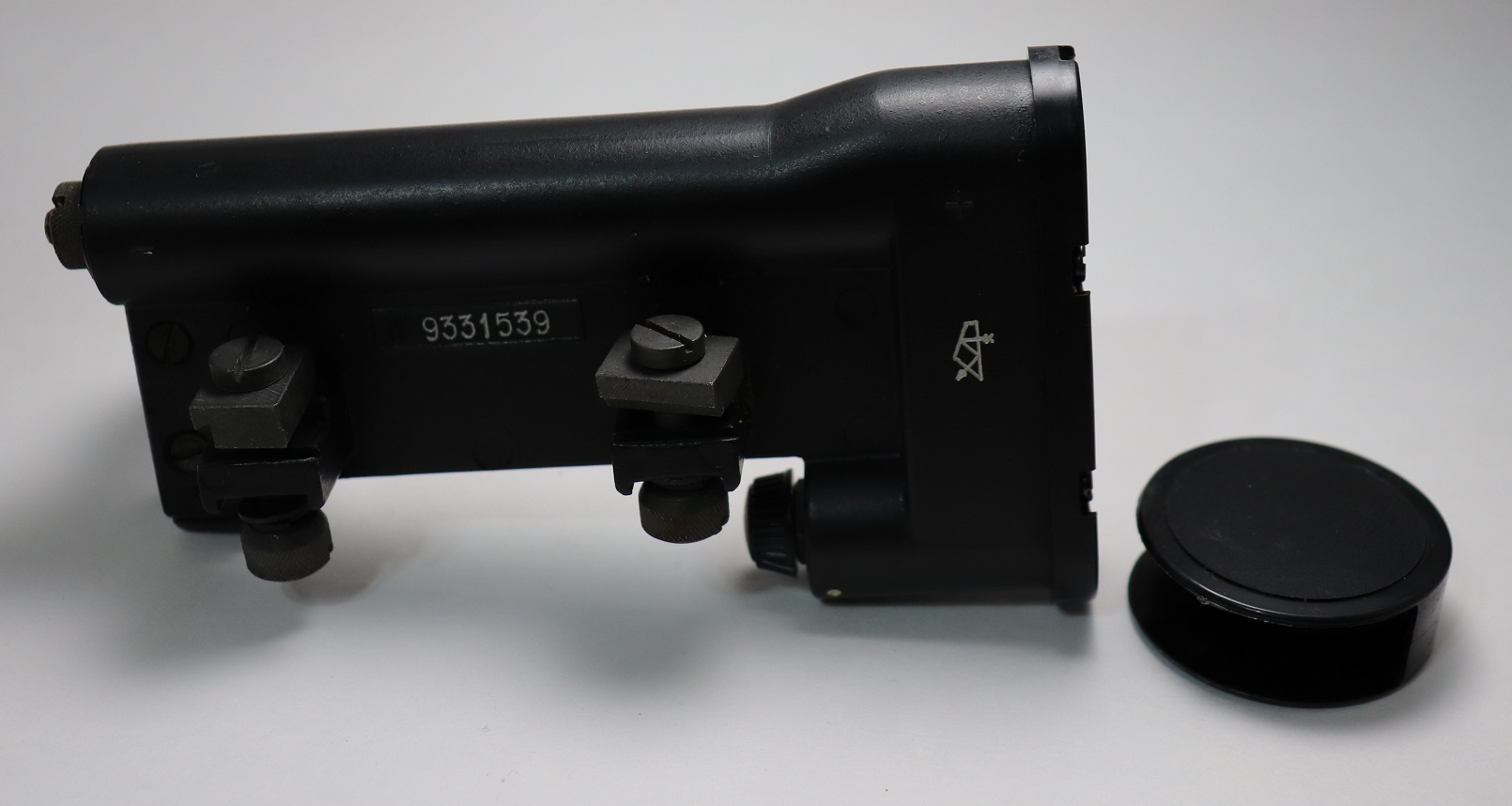

9331539 export

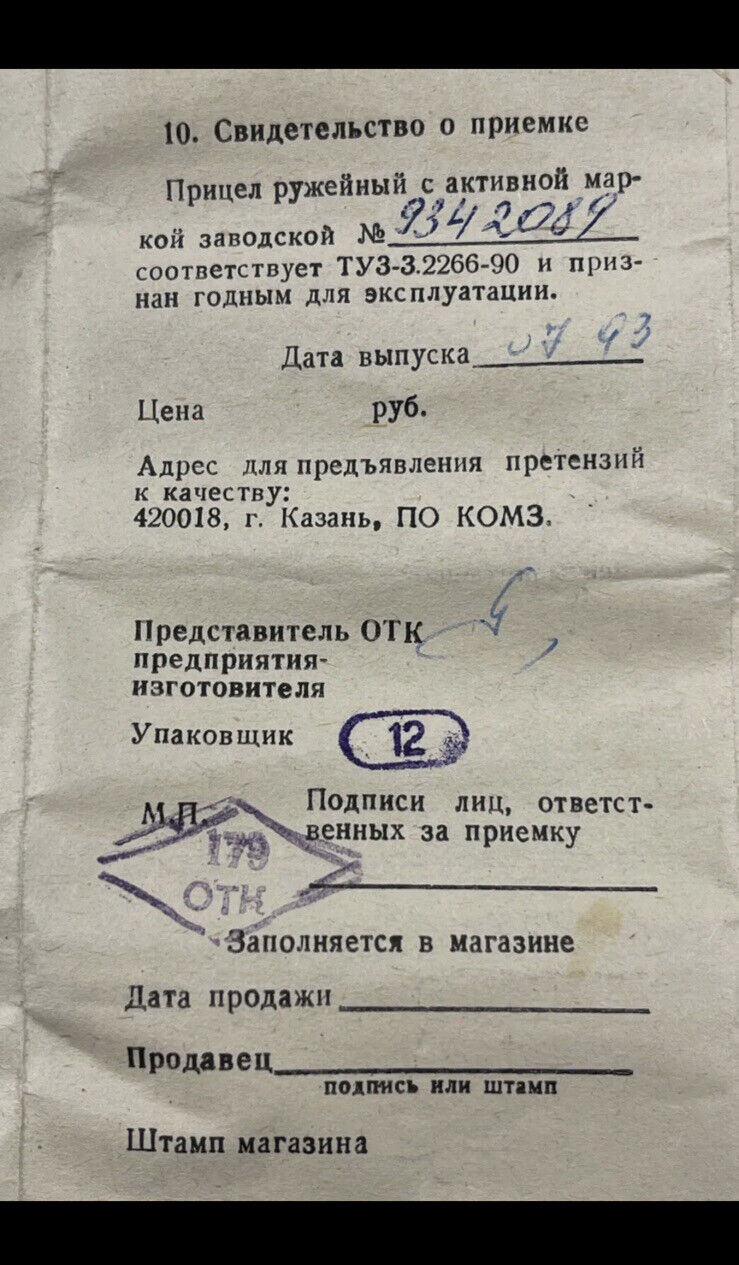

9342089 export
941754 export Hard to see serial, last digit looks to have have been edited out.

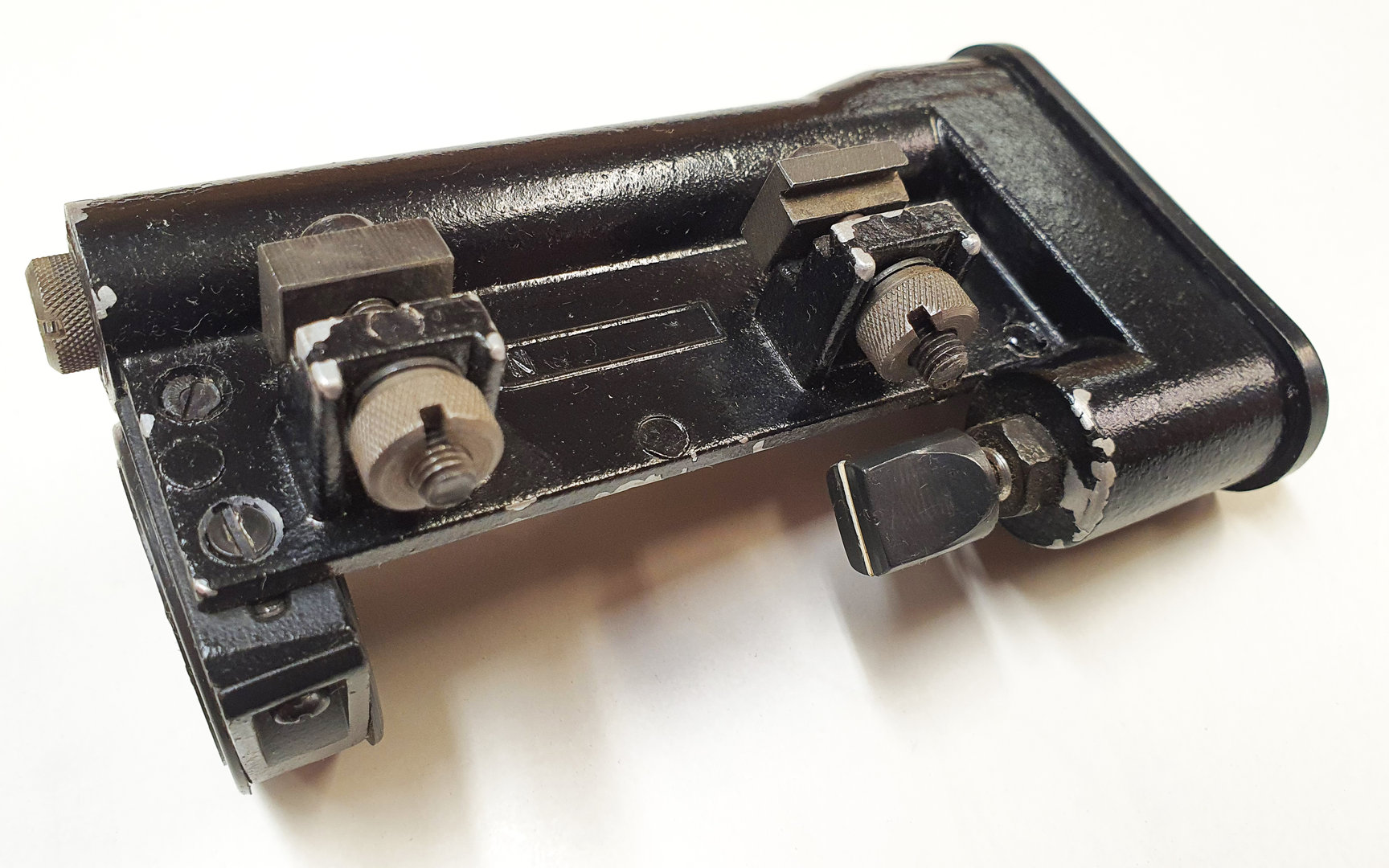

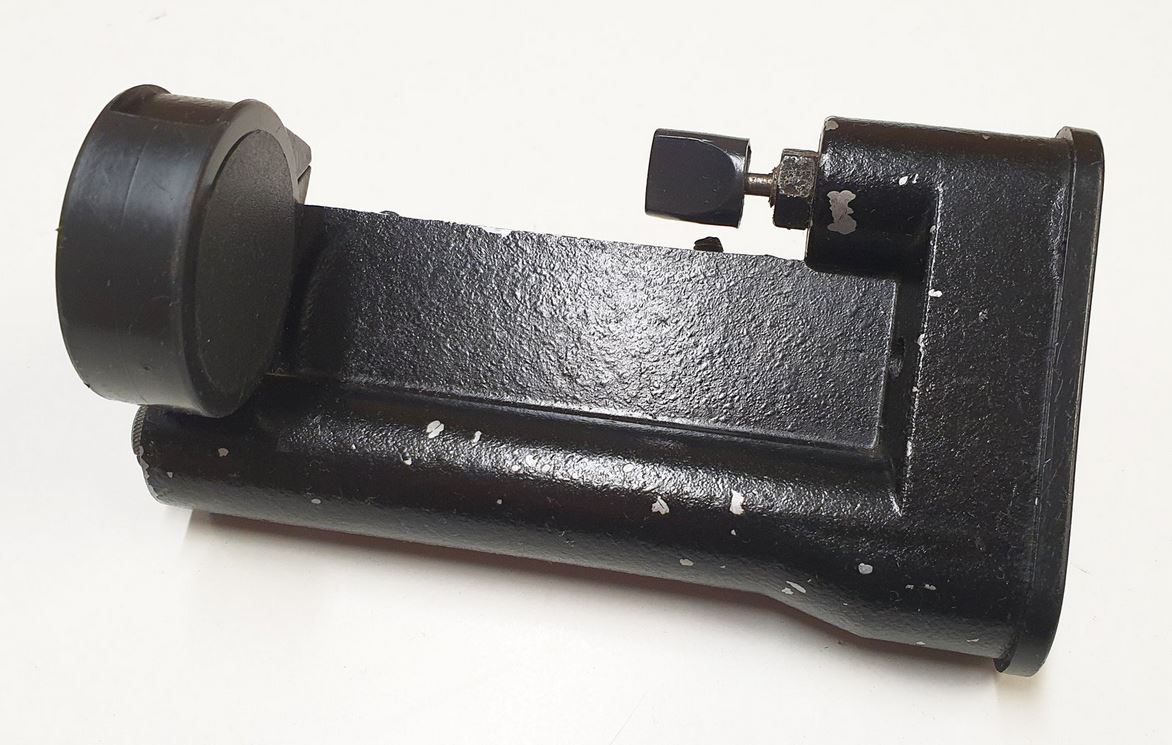

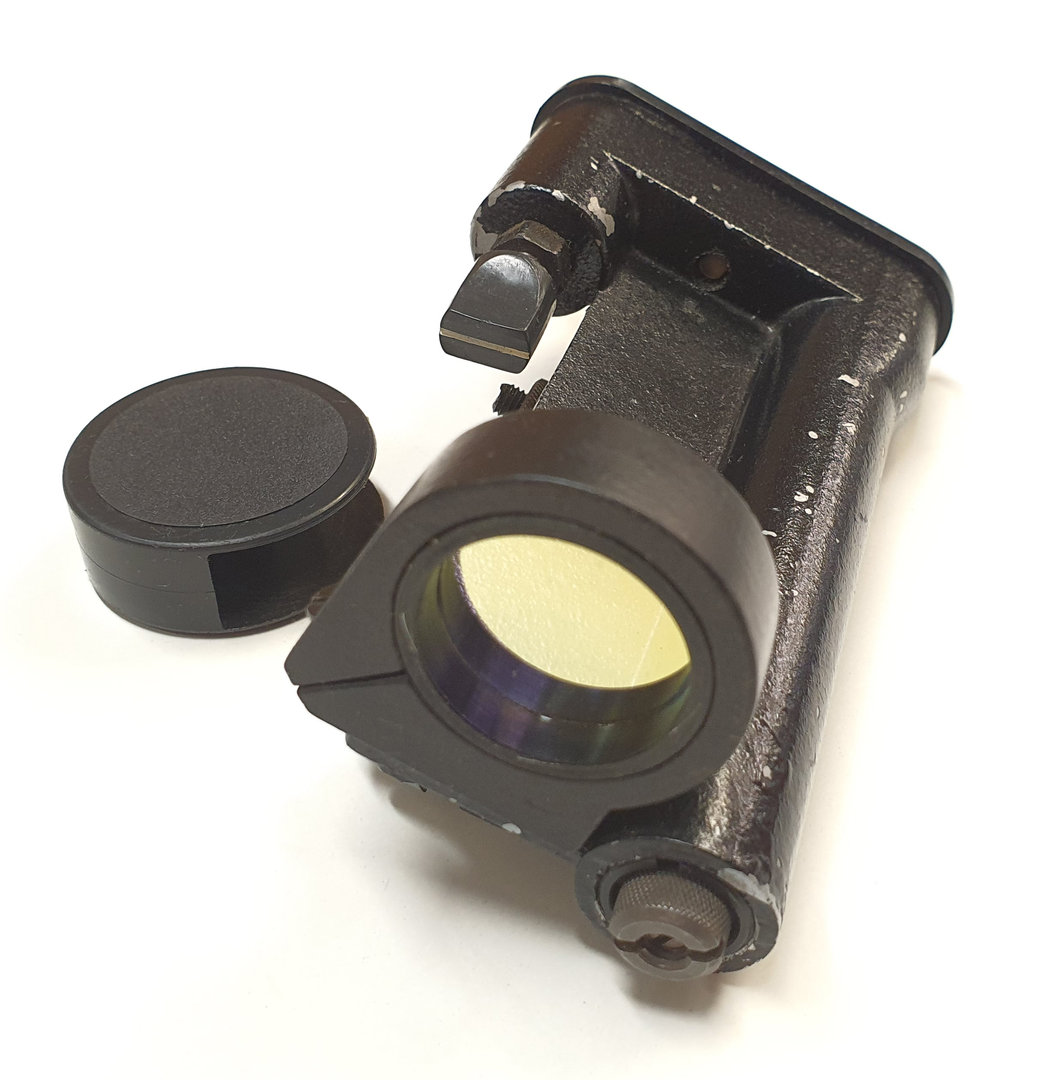

NO SERIAL domestic Note non standard on/off knob.
